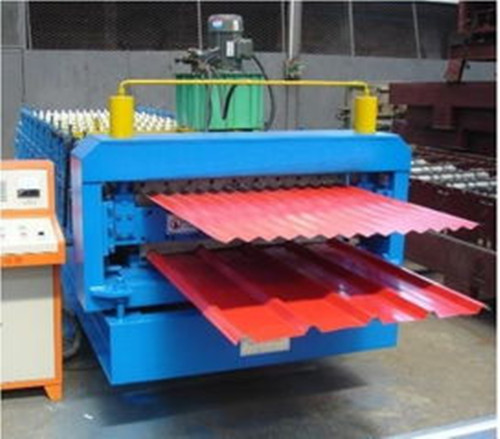

High Speed Double Layer Roll Forming Machine 4 Kw Hydraulic System.
Product Description
(1). Brief Introduction
The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,
ancient architectures and modern villas.
(2). Working Flow of Roll Forming Machine

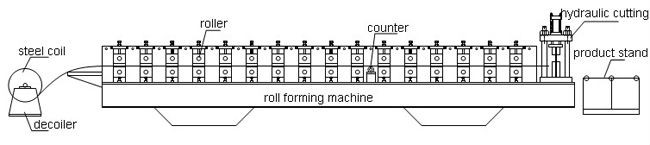

Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter
(3). Technical Detail
A. General
| Suitable Material | HRB60 or equivalent |
| Material Thickness | 0.2-0.6 mm |
| Dimension | About 7.2*1.3*1.1m(L*W*H) , as per the drawing |
|
Length of the Sheet |
You can set the length according to your need. It is controlled by PLC which can ensure the accuracy of ±1mm. |
| Cutting |
Automatically stop and cutting when it comes to the set length. |
B. Components Details
| Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate |
16mm. We use thicker plates to ensure stability of our products. |
| Forming Steps | 11-16, according to the drawing. |
| Shaft Material | Φ70 mm, high grade 45# steel. |
|
Treating process: tempering- finish turning, high rigidity, hard to deform. |
|
|
Cutting Blade Material |
Cr12, hardness HRC60-62. |
| Treating process: heat treatment- plane abrasion- wire electrode cutting. |
C. Electric Components
| Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
| Screen | 7 inch touch screen, easy to operate. |
| PLC | Delta DVP14ES |
|
Well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
|
| Frequency Converter |
Delta VFD-M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
|
Length Measurement Device |
Omron, made in Japan. |
| It features with high accuracy and stability. |
Company Information
Cangzhou Kingter Roll Forming Machine Co., Ltd. is a professional roll forming machine manufacturer.We provide an extensive line of products, including roof and wall panel machine, tile roof machine, purlin forming machine, shutter door machine, floor decking machine and other associated equipment. offer excellent service in addition to quality products, which have made us get a great number of satisfied clients all over the world.
