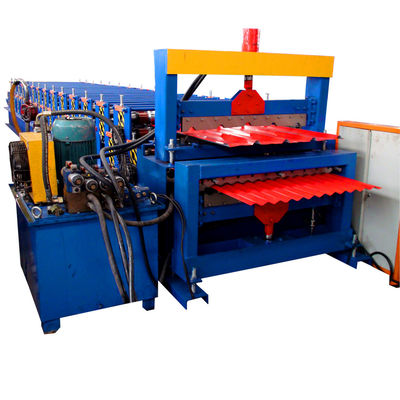

Double Layer Roofing Sheet Roll Forming Machine Galvanized Trapezoidal Shape
Machine Components

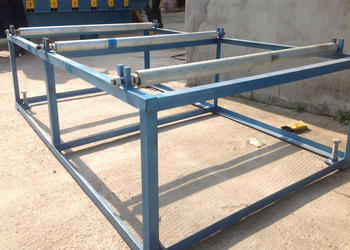

Decoiler-----------------------1set
Roll Forming Machine------1set
Cutting Device---------------1set
Hydraulic Pump--------------1set
Control System--------------1set
Output Table-----------------1set

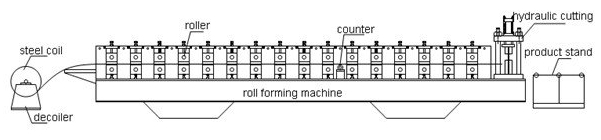

Working Flow
Decoiler--Feeding--Roll Forming--Cutting--Output Table
roll forming
| No. | Spc. | |
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | 410mm |
| 3 | Rollers | 15rows |
| 4 | Main power | 4kw |
| 5 | Hydraulic | 5kw |
| 6 | Thickness of the plate | 0.3-0.6mm |
| 7 | Productivity | 8-10m/min |
| 8 | Diameter of the roller | Φ70mm |
| 9 | Roller material | 45# steel polished and coated with chrome HRC55-60° |
| 10 | Shaft material | high grade No.45 steel after treatment |
| 12 | Blade material | Cr12 steel after treatment |
| 13 | Voltage | 380V 50Hz 3phases |
| 14 | Hydraulic | 40# |
| 15 | Processing precision | Within 2.00mm |
| 16 | Control system | PLC Frequency Control System with touch screen |

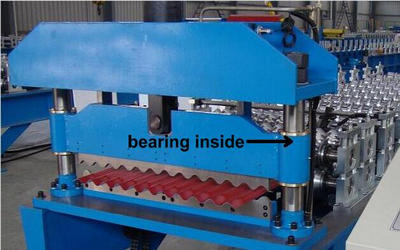

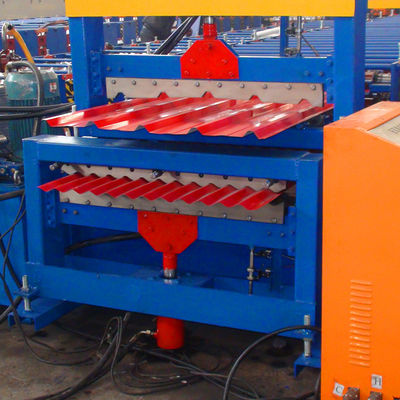

Cutting
| Type | bearing sliding type |
| Blade material | Cr12mov quenching and grinding |

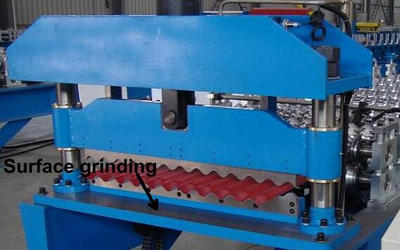

| Frame processing | the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Stacker
| Type | Manual |
Auto(option) |
| Length | 1.5m-2m | 6m or 12m |
PLC
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron
(4) Length Error: ±2mm
(5) Language: English and Chinese
(6) Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
