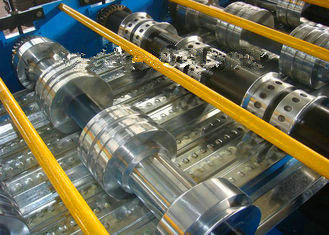

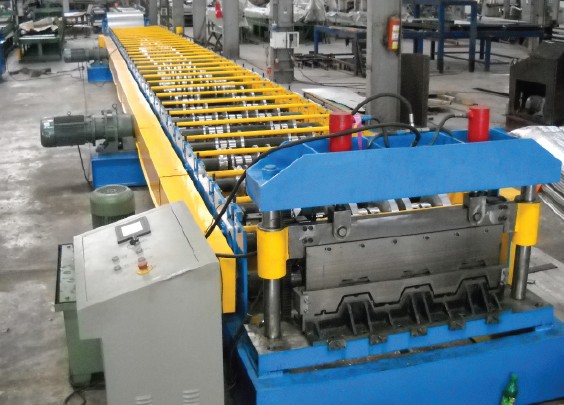

Galvanized Steel Floor Deck Roll Forming Machine , Floor Tile Roll Forming Machine
Working flow
Decoiler----feeding----roll forming----pressing----cut to length----output table
Main parameters:
1: Our advantageous:
1: Factory direct supply price.
2: We have exported for more than 10 years.
3: Our customer are from about 40 countries.
4: We have the professional research team. We can make the machine according to your requirement.
5: High-end and high-grade design 6: Free technical support and Freeaccessoies supply.
| Technical parameters: | ||
| 1 | Name of commodity & specification | XN- 720 deck roof machine with high quality low price |
| 2 | Main motor power | 11kwx2, 3 phase |
| 3 | Hydraulic motor power | 11 kw |
| 4 | Hydraulic Pressure | 18-20MPa |
| 5 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) |
| 6 | Control System | PLC Delta Inverter |
| 7 | Main Frame | 450mm H-Beam |
| 8 | Backboard Thickness | 22mm |
| 9 | Chain Size | 66mm |
| 10 | Feeding Material | color steel coils |
| 11 | Feeding Thickness | 0.8-1.2mm |
| 12 | Feeding Width | 1000mm |
| 13 | Effective width | 720mm |
| 14 | Productivity | 8-10m/min |
| 15 | Roll Station | 27 |
| 16 | Roller Diameter | 95mm |
| 17 | Roller material | 45# steel |
| 18 | Cutter material | Cr12 , quenched |
| 19 | Cr-Plating Size | 0.05mm |
| 20 | Overall Size | 15000×1200×1100mm |
| 21 | Total Weight | 19T |
| 22 | Components |
Manual Uncoiler-------------------1 set Guiding Platform------------------1 set Main Machine of Roll Forming--1 set Electric-Motor---------------------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set |
| 23 | Workflow |
Manual decoiling----feeding and guiding---- roll forming----cut to length----run out table |
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③ If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
FAQ
1) Q:Can you make machine according to my design?
A:Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.
2) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.
3) Q:What payment terms you accept?
A:Commonly is TT, 30% deposit and 70% before shipment, and sometimes we can consider more for you as per your request.
4) Q:What is the warranty for our machine?
A:We have one year guarantee, and provide whole life's technical support.
