Trapezoidal Roof Panel Roll Forming Machine 33ksi - 50ksi Yield Stress
Description of ibr sheet roll forming machine
| Machine description | Quantity | Delivery time | Container type |
ibr sheet roll forming machine |
1SET |
45 working days after receiving deposit |
20GP |
Components of ibr sheet roll forming machine
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | Set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | post cut | set | 1 |
| 6 | electric motor | set | 1 |
| 7 | output table | set | 1 |
processing flow of ibr sheet roll forming machine

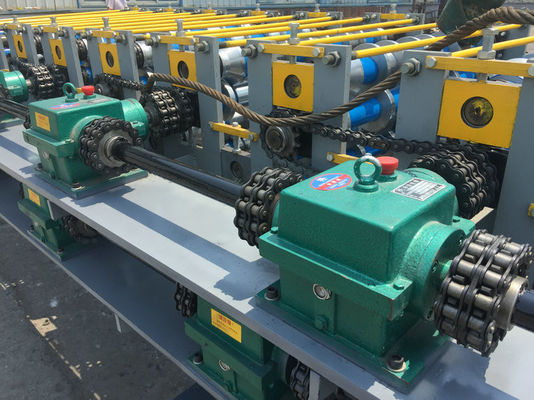

Details of ibr sheet roll forming machine
What is the specification of roofing sheets machine manufacturers?
| Item | Specification |
| name | roofing sheets machine manufacturers |
| Processing material | color steel,GI,PPGI |
| Processing thickness | 0.3-0.8 mm |
| Diameter of shaft | Φ80mm |
| Electric tension | as the customer's requirements |
| Roller | High grade 45# forged steel (plated chrome plating on surface) |
| coil thickness | 0.05mm |
| Processing precision | within 1mm |
| Transmission | By chain(1inch) link |
| Hydraulic cutting | Controlled by PLC |
| PLC | DELTA(TAIWAN) |
| Material of blades | Cr 12, quenching 58-62℃ |
| Switch | CHNT |
| roller station | to the finnal design |
Company Information
Cangzhou Kingter Roll Forming Machine Co., Ltd is a professional manufacturer and exporter of cold roll forming machines. All products comply with international quality standards and are greatly appreciated in markets throughout the world, such as Asia, Africa, Europe,South America, Australia and so on.
We specialized in manufacturingColor steel roll forming machinery,C U M Z purlin roll forming machine,Glazed tile roll forming machine,floordeck roll forming machine,shutter door roll forming machine,highway guardrail roll forming machine, downspout machine, welding pipe machine. For metal processing, we have slitting machine, cutting machine, decoiler, punching machine and others.
FAQ:
1. How to get a quotation of double layer metal roof tile making machine?
Give me the profile drawing and thickness ,this is the important.
Other spicific requirements is welcome,such as the speed,power and voltage you want.
2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.
3. How long the double layer metal roof tile making machinecould be made?
Normally speaking, double layer metal roof tile making machinecould be made without 45 working days. If you need double layer metal roof tile making machinein a hurry, we can make it for you less than a month.
