Metal Soffit and Wall Panels Machine
ZTRFM Flush Panels are designed for wall, fascia and soffit applications where a flush or flat appearance is desired. A rounded interlock leg and concealed fastening system improves the flush appearance while providing additional strength. Panels are factory-formed to length to minimize field cutting. ZTRFM Flush Panels are intended for use in vertical wall, fascia and soffit applications.
Petersen Flush Panels are formed on precision roll-forming equipment that includes in-line corrective levelers. Corrective leveling works to remove typical metal conditions including coil set, crowning and edge wave. In-line leveling capabilities allow us to work with source material that is “still-water” flat. The result is a panel that exhibits superior flatness.

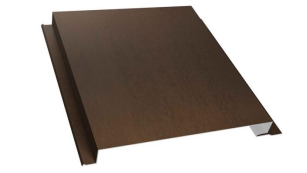

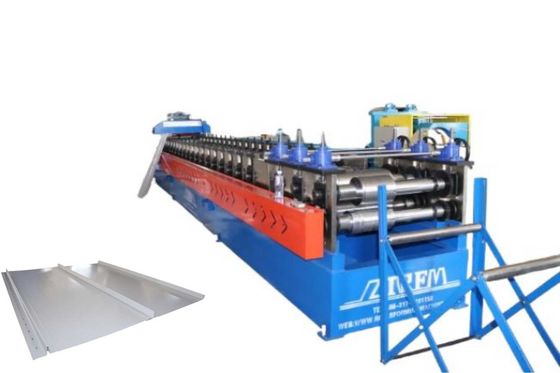

Here is one drawing profile and finished product:
Profile drawing for reference:

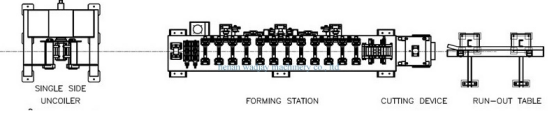

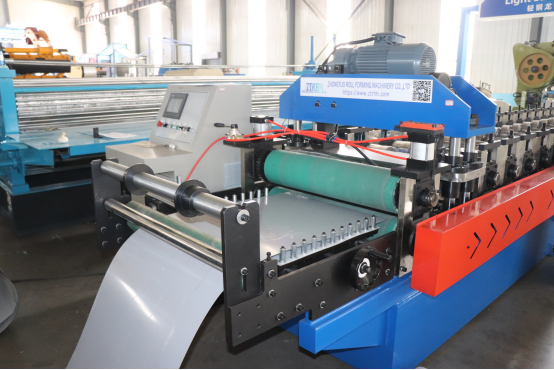

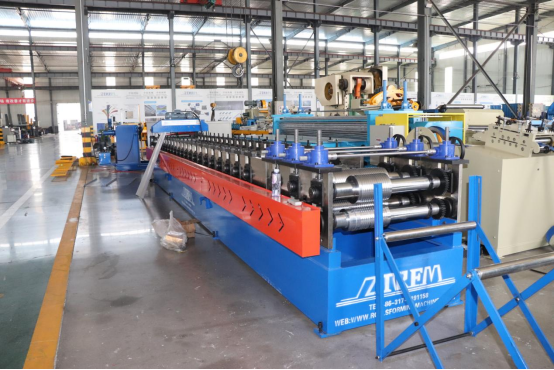

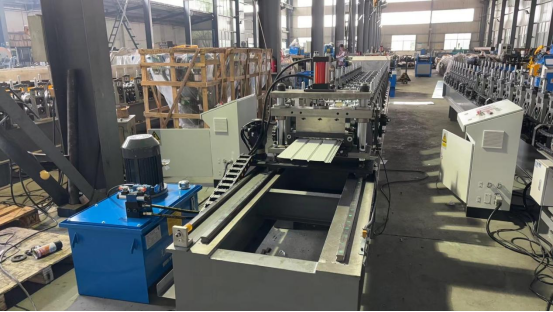

The Metal Soffit and Wall Panels Machine process :
Options & Accessories:
Digital Controller for fully automatic operation
“Quick Release” Seam Style Ribs

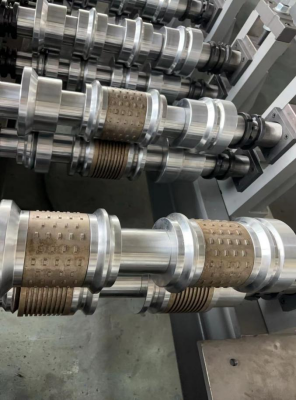

Perforation Die Attachment for Soffit venting
Power Upgrade to perforate and roll form 24 – 22 ga Steel – Required

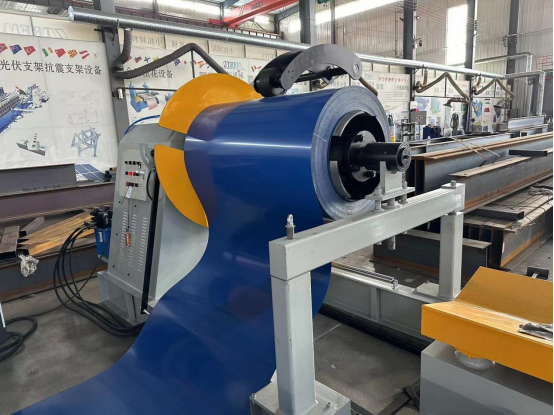

3,000 and 5,000 Lbs. capacity Decoilers
Machine Stand with Leveler Pads
