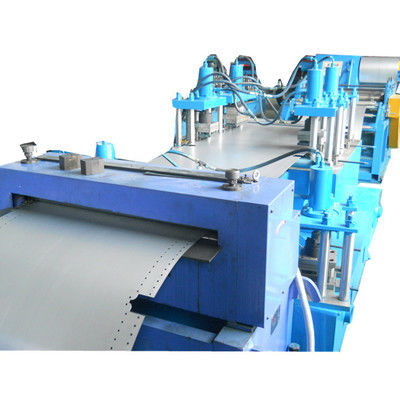

Adjustable Width Linear Shelf Panel Roll Forming Machine
Machine is designed to make shelf panels in batch automatically. This machine rollers can be adjusted to your drawing profile width and length. helf panel roll forming machine can be customized to your specification ideal for making different styles such as adjustable size, punching holes, embossing logo, making light or heavy duty panels and more…

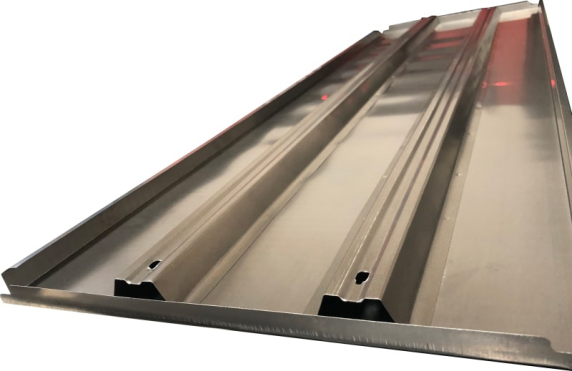

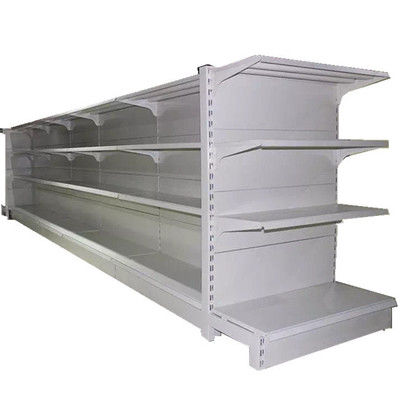

Sample picture for reinforcing shelf panel for heavy duty use

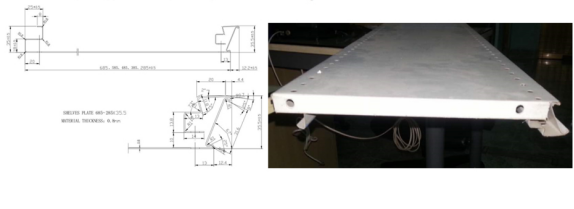

The below profile drawing sample picture shows there are 5 different sizes in width for the finish product:

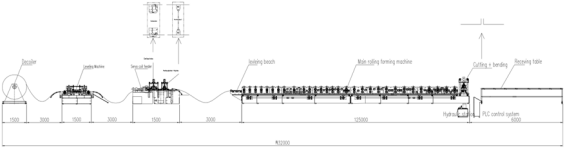

Machine Production Process
Decoiler -> Leveling -> Servo Coil Feeder -> Hydraulic Punching -> Leveling -> Rollers – > Cutting + Bending -> Collecting Table

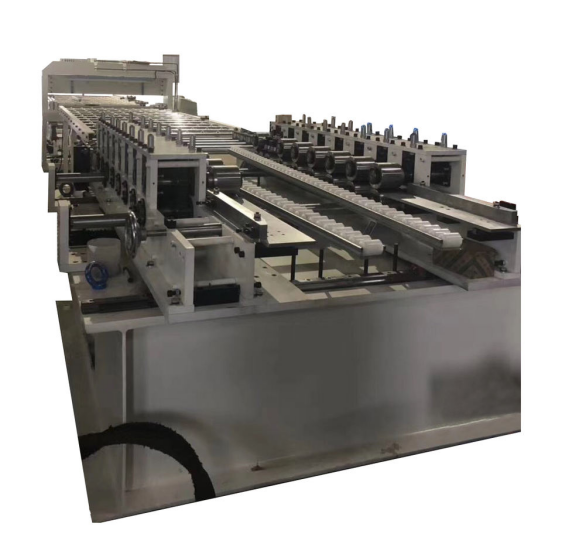

Adjustable Width Linear Shelf Panel Roll Forming Machine

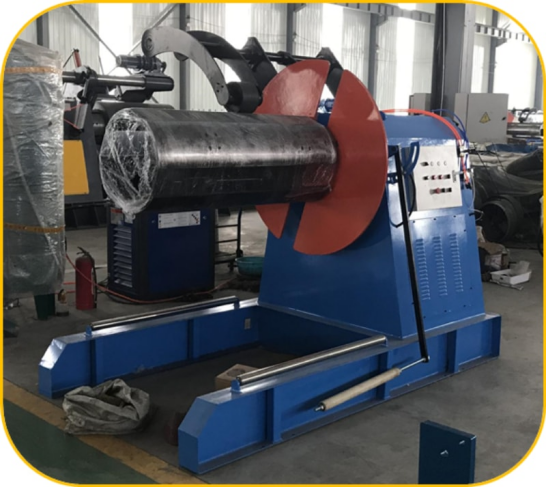

Decoiler sample
Usage: It is used to support the steel coil and uncoil the material in a turnable way.

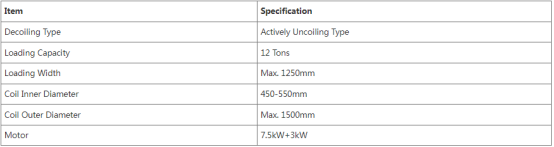

12t hydraulic decoiler specification:

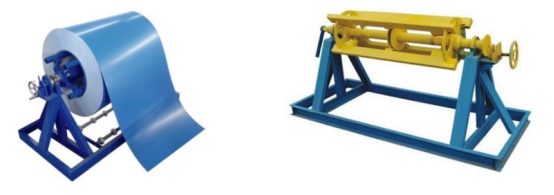

Manual Decoiler Sample Pictures
