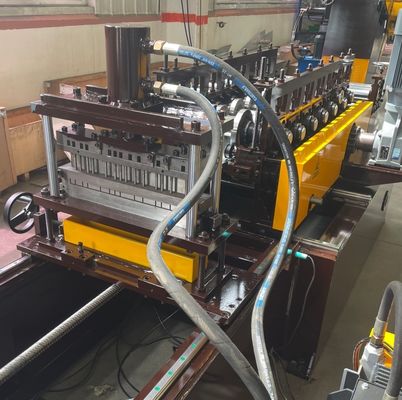

Cable Tray and Cover Profile Rolling Forming Machine
A cable tray system is used to support insulated electrical cables used for power distribution, control, and communication. Cable trays are mechanical support systems that provide a rigid structural system for electrical cables, raceways, and insulated conductors used for electric power distribution, control, signal instrumentation, and communication.
Metal cable trays are made of galvanized steel, stainless steel, and aluminum. There are many sizes, here we take the small size from 50 to 400mm as an example to show how the machine is designed.

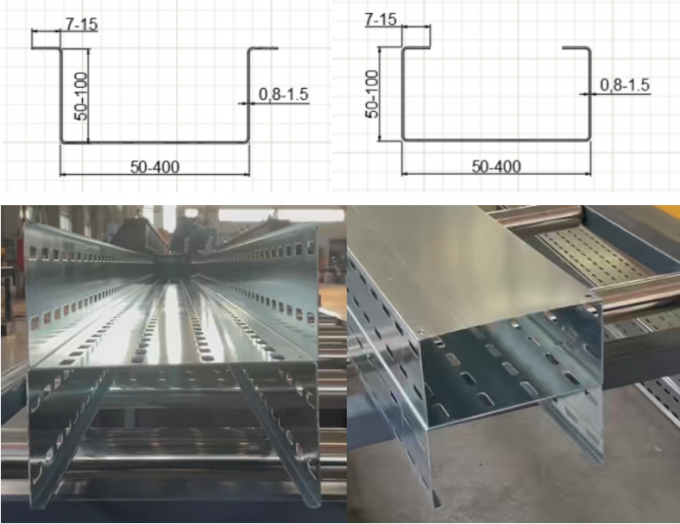

Reference Drawings
Machine Examples

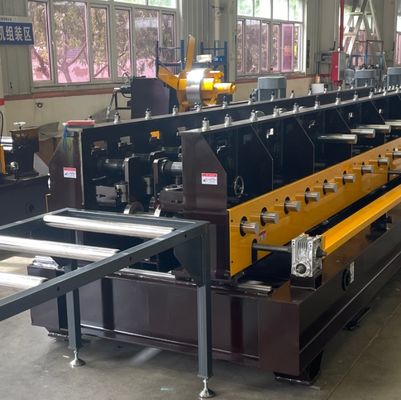

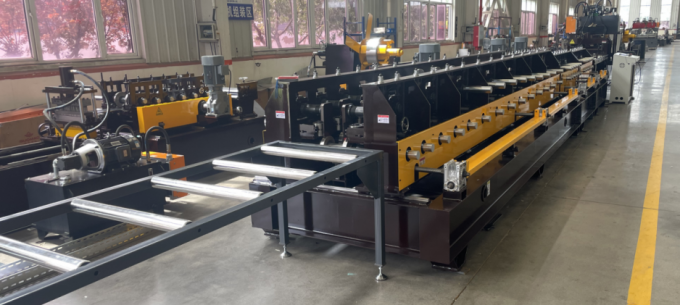

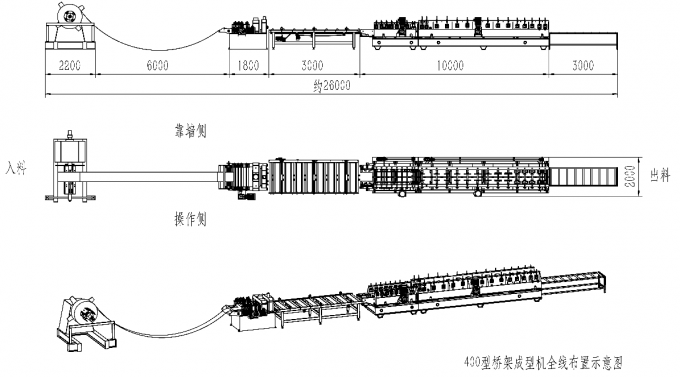

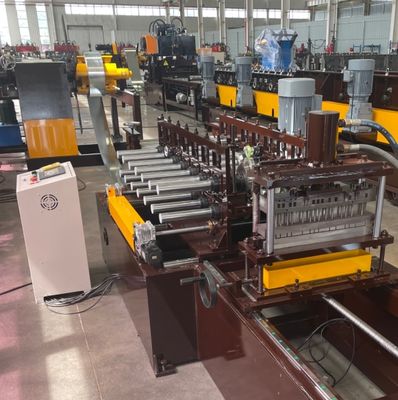

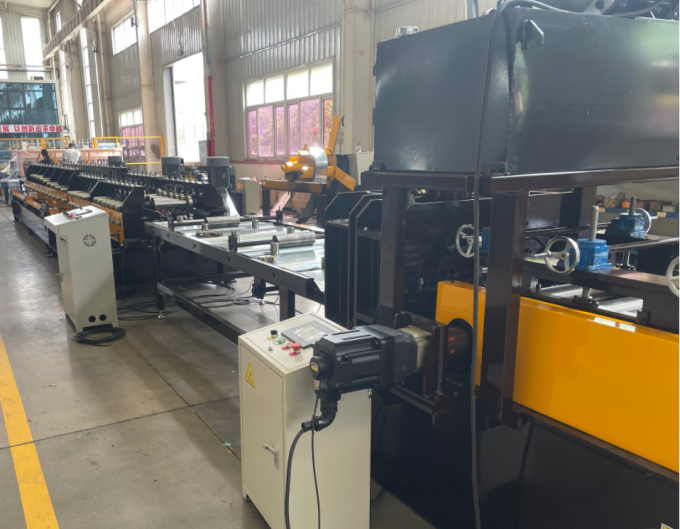

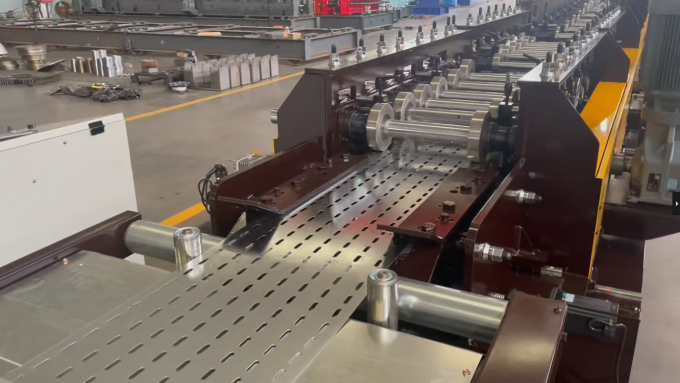

This is for cable tray rolling forming machine:

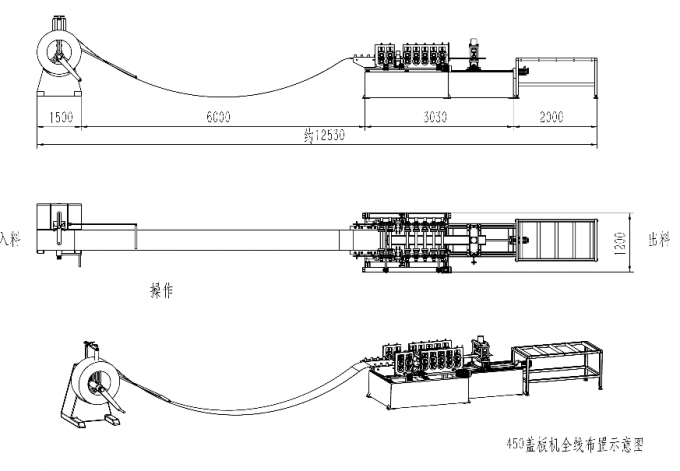

This is for the cable cover profile rolling forming machine:
Machine Specifications
| Parameter | Specification |
|---|---|
| Coil thickness | 0.8-1.5mm |
| Coil width | 60-420 mm |
| Suitable Raw Materials | Galvanized steel coil |
| Yield Strength | ≤235Mpa |
| Length tolerance | ± 1mm for 3000mm |
| Line Speed | 8-16 m/min |
Standard Configuration

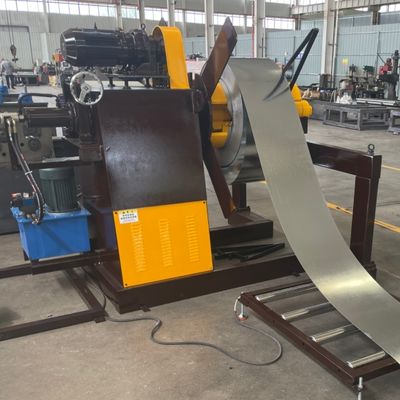

- 3Ton Hydraulic decoiler set 1
- Leveling/cutting/punching unit set 1
- Main roll forming machine set 1
- Hydraulic station set 1
- Conveyor Belt system set 1
- Run out table set 1
Key Features

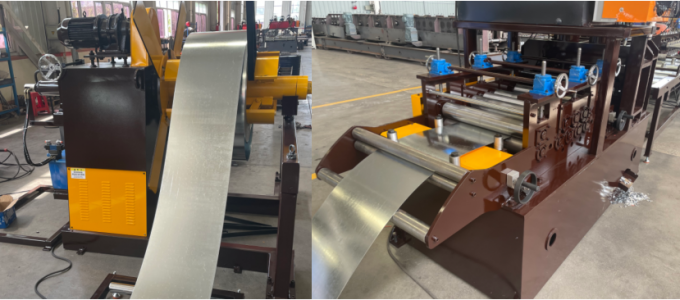

- The decoiler is optional - you can choose either manual decoiler or hydraulic decoiler
- Guiding system adjustable for different width of coil

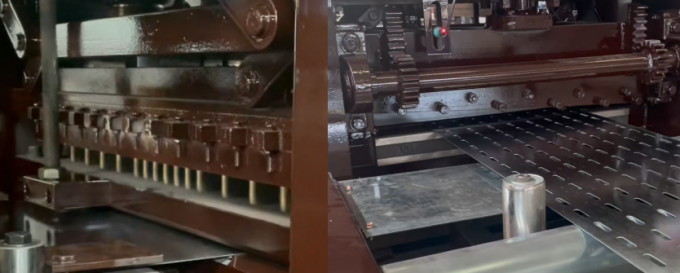

- Punching part mold adjustable for different width (each time 2 rows punching)
- Higher speed available with additional punching molds
- Before shearing and convey table solves problem of changing cutter for different sizes

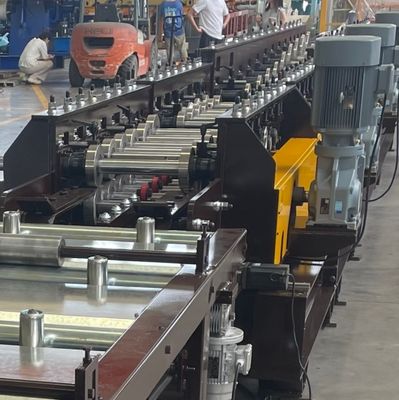

- Main rolling forming machine has longer shaft with frame along shaft for different sizes
- Punching needles are easily adjustable at the back
This machine handles small sizes of cable tray (bottom width from 50 to 400mm). Larger sizes are available upon request. The cover machine width is also adjustable.
Note: For different sizes, you do not need to change the cutter blade even after shearing.
