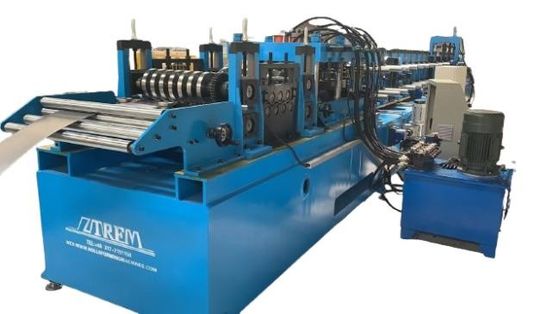

C Z Purlin Channel Cold Roll Forming Machine Full Auto Galvanized Steel Profile
Fully automatic C&Z purlin quick Interchangeable Roll Forming Machine, adopts a special structure for both C and Z purlin making. The rollers for C & Z are changed very quickly without dismantle any parts. Cutter adopts universal hydraulic cutting device, no need to change cutter blade while producing different profiles with different sizes which save labor costs and improve production efficiency.

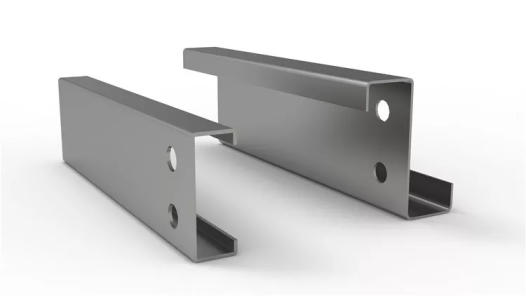

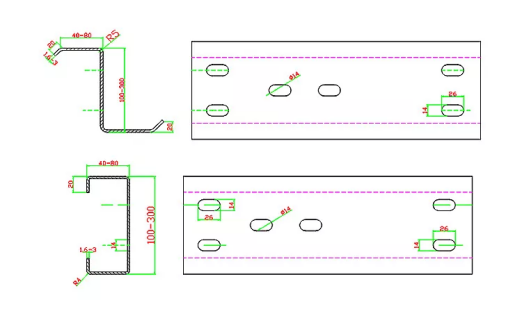

Here is a profile pictures:
C Z Purlin Channel Cold Roll Forming Machine Full Auto Galvanized Steel Profile
C Z Purlin Channel Cold Roll Forming Machine Details

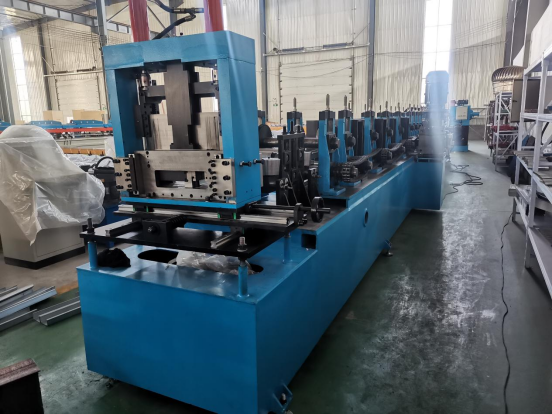

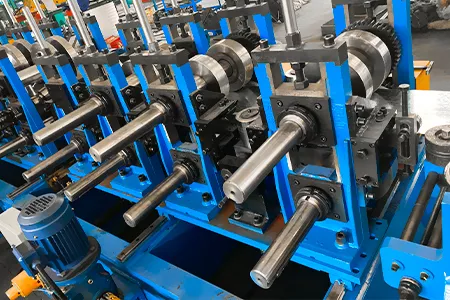

Stand Base
Roll stands adopt cast iron single station which is most heavy and strong.

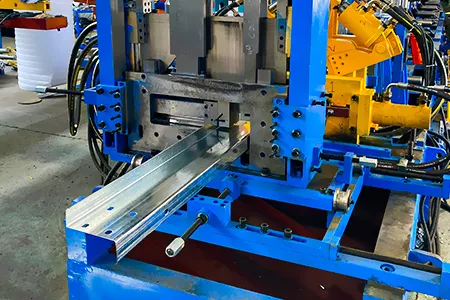

Interchangeable
Produce different purlin sizes without changing rollers or spacers.
Only need to overturn the rollers 180 degree, Save cost and time.

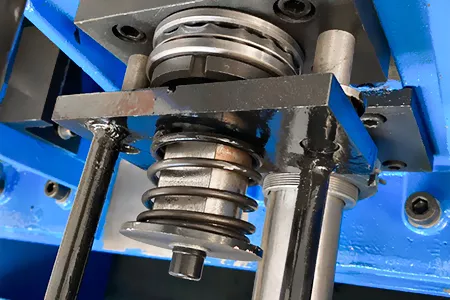

Universal Cut
Universal post cutter. No need change cutter blades for different sizes.
Customization
Senior and experienced engineer control the whole process for your customize.
C Z Purlin Channel Cold Roll Forming Machine Parameters
| Product | C&Z purlin Quick Interchangeable Roll Forming Machine |
| Model | C Channel Profile / Z Shape Profile (Customizable ) |
| Base Material | Galvanized Steel Hot And Cold Rolled Steel |
| Thickness | 1.5-3.0mm (Customizable) |
| Effective Width | According To Profile Size |
| Roller Station | About 16 Stations |
| Roller Material | Bearing Steel / Cr12Mov |
| Roller Driven Type | By Chain/ Gearbox |
| Color | According To Customer Requirements / Customizable |
| Brand | SUNWAY |
| Control System | Worldwide Famous Brand PLC (Panasonic, Siemens, Delta, etc.) |
| Power | 15KW-18KW |
| Frame | 350 H Steel / 400 H Steel |
| Cutting Drive | Hydraulic Drive |
| Cutting & Hydraulic Type | Type:Post Universal Cutter Hydraulic Pump Station :11kw Blade: Cr12mov HRC: 58-62 |
