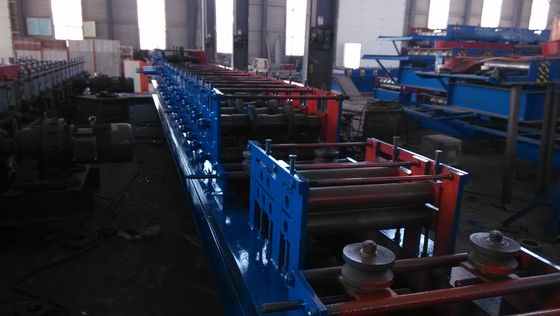

Steel Profile Hat Purlin Roll Forming Machine PLC Control Length

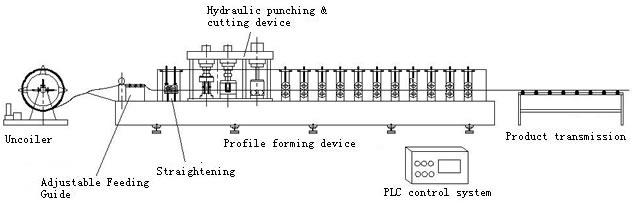

Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table
Machine Component
| De-coiler | 1 set |
| Leveling device | 1 set |
| Forming machine | 1 set |
| punching device | 1 set |
| Cutting device | 1 set |
| PLC control box | 1 set |
| Hydraulic pump station | 1 set |
| Production support table | 1 set |
Parameter
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Width | 500mm | 600mm |
| Capacity | 5000kgs | 5000kgs-8000kgs |
| Inner diameter | 450-550mm | 450-550mm |
| Outter dimater | 1500mm | 1800mm |
Roll Forming Machine
| Material specification | Galvanized and pre-painted galvanized steel. |
| Thickness | 0.6 mm to1.5mm. |
| Main motor power | 5.5 kw. |
| Hydraulic station power | 3 kw. |
| Feeding width | 124mm. |
| Cover width | 60mm. |
| Yield stress | 235Mpa(33KSI) ~ 345Mpa (50KSI). |
| Roll forming Speed | 12 m/minute. |
| Cutting Tolerance | ±2mm |
| Manual Uncoiler | Max. Capacity: 5000kgs. |
| Voltage | As per customer’s request. |
| Numbers of stands | 12 stands/stations/pairs. |
| Roller material | 45# steel polished and coated with chrome HRC55-60° |
| Shaft diameter | 70mm |
| Shaft diameter | high grade No.45 steel after treatment |
| Type of cutting | Roll-formed and length-set profile cutting. |
ELECTRONIC CONTROL SYSTEM
Type: PLC Frequency Control System with touch screen
PLC Brand: Delta
Encoder Brand: Omron
Length Error: ±2mm
Language: English and Chinese
Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)

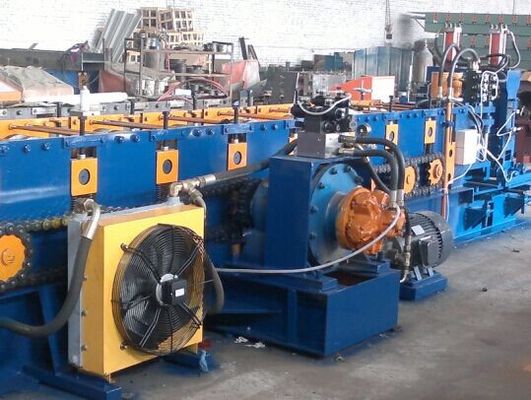

HYDRAULIC PUMP STATION
Oil type: 46# hydraulic oil
Pump brand: China brand
