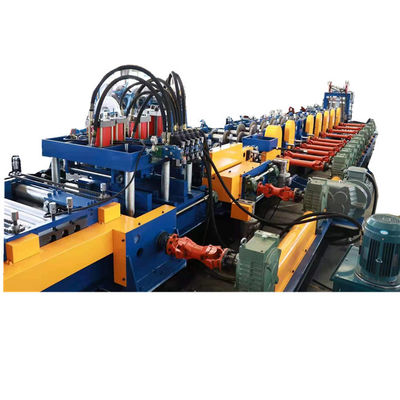

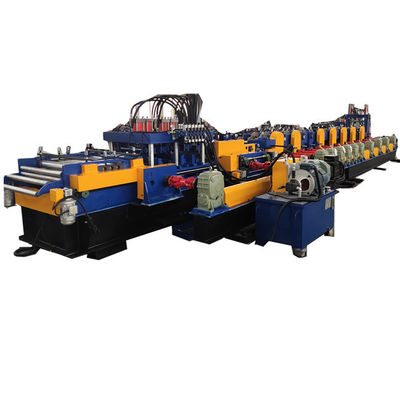

C purline, U purline, M purline Z purline, C & Z purline rolling forming machine
CZ steel can be used for building main structure, and after deep processing, it can well meet the design requirements of building structure, making the building structure more stable and reliable. C-shaped steel is mainly used on some wall beams and sandalwood strips in buildings, which can obtain a relatively sturdy building structure. Z-shaped steel is a common cold-formed steel that is commonly used in large steel structures, especially in buildings like factories, and has seismic resistance. Shelves, vegetable greenhouses, and furniture: CZ steel is also used in the production of shelves, vegetable greenhouses, and furniture.

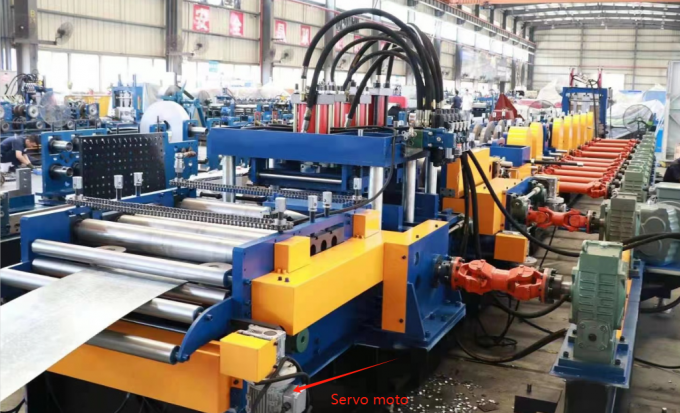

At the leveling part, there is also servo motor, once the input coil width changes, the leveling part will do the adjustment automatically.

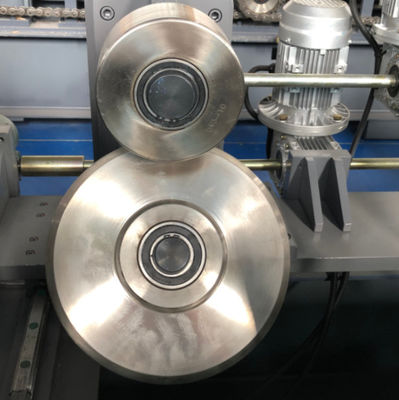

Feeding flat roller+double pairs of neutral rollers. The feeding guide can move independently at the front and back of the guide rollers, meaning that the rollers can be adjusted left and right separately. The handwheel must be on the operating side and have an overall lateral movement function.

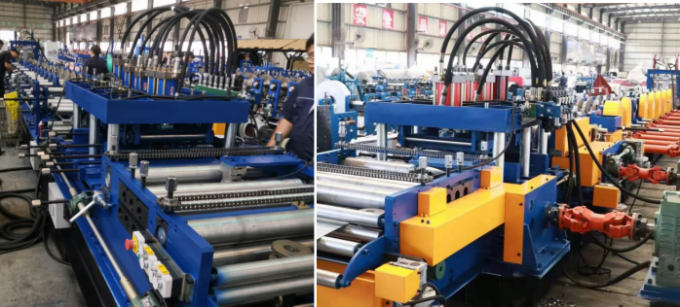

Servo adjustment of waist height and bottom width, thickness adjustment through servo motor centralized drive of worm gear and worm gear adjustment, worm gear and bearing positions have oil injection holes, CZ exchange for manual adjustment.

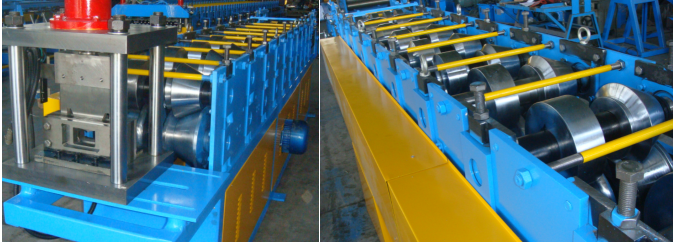

On the other hand, let me share some more economic design C & Z purline rolling forming machine for your reference: This type we can use the chain as transmission and then cost will be more lower.
As to the CZ purline machine punching part, we have three types for your reference:
1. Independent punching, which is for more punching.
2. Before punching, if the punching at the side, we have to do the before punching

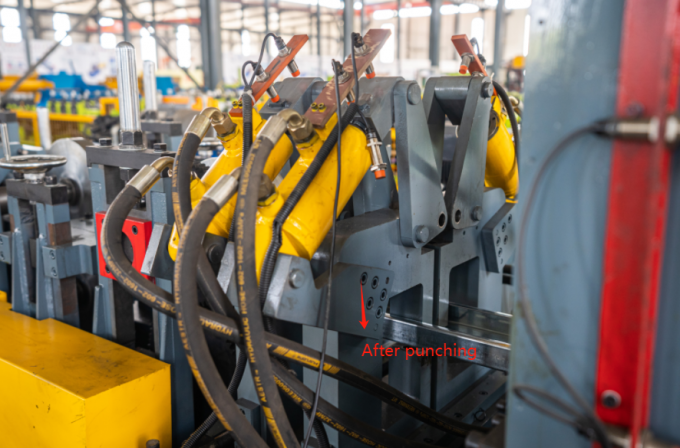

3. After punching, if the punching at the bottom and near the end, we can use the after punching.
This punching is good if you have lots of holes to punch, by this type we can change dies easily and enhance the machine working speed.
What if the solution, I just want to make one fixed size?
You can choose this type middle plate type, cost will be more lower and more easier to use.
For more question, you can contact us at any time.
