High quality 2mm 20 Stations Cz Purlin Roll Forming Machine Gearbox Driven from China, China's leading product market 2mm Cz Purlin Roll Forming Machine product, with strict quality control 20 Stations cz purlin machine factories, producing high quality Gearbox Driven cz purlin machine Products.

SKU: 59b18684eb3a Category: Tags: , ,

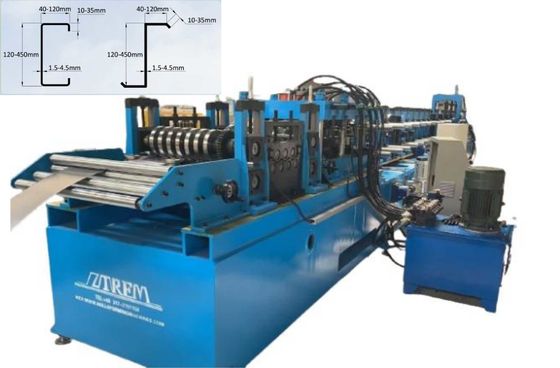

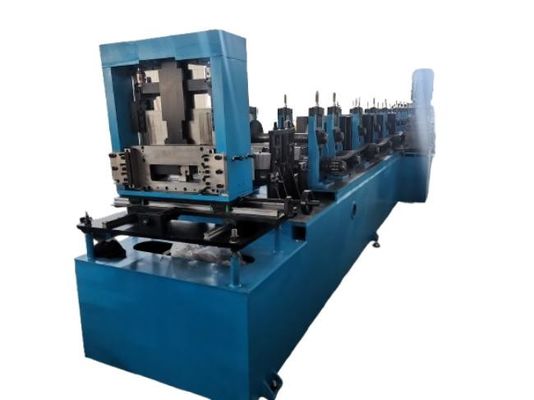

CZ Purlin Roll Forming Machine

The finished products are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.

CZ Purlin Roll forming machine can produce C, Z profiles. Produce the C and Z purlin by exchange one side of the roller up and down, only need about half hour. This machine also can adjust roller horizontal distance to achieve C or Z purlins of the width with high precision automatic. And also save time and increase production.

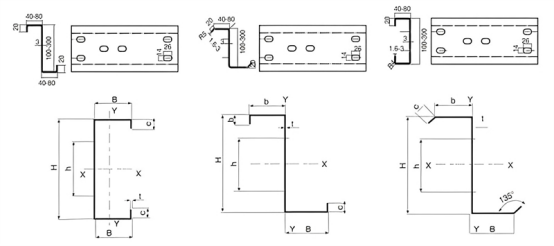

Profile Drawings For Reference

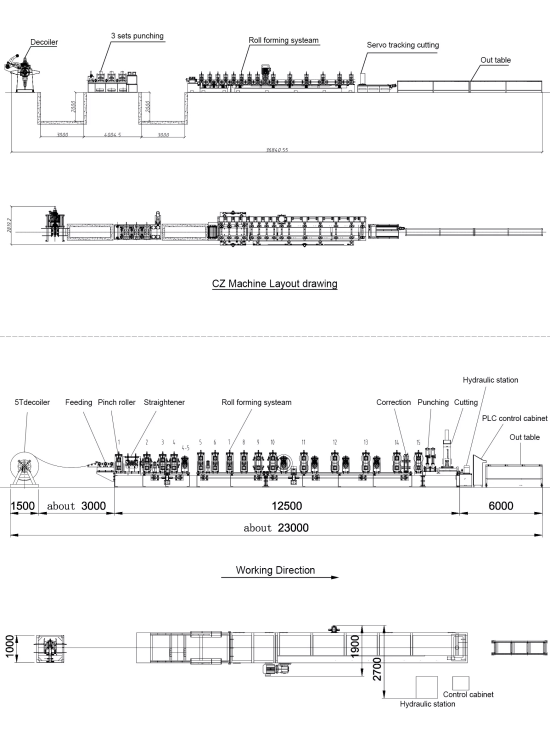

CZ Purlin Roll Forming Machine Process Flow

Uncoiler — Feeding — Straightening — Pre-punching — Pre-cutting — Roll Forming — Exit Rack

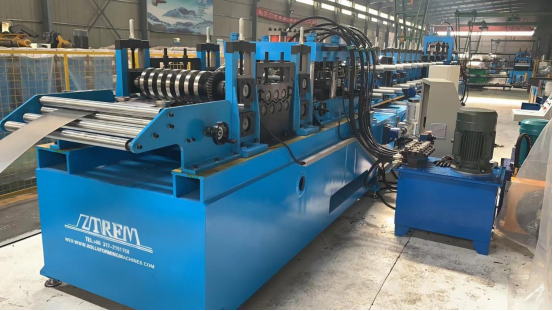

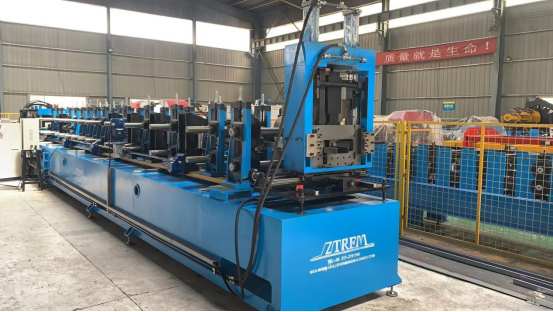

CZ Purlin Roll Forming Machine
