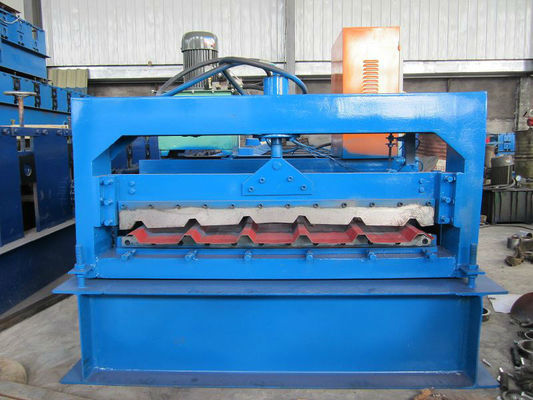

Hydraulic Cutting Roof Panel Roll Forming Machine 8-15M / Min
Equipment Description
1. Material:
1) Coil Width: 1000mm
2) Suitable Coil Thickness: 0.3-0.7mm
3) Suitable Raw Material: Galvanized steel sheet

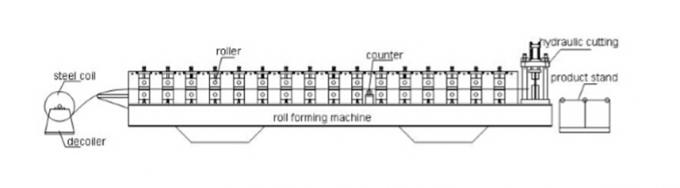

2. The Chart of Process flow
Manual de-coiler --- Electric Feeding --- Servo motor feeding ----oll Forming Machine------Computer Control Cabinet---Automatic cutting Mechanism ---Run-out Tables
3. The equipment including
| Roll forming machine | 1 set |
| Hydraulic cutter | 1 set |
| Electrical control system | 1 set |
| Hydraulic system | 1 set |
| Normal run out table | 3 PC 1m*1m |
| Manual de-coiler | 1 set Max. loading 5 T |
4. Technical specification and details
Main parameters:
| No. | main parameter of CORRUGATED roll forming machine | |
| 1 | Suitable to process | Color steel plate, galvanized sheet, aluminum coils and etc. |
| 2 | Width of the feeding material | 914mm |
| 3 | Roller station | 18 rows |
| 4 | Thickness of feeding material | 0.16-0.3mm |
| 5 | Power | 4+3kw |
| 7 | Productivity | 8-12m/min |
| 8 | Diameter of the roller | Φ70mm |
| 9 | Weight | About 4.5 T |
| 10 | Size | 8500*1300*1400mm |
| 11 | Voltage | 380V 50Hz 3phases |
| 12 | Rolling material | Carbon Steel 45# |
| 13 | Material of the cutting plate | Cr12 |
| 14 | Wall thickness of main forming machine | 14mm steel plate |
| 15 | Main forming machine body | 300 mm H steel |
| 16 | Control system | PLC control |
| Can be customized according to customer requirements or drawings | ||
Our Services
Terms of Payment:
30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
Delivery: 30 days after receipt of advance payment
Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Round trip tickets and suitable accommodation, also buyer should pay salary 80USD/day.
Warranty: 12 months limited warranty
During warranty: parts are free but buyer pay for the shipping fee.
