Automatic Changing Size C Purlin Roll Forming Machine With 20 Stations

High quality Automatic Changing Size C Purlin Roll Forming Machine With 20 Stations from China, China's leading product market C Purlin Roll Forming Machine Automatic product, with strict quality control 20Stations C Purlin Roll Forming Machine factories, producing high quality 20Stations C Purlin Roll Forming Machine Products.

SKU: 94db9509cff3 Category: Tags: , ,

Zhongtuo automatic changing size C purlin roll forming machine

C-purlin product is widely used in the purlins and wall beams of steel structure buildings, and can also be assembled into lightweight roof trusses, brackets and other building components. In addition, it can also be used for columns, beams and arms in light machinery manufacturing.

Here is a profile for your reference:

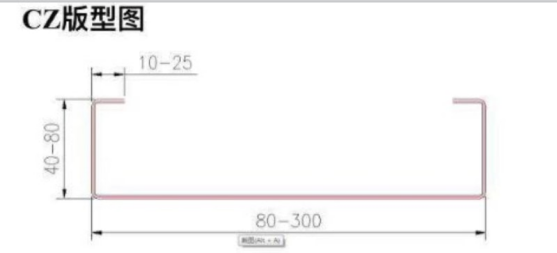

C purlin drawing for reference (can be customized)

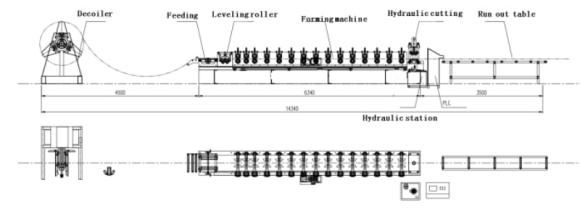

Working process

Machine parameters

1 Machine name Zhongtuo automatic changing size C purlin roll forming machine
2 Dimension 12000*1500*1800mm
3 Weight 8T
4 Total power 15KW
6 Voltage 380V/50HZ/3PH (As request)
7 Material GI,GL
8 Forming speed 12m/min
9 Material thickness 1.5-3.0mm
10 Tolerance ±1mm

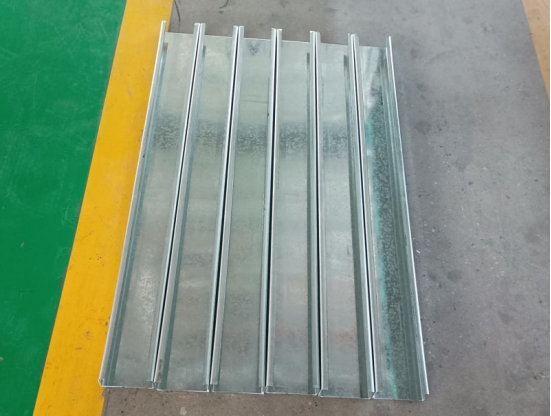

Products showing
