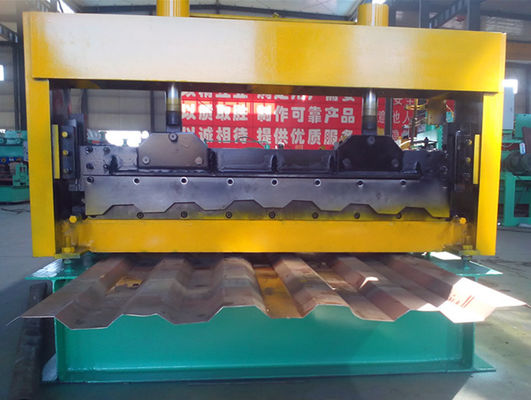

Aluminum Galvanized Car Panel /Body Roll Forming Machine 1219mm Feeding Width
1. Specifications:
| Material Spec | car panel forming machine |
| Main motor power | 4.0kw |
| Forming speed | 8-12 m/min |
| Diameter of roller | 80 millimeter |
| Thickness of input sheet | 1.0-3.0 millimeter |
| The width of the plate | 1200 millimeter |
| The effective of the plate | 1080 millimeter |
| Hydraulic station pressure | 11 kw |
| Hydraulic pressure | 10 - 12Mpa |
| Total Weight | 4.5 ton |
| Voltage | 380 volt |
| Roll stand | 11 groups |
| Controlling system | PLC automatic frequency convertion controlling system. |
| Size length*width*high | 6.0m*1.7m*1.3m |
| Roller material | 9Cr-Si quenched |
| Material of cutter | fly saw incise |
| Molding method | overall shape |
2. Process of line:
Decoiler-active feeding-coil strip leveing -roll forming -measure length-cut to length-output table
3. Components of line:
| No. | Name | Unit | Qty |
| 1 | Decoiler | set | 1 |

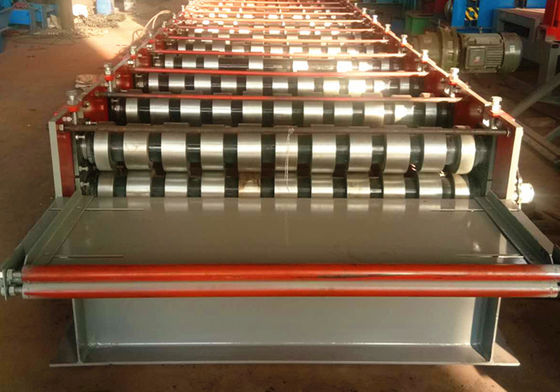

| 2 | Main machine for roll forming | set | 1 |
| 3 | Automatic control system | set | 1 |
| 4 | Hydraulic system | set | 1 |
| 5 | Automatic fly saw cutting | set | 1 |
| 6 | Output table(Products receiving tables) | set | 1 |
4. Spare parts ( for free)
1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;
2. Rubber mat 1 pcs;
3. Bolt spanner 1 pcs
Remarks
| Payment terms |
30% T/T in advance and balance 70% after inspection confirmation before shipment. |
| Delivery | within 45 working days after receipt of deposit. |
| Packing | Nude packing with 1*40HQcontainer |
| Warranty | One year, and we will provide the technical support for the whole life. |
| Installation |
1.Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD100/person/day for salary. 2. Need one technician 3. Training time: one week (contains the time of installation and adjustment)
|
