High Efficiency Ridge Cap Roll Forming Machine 20Mpa 0.05mm Cr - Plating
machine specification
| NO. | Item | Specification |
| 1 | Processing material | |
| 2 | Processing thickness | 0.2-0.8mm |
| 3. | Coil width | 500mm |
| 4. | cover width | 312mm |
| 5. | Material of main frame | 300H steel |
| 6. | Diameter of Soild shaft | 70mm, high grade 45# steel |
| 7. | Roller |
Quenched and tempered treatment, |
| 8. | Thickness of middle plate | 16mm |
| 9. | Forming station | 16 station |
| 10. | Transmission | By chain(1.0 inch) link bearing model 6210 |
| 11 | Power of main motor | 5.5kw with Cycloidal reducer |
| 12 | Power of pump station | 4kw |
| 13 | Forming speed | about 8-10m/min |
| 14 | Hydraulic cutting | Controlled by PLC |
| 15 | PLC | DELTA(TAIWAN)/Mitsubishi |
| 16 | Material of razor blades | Cr 12, quenching 58-62℃ |
| 17 | Frequency converter |
It has the advantage of slowing down before cutting, to ensure the |
| 18 | Switch | CHNT |
| 19 | Transducer | SAJ |

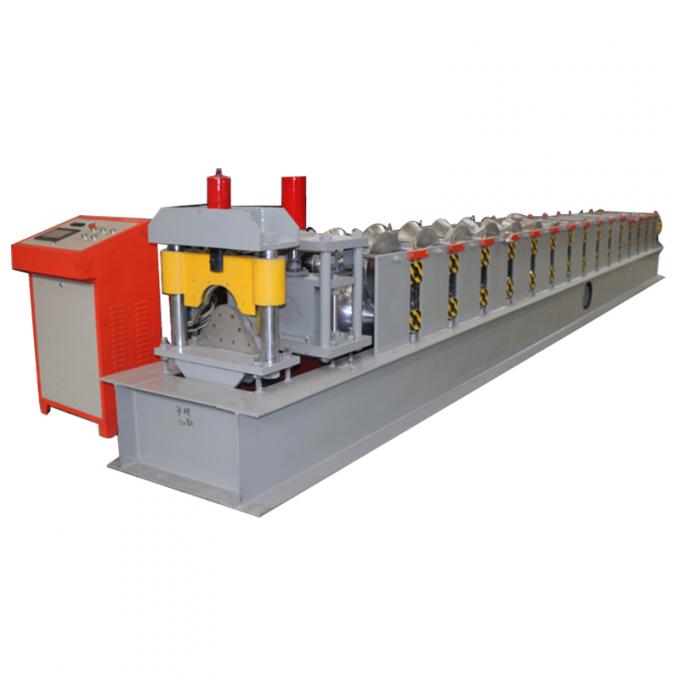

Machine picture
| Packaging Details: | Main machine is nude, the computer control box is packed with wooden frame. |
|
Main machine is nude in the container, the computer control box is |
|
| Delivery Detail: | 20 days |
Company Information
Cangzhou Kingter Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.
FAQ
1: How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2: How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3: When we exported the machines:
We have been making and exporting the machines since from the year of 1998.
