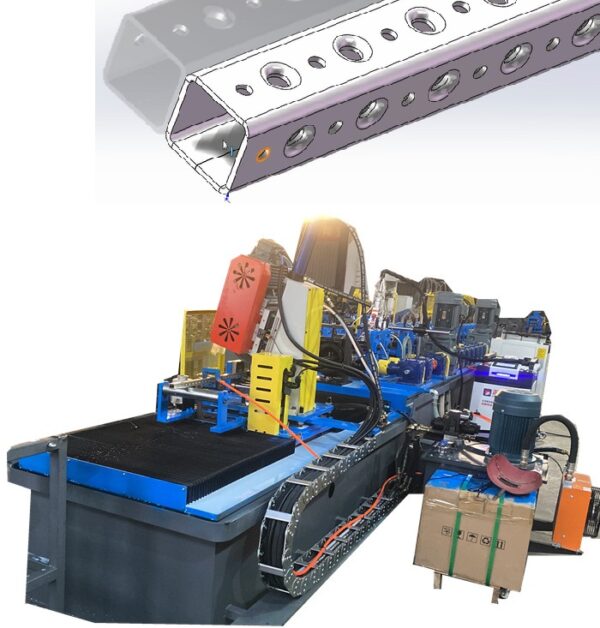

Tube making machine with online punching
Tube making machine with online punching is designed to make the closed profile by laser welding online. As this closed profile is used for cabinet rail, it needs to be designed with online punching. First let us check the profile and then check the machine working flow to know more about the rolling forming machine.
Material thickness: 1.5mm
Tube size: 30x30mm

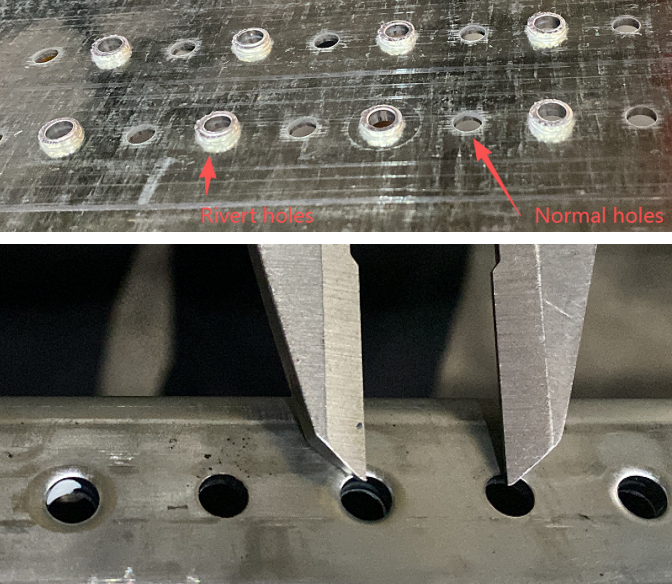

Hole type: rivet holes and normal holes.

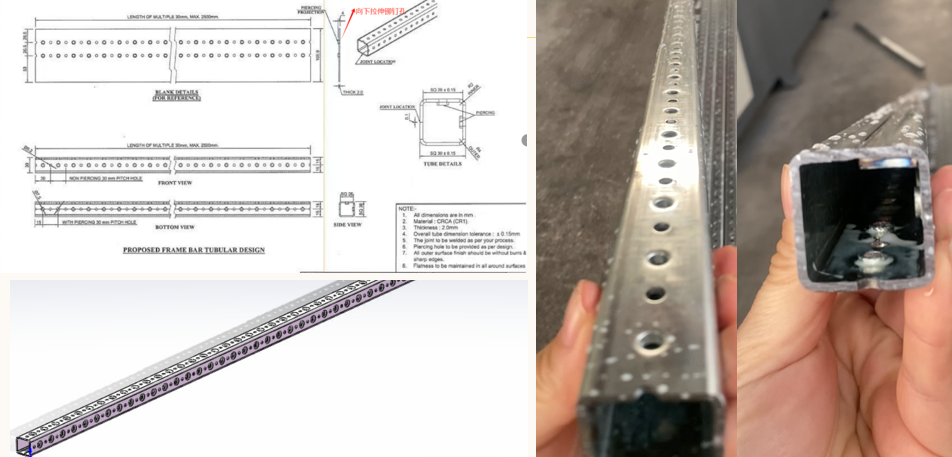

About the punched holes designs:
So with rivet hole and then we need the change the coil working direction.
Tube making machine with online punching design and design idea:

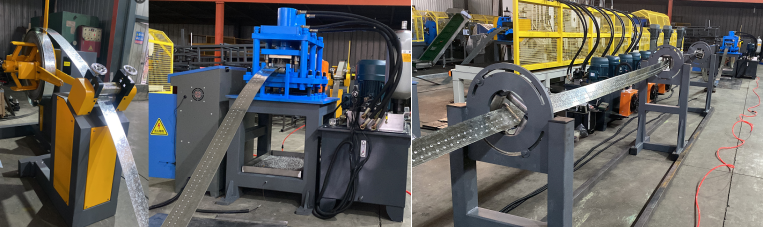

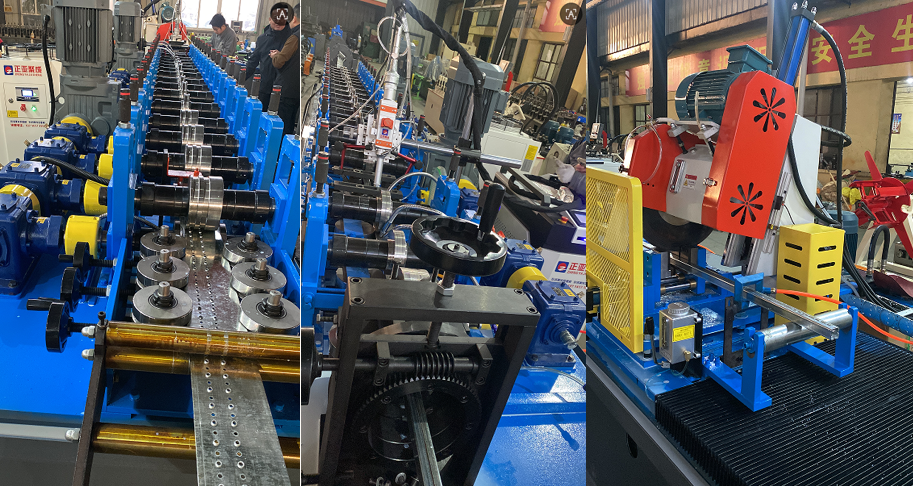

The tube rolling machine designed with 3 ton decoiler with leveling system. And then do the punching by the hydraulic punching station. In order to change the hole inside, we need the loop to change the direction and then feed the punched sheet into the rolling forming machine. By the laser welding to make the tube closed. Use the CNC cold disk shearing to cut the tube to the specified length.

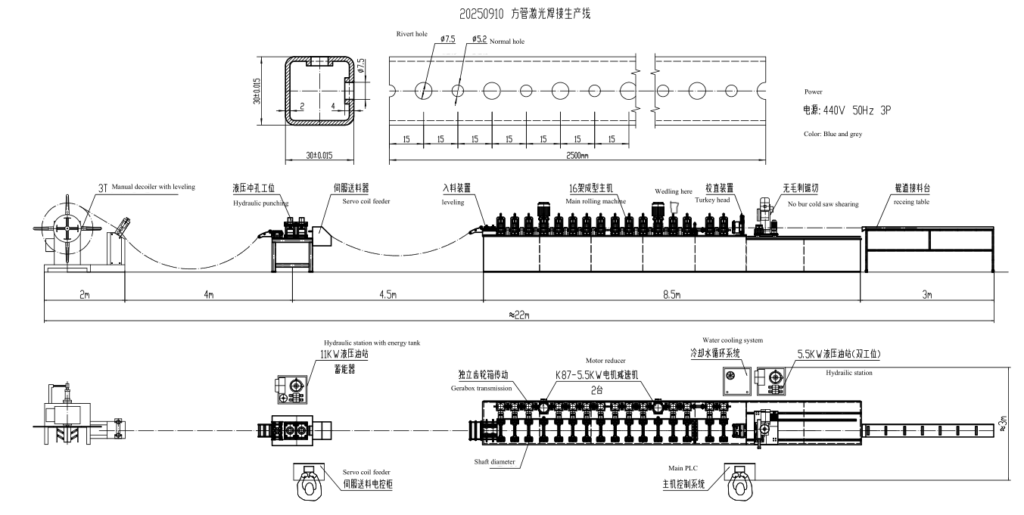

Tube making machine with online punching working flow:

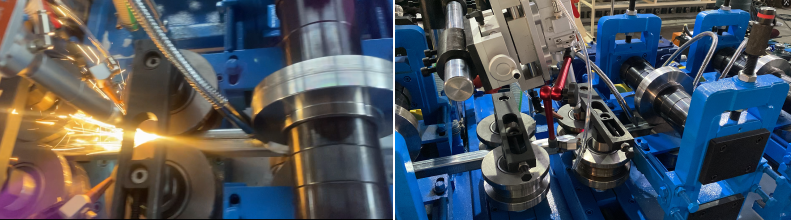

About the welding part, we design it by laser welding. Cost not so much higher.

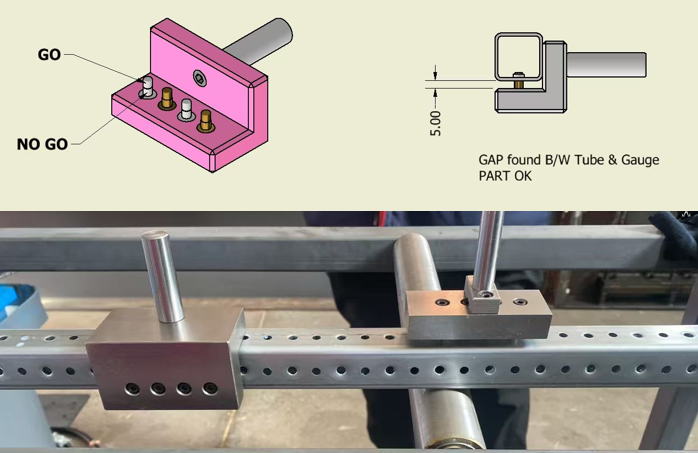

As the cabinet rail belong to the high accuracy product, the accuracy testing will be super important. Now show you how we do the testing of the profile.
Please check more Tube making machine with online punching working videos here:
