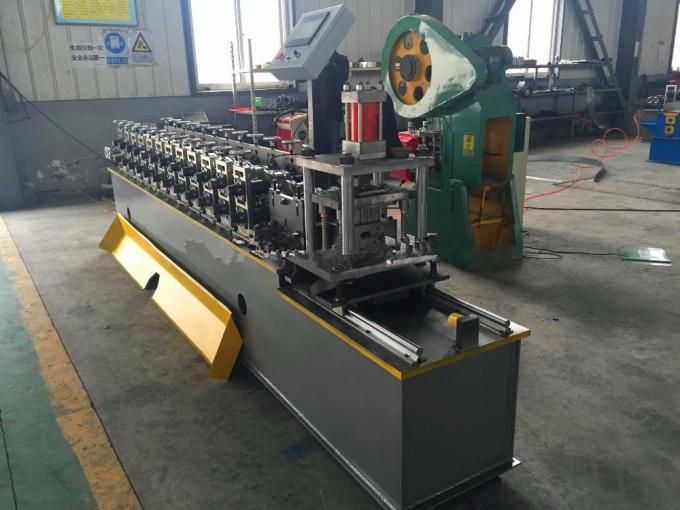

Steel Sheet Roll Forming Making Machine Shutter Door Frame
1. Main Components
Decoiler -------------------------------------------------- 1 Unit
Feeding guide ------------------------------------------ 1 Unit
Main roll forming machine --------------------------- 1 Unit
Hydraulic cutting device ------------------------------ 1 Unit
Hydraulic Station --------------------------------------- 1 Unit
PLC computer control -------------------------------- 1 Unit
Output table ---------------------------------------------- 1 Unit
2. Technological process
Uncoiler-Feeding-Leveling-hydraulic punching-Hydraulic cutting-Roll forming-Output table

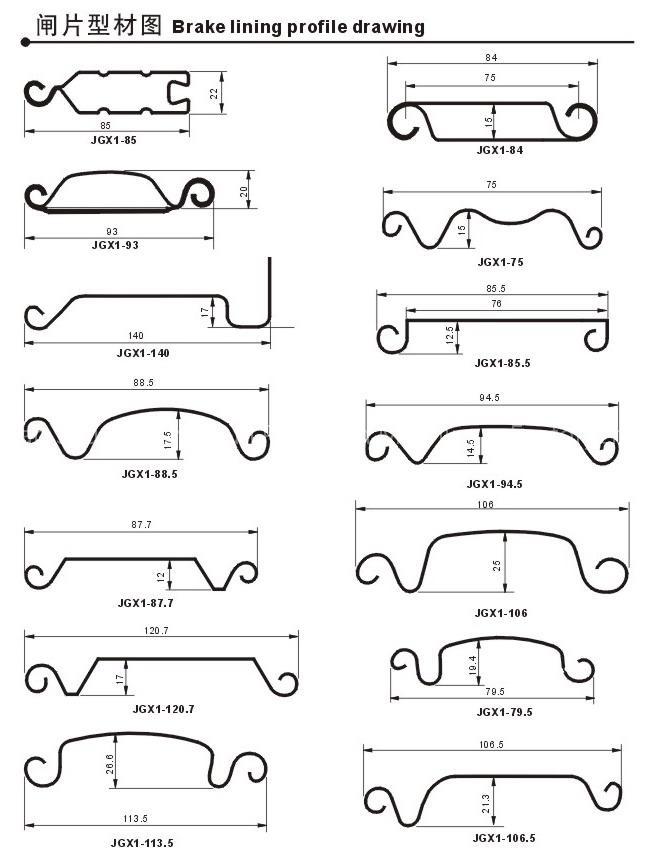

3. Technical drawing
4. Main Technical Parameters
| 1. Suitable material | Color steel sheet , galvanized steel sheet,aluminum sheet |
| 2. Installation Dimension (L*W*H): | 6.5m*1.5m*1.4m |
| 3. Main motor power | 4KW with Cycloidal reducer |
| 4. Hydraulic station power | 4KW |
| 5. Hydraulic oil pump | CB-E 310 |
| 6. Thickness of material | 0.3mm~1.0mm |
| 7. Diameter of principal axis | Φ70-90mm |
| 8. Material expand width | 1000-1250mm |
| 9. Electric tension | 380V 3phase 50HZ or as the customer's requirements |
| 10. Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 11. Controlling system | PLC |
| 12. Processing speed | 8-12m/min(glazed tile is 2-3m/min) |
| 13. Processing precision within | 1.00mm (depend on design) |
| 14. Material of cutting blade | Cr12 mould steel with quenched treatment |
| 15. Kind of drive | 0.6 inch chain link bearing model 6210 |
| 16. Roller station | 11-20 Rollers |
| 17. Roller material | high grade 45#steel; Cr12 quenching |
| 18. Leak frame load-bearing | 4.6T |
