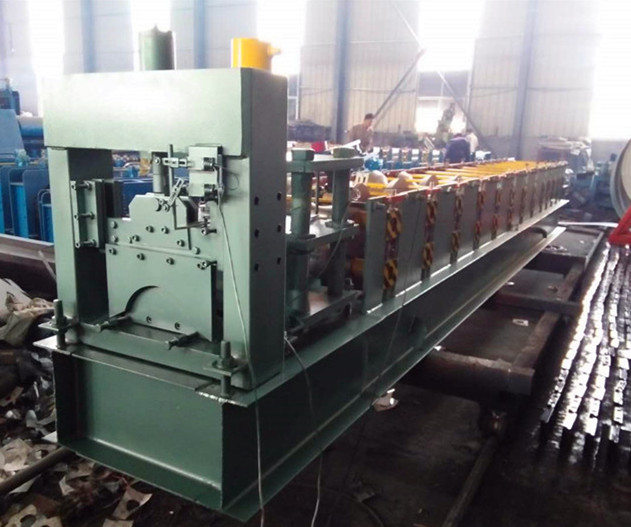

Bearing Steel Guardrail Plate Cold Roll Forming Machine Hydralic Cutting
guardrail machine Process flow:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting
→Products receiving
Parameters of guardrail machine :
Detailed Technology
|
5T hydraulic decoiler |
|
| Steel coil width | from 1000 mm to 1250 mm |
| Internal diameter of coil | variable, from 480 mm to 530 mm |
| Coil placement in the coil holder | hydraulic hoist |
| Maximum coil weight | 5000 Kg |
| Working speed | 0-15m/min adjustable |
| Maximal out diameter | 2000mm |
| Main motor power | 5.5KW AC motor |
| Hydraulic power | 4kw |
|
Forming Section |
|
| Cycloidal pin wheel reducer | BWD14-43-55KW |
| Thickness range | 3.0-4.0mm |
| Main motor power | 55kw, AC motor, motor inside of main machine |
| Roll station | 16stations (according the final design) |
| Shaft diameter | ￠110mm |
| Machine roll forming speed | 0m-15m/min(without punching) |
| Transmission | by gear box 【170#】 |
|
Auto stacker and transmission table |
|
| Take the sheet by air compressor, 5.5KW( provide by customer) | |
| Air cylinder swing arm size | 40mmx80mm |
| Transmission power | 4kw AC motor |
| Stacker length in 12m, transmission table length in 25m | |
| Drive of transmission | by 1.0inch double line chain |
| Transmission roller | ASTM1045 with chrome, diameter of roller is in 80mm |
| Carrying capacity | maximal 5000Kg |
| Length of capacity | 500-12000mm |
| The maximal stacker height | 300mm |
| Hydraulic station | |
| Hydraulic power | 11kw |
| Working pressure | 20-25Mpa adjustable |
| Solenoid valve | 3groups |
| Hydraulic oil | 46# hydraulic oil |
| Color | Blue (or base on customer request) |
| Quantity | 1 |
|
Control desk |
|
| Programmable setting of profile length and quantity | |
|
Automatic stopping of the equipment after completion of the cutting programme will be provided. |
|
| language | English and Chinese |
| Voltage, Frequency, Phase | 380 V, 50 Hz, 3Phase |
| Control panel | Button-type switch and touch screen |
| Unit of length | millimeter |
| PLC brand | Panasonic |
|
3 Station Curving Machine |
|
| Thickness | 3-4mm |
| Maximal feeding width | 1000mm |
| Roll speed | 0—10m/min |
| Main power | 30KW |
| Roll station | 3 stations |
| Shaft material | 45# forge steel, polished and coated with chrome |
| Diameter of shaft | 180mm |
| Material of roller | Gcr15 steel, polished and with HRC58-62° |
| Adjust angle motor power | 3KW |
| Dimension of machine | 2000 mm×1200 mm×1300 mm |
| Drive | by gear box |
| Curving mode | horizontal |
| Curving diameter | ≥800mm |
Our Service
1. 1 year and life-long maintenance;
2. Installation and debugging:We will send professional engineer to make installation and debugging,buyer pay our engineer eachi one 50USD/day,and provide accommodation ,food and the round-trip ticket fee;
3. Installation Days:about 5-7 days
Our machine is definitely guarantee for 12 months. If there is any problem,we will send the technician to fix the problem ASAP!
