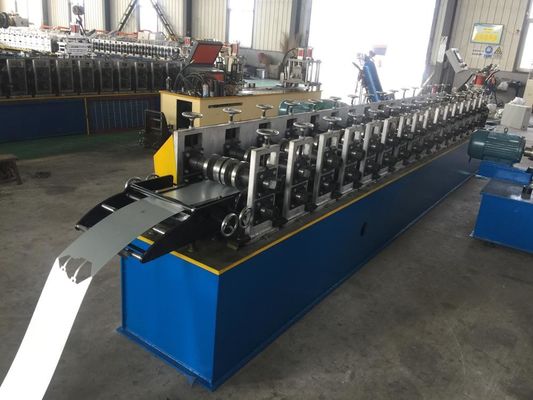

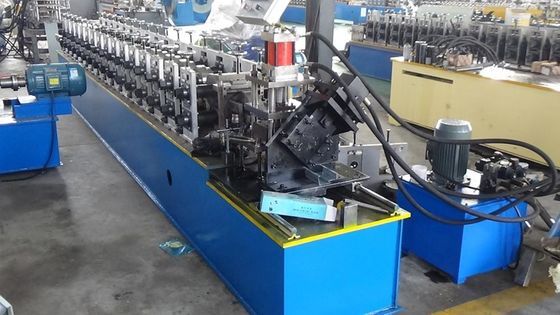

Roller Concrete Door Window Frame Making Machine Aluminum Metal
Working flow
Decoiler---------leveling--------punching with servo feeding---------roll forming--------cut to length----------output table
Machine components:
| No. | Name | Qty. |
| 1 | Decoiler | 1set |
| 2 | Feeding and guiding device | 1set |
| 3 | Roll forming machine | 1set |
| 4 | Punching machine with servo feeding | 1set |
| 5 | Hydraulic cutting device | 1set |
| 6 | PLC control box | 1set |
| 7 | output table | 1set |
Techincal description:
A. Manual Decoiler
(1) Max Width: 1250mm
(2) Inner Diameter: 500mm
(3) Outer Diameter: 1200mm
(4) Max Weight Capacity: 5T
B. Roll Forming
(1) Raw Material: Colored steel or galvanized steel
(2) Material Thickness: 1.5-2mm
(3) Working Speed: 8-12m/min; Adjustable
(4) Rollers: 20 rollers ( based on drawing )
(5) Material for Rollers: GCr15, polished, heated, quenched HRC55-60°
(6) Motor Power: 15KW
(7) Roller Diameter: 76mm
(8) Machine Side Plate Type: Guide Pin Type
(9) Transmission Type: Chain Transmission
(10) Appearance Size: About 10000mm x 1300mm x 1200mm
(11) Total Weight: About 8T
(12) Finished Sheet Product as Stipulation: GB/T 12755-91
C. Hydraulic Cutting
(1) Cutting Type: Hydraulic, automatic cutting
(2) Blade Material: Cr12 with polished, heated, quenched HRC 60-62
(3) Power: 3KW
D. Control System
(1) Electrical Control: PLC Frequency Control System with touch screen
(2) Voltage: 380V/3Ph/50Hz(or as your local standard)
(3) Length Error: ±1mm
E. Output Table
(1) It is simple and used to load finished product
(2) Length: 4m
FAQ
1) Q:Can you make machine according to my design?
A:Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.
2) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.
3) Q:What payment terms you accept?
A:Commonly is TT, 30% deposit and 70% before shipment, and sometimes we can consider more for you as per your request.
4) Q:What is the warranty for our machine?
A:We have one year guarantee, and provide whole life's technical support.
