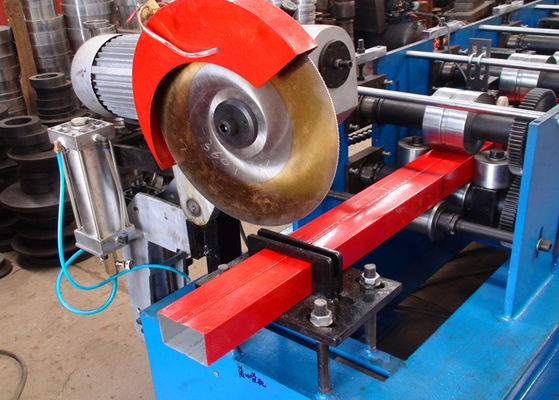

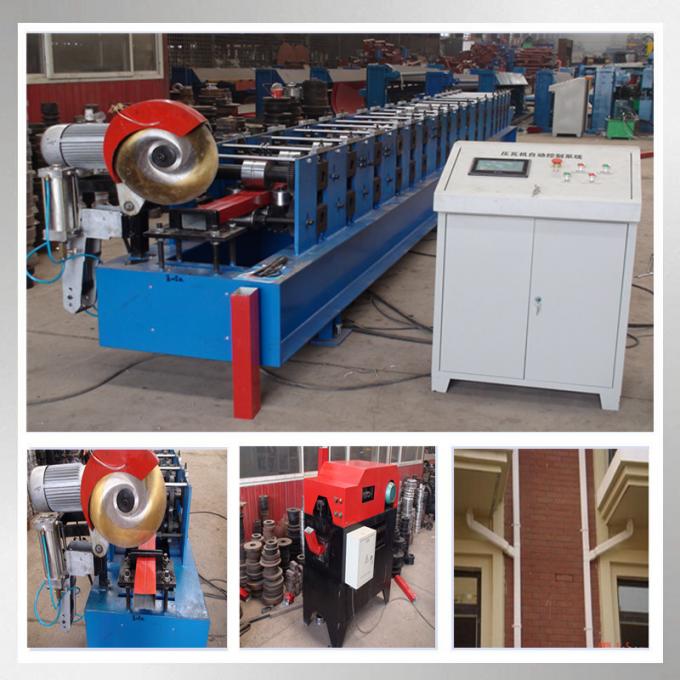

Rain Gutters Installation Downspout Roll Forming Machine TUV Approval
What is the Features of pipe machine?
1. It supports many kinds of material like carbon steel, GI and others.
2. One pipe machinecould make a large range of pipe sizes by changing mold.
3. One pipe machinecould be used to make square pipe, round pipe by changing mold.
4. The pipe made by this kind of pipe machinecould be used in many areas like water tube, wire pipe and others
What is the working flow of pipe machine?
Steel Tape→→ Double-head uncoiler →→Strip-head Cutter and welder→→Spiral accumulator→→Forming section(Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller)+ Removing External and internal burr→→Cooling unit →→ Sizing unit and straightener →→Flying saw under computer-control →→ Run-out table
What is the specifications of pipe machine?
| name | pipe machine |
| a) Steel Pipe Specification | |
| Pipe diameter: | Ø16–Ø50mm |
| Pipe Thickness: | 0.5– 2.5mm |
| Square Pipe: | 14X14mm –40X40mm |
| Rectangle Pipe: | 10X20mm –40X50mm |
| Pipe Thickness: | 0.5–2.0mm |
| Pipe Length: | 6-9m |
| Length Tolerance: | 0-3mm |
| b) Steel Tape Specification | |
| Material: | Low Carbon steel (δb≤500Mpa, δs≤235Mpa) |
| Steel Tape: | |
| Inner diameter: | Φ580-Φ610mm |
| Outer diameter: | Φ900-1500mm |
| Strip steel width: | 60mm-200mm |
| Strip steel thickness | 0.5mm-2.5mm |
| The maximum weight: | 3.0 tons |
| c) Electricity | |
| Dynamic power: | AC380V±10%, 3phases, 50Hz±10% |
| Control Power: | AC220V±10%, one phase, 50Hz ±10% |
| Electric installed capacity: | appro 450KW |
| e) Cooling water | |
| Reservoir for High Frequency equipment: | 15 m³, one set |
| Reservoir for circulating cooling water: | 15 m³, one set |
| f) Compressed air | |
| Pressure: | 0.4Mpa |
| Flow: | 0.5m3/h |
| g) Line speed: | 30-90m/min |
