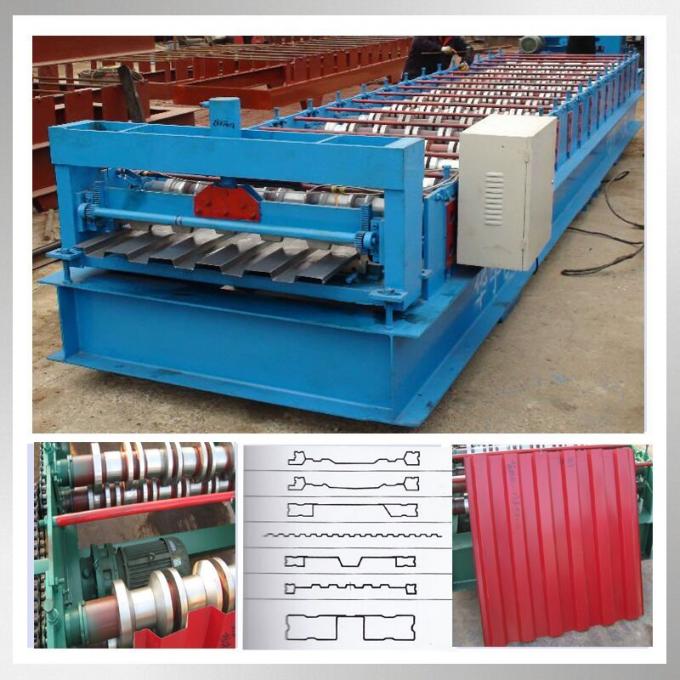

Hydraulic Cutting Aluminium Panel Iron Sheet Container Board Roll Forming Machine
Product Description
| 1 | Name | Hydraulic Cutting Aluminium Panel Iron Sheet Container Board Roll Forming Machine |
| 2 | Rollers | Designed as the profile drawing |
| Material: 45#H steel plate with chrome | ||
| 3 | Way of product | Sychronized pressing |
| 4 | Material | Machine body: 400mm H steel |
| Medium plate: 25mm steel | ||
| 5 | Axles | Material: 45#H steel |
| Diameter: Φ110mm | ||
| 6 | Power | 15kw+7.5kw |
| 7 | Hydraulic system | CDF-10 Gear pump |
| 8 | Control system | PLC computer control |
| 9 | Thickness of the plate | 1.0mm~3.0mm |
| 10 | Process precession | 1mm |
| 11 | Weight | About 12T |

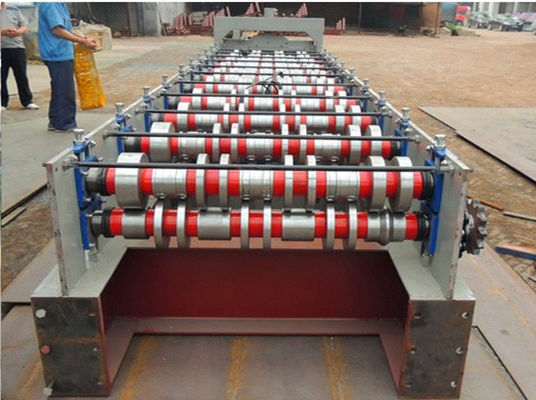

| 12 | Dimension | 9000*1800*1300mm |
| 13 | Production rate | 10m~12m/min |
| 14 | Feeding width | 1220mm |
| 15 | Effective width | Any as customers' need |
| 16 | Cutting | Hydraulic type |
| Material : Cr12 |
Packaging & Shipping
| Packaging Details: |
Main machine is nude, the computer control box is packed with wooden frame. |
|
Main machine is nude in the container, the computer control box is packed with wooden packaging. |
|
| Delivery Detail: |
20 days
|
Our Services
1. Guarantee : 12 months guarantee for the machine. If some parts broken naturally,
we will supply them for free.
2. enginers can offer out home service
3 .The spare parts ,such as limit switch ,solenoid ,fuse ,,push button ,tube
for free .
