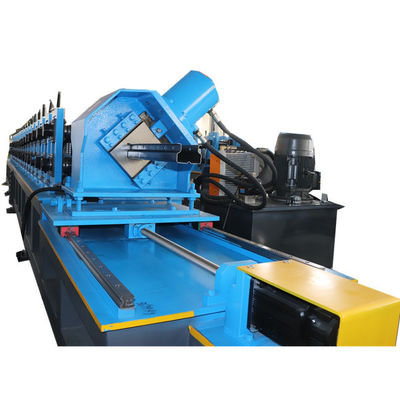

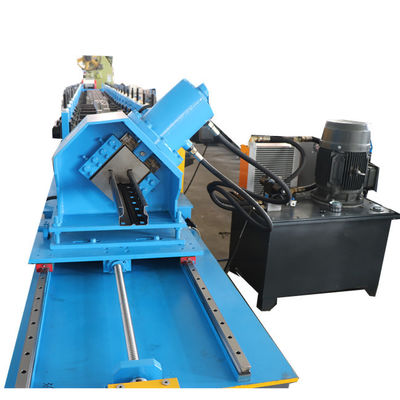

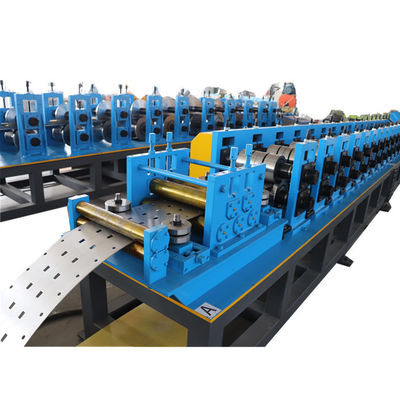

Pallet Rack Uprights/Upright Rack Roll Forming Machine
Pallet Rack Uprights/Upright Rack Roll Forming Machine is designed to make the upright in batch fully automatically. Featuring a 3″x 3″ standard column design and 5″ x 8″ base plate. Regular duty uprights are constructed of 16 gauge steel with a 16,100 lbs. capacity. Heavy duty uprights feature 14 gauge steel construction with a capacity of 23,300 lbs. (regular and heavy duty capacities based on 36″ maximum shelf spacing). Uprights utilize a bolt together design for easy component replacement. Beams can be adjusted every 2″.

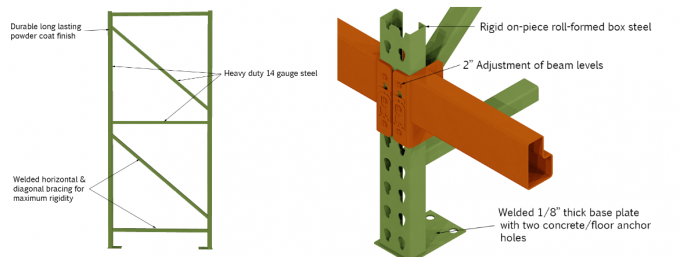

Upright Rack(also called Uprights or Upright Columns) vary in size and design depend on the load capacity and styles. Such as L Shape ( Light Capacity), C Shape (Medium Capacity), Special C Type for heavy Capacity. Holes(Tear Drop Design) and slots are punched during producing so that the load beams can be mounted into the Upright Racks. The heavy Upright Racks thickness up to 2.5mm. Here are some drawing profile for your reference:
Pallet Rack Uprights/Upright Rack Roll Forming Machine working working video for your reference:
