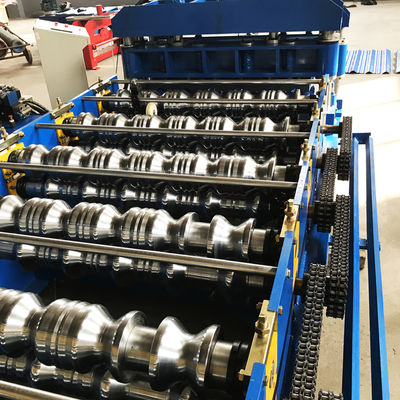

Metal Roof Glazed Tile Roll Forming Machine Corrugated Steel Sheet BV / SGS
| Machine description | Quantity | Delivery time | Container type |
roll forming machine prices |
1SET |
45 working days |
20GP |
Components of roll forming machine
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | Set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | post cut | set | 1 |
| 6 | electric motor | set | 1 |
| 7 | output table | set | 1 |
Product Description
description of tile roll forming machine
| Machine description | Quantity | Delivery time | Container type |
| tile roll forming machine | 1 SET | 40working days after deposit | one 40GP |
The production process of tile roll forming machine
Uncoiling--->Feeding material into machine-->Roll forming --->Measuring length --->Step formed--->Auto cutting--->Pruducts receving.
the specification of tile roll forming machine
| name | tile roll forming machine |
| material | Color steel sheet |
| thickness | 0.3-0.8mm |
| Coil inner diameter | 450-550mm |
| Max coil out diameter | 1300-1600mm |
| Max coil width | 1250mm |
| Carrying capacity | 5T |

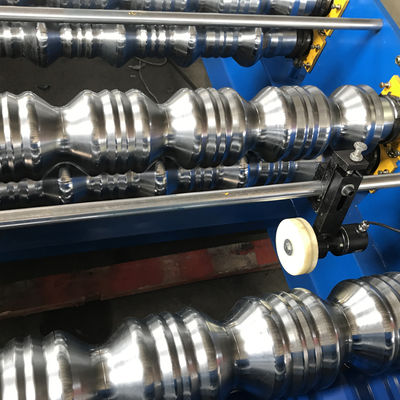

| Forming steps | 13rollers |
| Shaft diameter | 80 mm |
| Design type | pillar structure |
| Roller material | 45 # steel chrome plating chromium |
| Shaft material | 40Cr steel |
| Work speed | 4-12m/min |

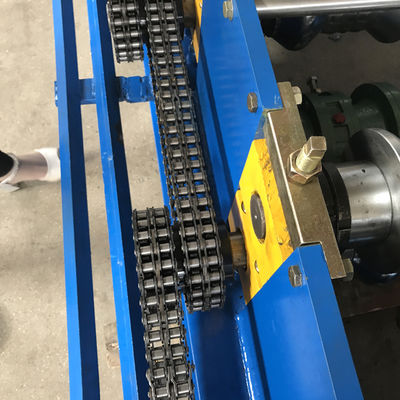

| Transpor | by chain |

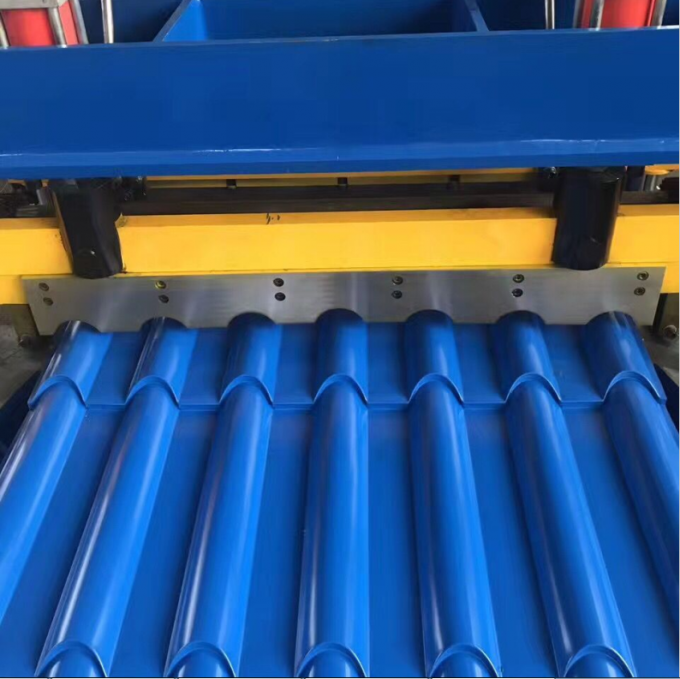

| Type of cutting | hydraulic |
| Cutting tolerance | whthin 1mm |
| Cutter | Gcr12 |
| Material of blades | Cr12 quenched |
| PLC | Delta |
| Counter | Omion |
| Voltage | as required |
| Dimension | 7000x1500x1910mm |
| Weight | About 5 T |
| Workers | 1-2 only |
