Height 38mm wall cladding panel 310 profile rolling forming machine

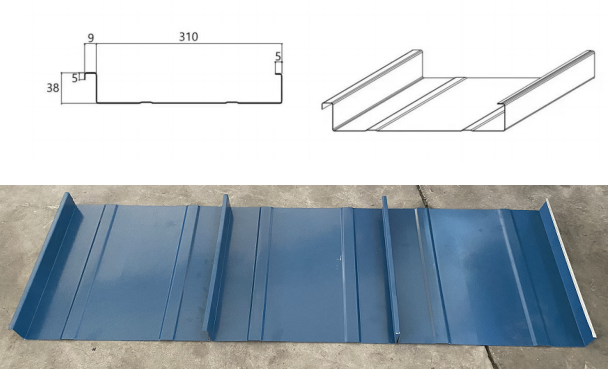

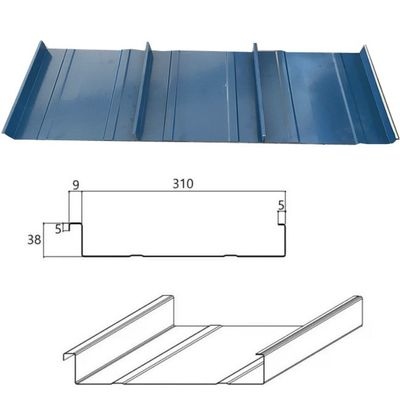

Height 38mm wall cladding panel 310 profile rolling forming machine is designed to make the profiles in batch fully automatically. We also call it as standing seam rolling forming machine. When do the cladding, it needs some locker machine to make the seam closed. Here is the drawing profile for your reference:

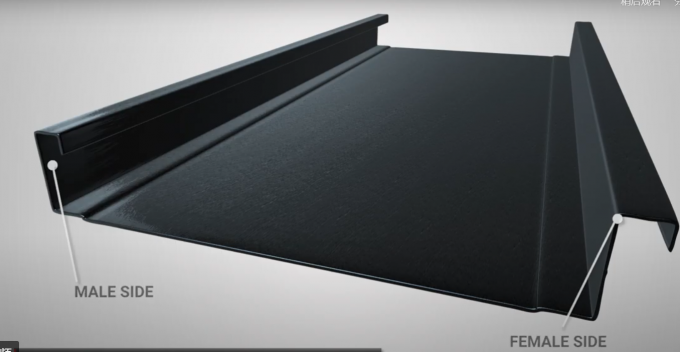

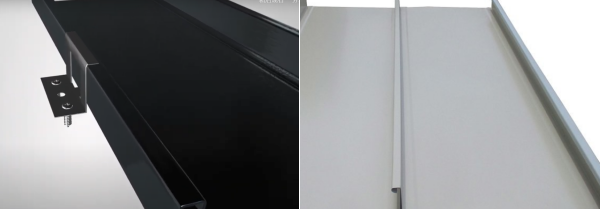

Wall cladding panel 310 profile is a kind of mechanically Seamed Metal Roof. Mechanically seamed metal roofs consist of roof panels with a concealed fastener standing seam system. They are designed with clips that line up with one another so they can be locked together by a mechanical or hand seamer. The way the panels are fastened together makes the roofing more weather resistant and less likely to have any leaking issues.

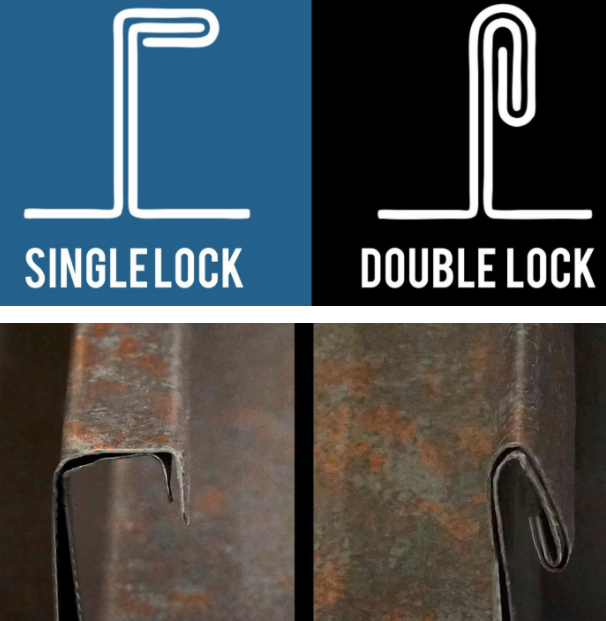

These panels can use one of two locking systems: single lock or double lock.
How it works:

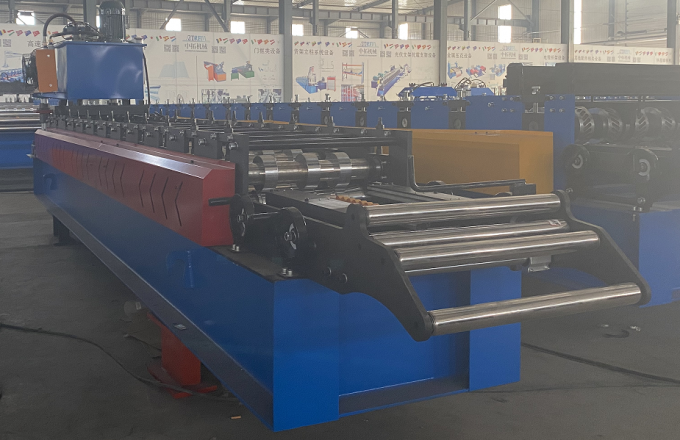

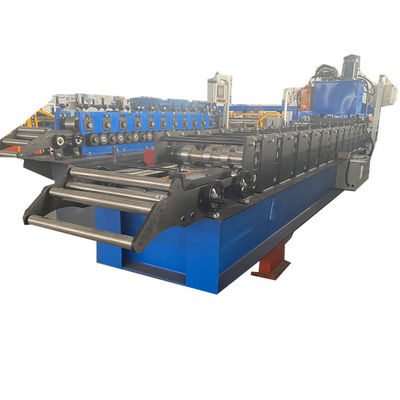

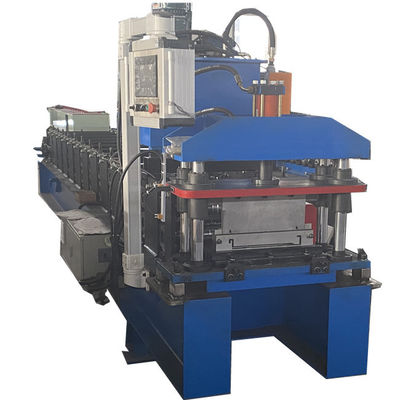

Height 38mm wall cladding panel 310 profile rolling forming machine:
Here are some machine parameters for your reference:
| Supported material | HR,CR,G/Z,PRE-PAINTED COILER |
| Material thickness | 0.5 to 0.7mm |
| Input coil width | 607mm(around) |
| Roller station | 12 roller stations |
| Rolling speed | 15M/Min |
| Shaft diameter | 60mm |
| Middle plate thickness | 20mm |
| Roller material | 45#steel |
| Shaft material | 45#steel |
| Transmission | By Chain of size 1 inch |
| Machine motor | 3 kw X2 motors |
| Shearing error | ±1mm |
| Cutting blade material | Cr 12 |
| Hydraulic oil | 46# |
| Machine motor power | 4kw |
Mechanically seamed metal roof height 38mm wall cladding panel 310 profile rolling forming machine working video for your reference:
