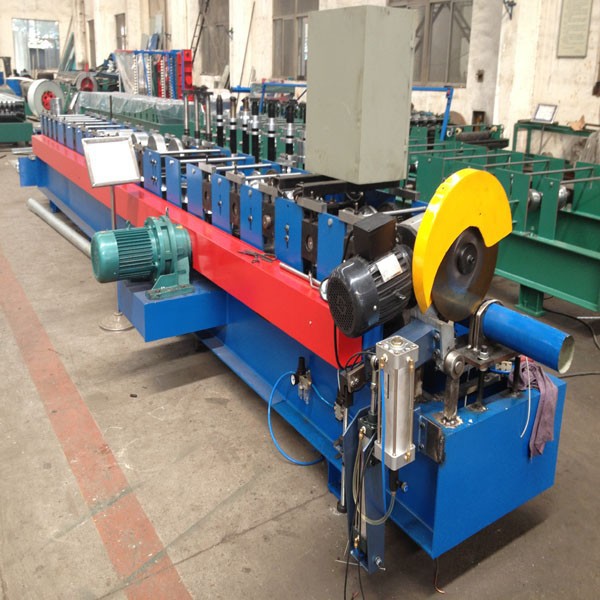

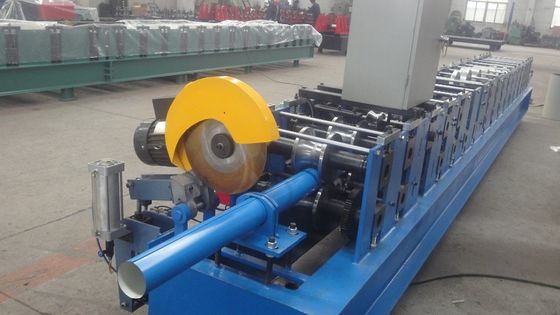

Steel Downspout Roll Forming Machine 0.3-0.8 mm Coil Sheet Thickness
1. Leak frame load-bearing:6T
2. Rack: welding with 300H steel
3. The form of forming machine guiding filling: side skip
4. The form of forming machine: chain drive with wallboard type, the thickness of wallboard is 12mm.
5. Diameter of Shaft is: 72mm
6. Chain: 0.6 inch single row
7. Main motor power:3kw double pole reduction box
8. Forming Speed: 8m/min
9. Number of tracks: 11 tracks

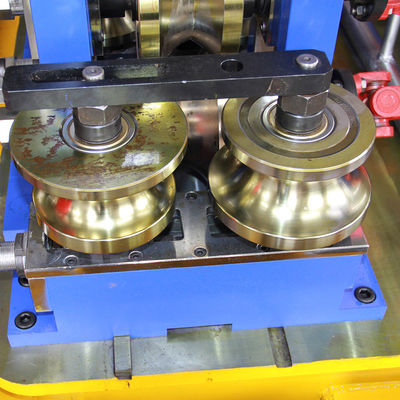

10. Roller material: high grade 45#steel
11. Hydraulic station power: 3kw
12. Hydraulic station oil pump: gearpump
13. Cutting type: hydraulic cut
14. Forming Cutting blade: Cr12
15. Heat treatment on cutting blade: HRC58°-60°
16. Thickness of coil sheet: 0.3-0.8mm
17. Coil width of material: 1000mm
18. Index error of length: ±2mm
19. Controlling system: PLC
20. Voltage: 380V 3phase 60 HZ or at buyer’s requirement

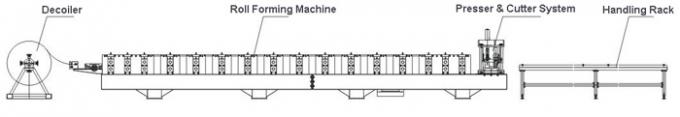

Working Flow of Roll Forming Machine
De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table
Our Services
Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available.
1. As the factory, we will recommend the right profile machine to customer, and give the professional advice.
2. Confirm the final decision during the discussion.
3. The sale person will give customer updates for each period during the production process.
4. We finish the machine within the confirmed date, and shipping the goods to cutomers safely and faster.
5. Provide the right documents to customers.
6. Give the tips(include photos, videos and manual) for installation and operation.
7. If the buyer can not make the installation or machine appeared the problems,
we will creat a group first with our technician and customer. To solve it in a short time.
8. If can not solve online, we will arrange the technician solve it overseas within one week.
The charge for technician include the visa, round tickers, food, accomdation and USD80/person/day for salary.
