Why Choose Our Corrugated Roof Tile Roll Forming Machine?
1. Designed for High-Speed Continuous Production
With a working speed of up to 40 meters per minute, the production line is designed to meet the needs of large-volume roofing projects while maintaining stable forming quality. The optimized transmission system ensures smooth operation even during long production cycles.
Unlike ordinary machines that focus only on speed, our system balances production capacity and forming accuracy.
2. Stronger Machine Structure, Longer Service Life
A stable frame is the foundation of precision.
The machine uses a heavy-duty frame structure with reinforced internal supports to improve rigidity and prevent deformation during operation or transportation. The main frame undergoes stress relief treatment after welding and precision machining to ensure long-term accuracy.
Compared with lighter structures on the market, our reinforced design provides better stability for continuous industrial production.

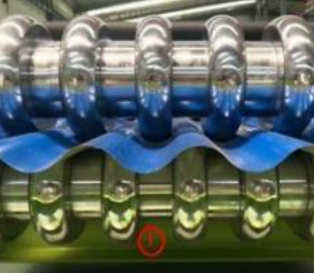

3. Precision Rollers for Perfect Roof Tile Shape
The forming rollers are manufactured from high-quality 45# steel and treated with chrome plating technology.
This smooth and hardened surface reduces wear, prevents corrosion, protects the coating of the metal sheet, and helps maintain consistent product dimensions throughout production.
The larger roller design and thicker spacer structure help prevent coil deviation during high-speed forming, ensuring every finished roof panel maintains accurate shape and quality.

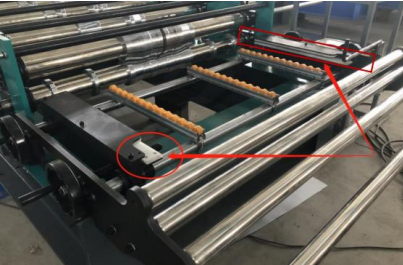

4. Advanced Feeding System Protects Your Material
Every finished product starts with stable feeding.
The feeding system uses multiple stainless steel guide rollers with built-in bearings, combined with nylon guide rollers, to protect the painted surface of the coil and prevent scratches during feeding.
This means fewer surface defects, less material waste, and higher production consistency.
5. Intelligent Control for Easier Operation
The PLC control system supports automatic control of:
- Production length
- Cutting quantity
- Machine speed
- Production parameters
The system can be equipped with Delta or Siemens PLC solutions, Schneider electrical components, and Omron encoder technology for accurate measurement and reliable operation.
Operators can quickly adjust production requirements through the touch screen interface, improving efficiency and reducing operation difficulty.
6. High-Precision Cutting System
The servo tracking cutting system follows the production speed and ensures accurate cutting performance.
The cutting unit adopts a balanced structure with dual guide columns and photoelectric switches, improving cutting stability, sensitivity, and service life.
Cutting accuracy can reach ±1 mm, helping manufacturers achieve consistent finished products.
Built for Manufacturers Who Need More Than a Machine
A roofing production line is not just equipment — it is the foundation of your production capacity.
Our High-Speed Curved Roof Tile Roll Forming Machine helps manufacturers achieve:
✓ Higher production efficiency
✓ More stable product quality
✓ Lower maintenance costs
✓ Reduced material waste
✓ Easier operation and maintenance
Whether you are expanding your roofing business or upgrading existing production capability, this machine delivers the reliability and precision needed for long-term growth.
Technical Highlights
- Coil Width: 914 / 1000 / 1220 mm
- Effective Width: 762 / 838 / 1000 mm
- Material Thickness: 0.35 mm
- Forming Passes: 19 stations
- Working Speed: 0–40 m/min
- Automatic PLC Control System
- Hydraulic Decoiler with Automatic Speed Matching

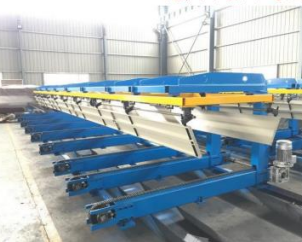

- Automatic Stacking System up to 6000 mm panel length
