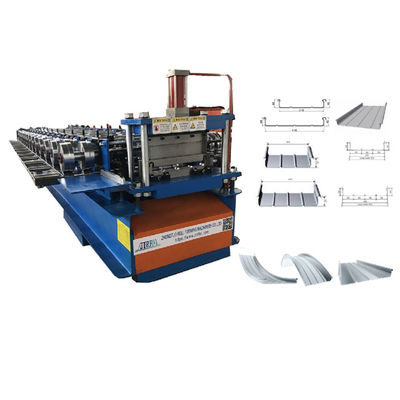

High load-bearing capacity standing seam roofing sheet machine with slitting and bending machine
High load-bearing capacity standing seam roofing sheet machine with slitting and bending machine is designed for making standing seam roofing sheets in batch fully automatically. It designed with adjustable width rollers and design, side roller processing method for special width.
With special shape slitting and cut to length machine.
With special bending and curving machine.
This is the shape changing process;
| Length of the main part | 7500 х 1650 х 1450 mm |
| Weight of main part | 6 Ton |
| Voltage | 380 V/ 50 HZ 3 Phase (as customer’s request) |
| Roller fixer | Middle plate welded |
| Frame | 350 H steel welded |
| Frame thickness | 18 mm thicker to be very strong |
| Drive mode | Chain of 1.25mm |
| Material of rollers | 45# steel, surface hard chromium plating. |
| Material of shafts | 45# steel |
| Diameter of shafts | Φ 70 mm |
| Number of rollers | 14rollers |
| Main power | 5.5kw |

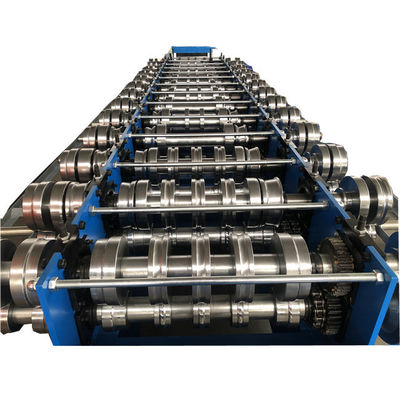

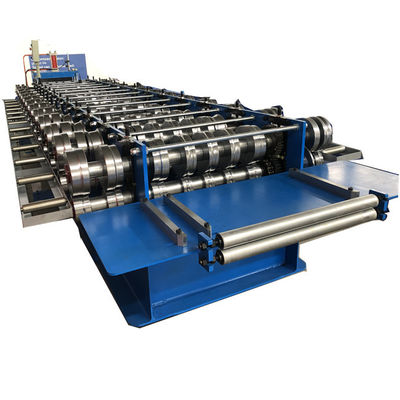

For this standing seam rolling forming machine, it has 3 parts:
1. Standing seam rolling forming machine, which two sides could be used to trimmed the narrow and oblique shape part.
2. It has the slitting and cut to length machine which can help you do the oblique slitting.
3. It has the curving machine, by which you can make various shapes.

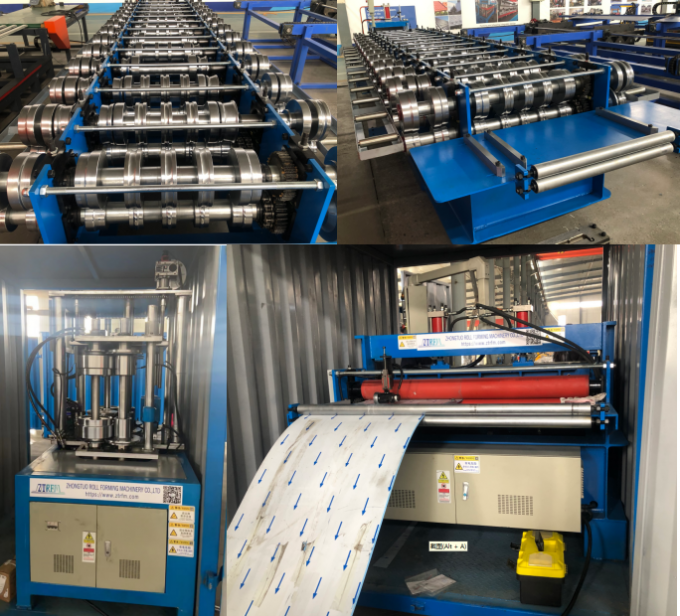

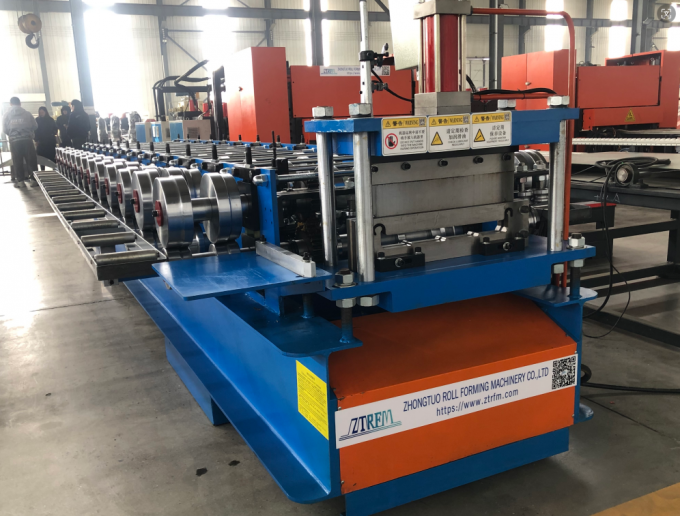

More pictures of the standing seam machine for your reference:
Here is the standing seam machine working videos for your reference:
