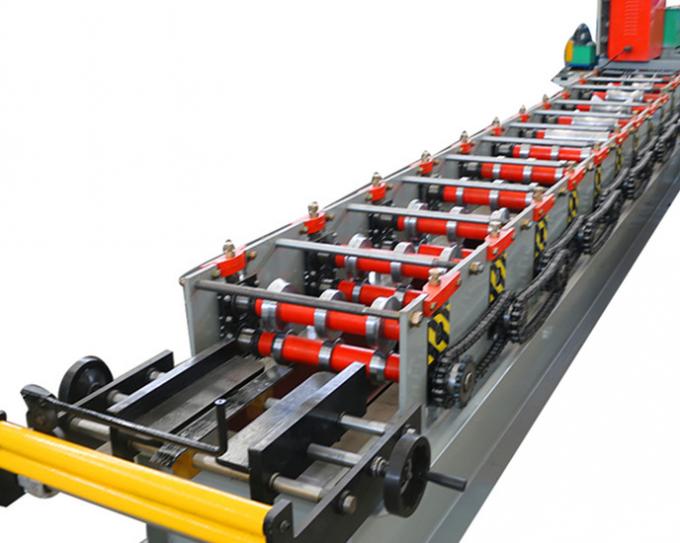

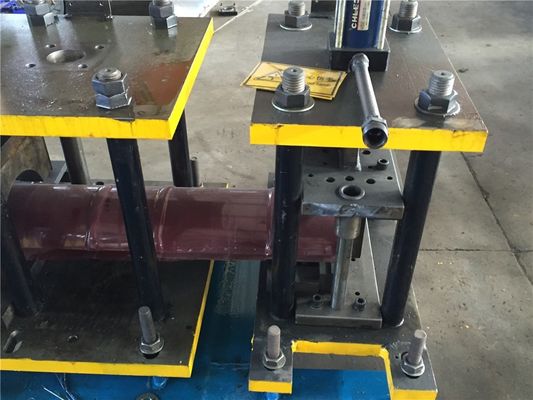

380V / 22oV Ridge Cap Tile Roll Forming Machine With Water Cooling System
Equipment Components:
Man-Made Uncoiler-Roll Forming Machine
Computer Control System Hydraulic Control System-Press Form-Cutting
Technical Parameters
| No. | Main parameter of Ridge cap tile roll forming machine | |
| 1 | Material | Color steel plate |
| 2 | Width of the plate | 400 mm |
| 3 | Rollers | 15rows |
| 4 | Main moter power | 3 KW |
| 5 | Hydraulic unit power | 3 KW |
| 6 | Thickness of the plate | 0.3-0.7mm |
| 7 | Max Forming Speed | 4 m/min |
| 8 | Diameter of the roller | Φ 70mm |
| 9 | Voltage | 380V 50Hz 3phases |
| 10 | Roller material | High grade S45C forged steel, coated with hard chrome. |
| 11 | Active Shaft Material | High grade S45C carbon wrought steel |
| 12 | Cutter blades | Cr12MoV steel with quenched treatment, hardness HRC58~61, |
| 13 | Type of cutting | Roll-formed and length-set profile cutting. |
| 14 | Electric Elements | PLC control console, touch screen and transducer, from Siemens, Germany. Other elements, from Schneider Electric, Germany. |
Packaging & Shipping
1. One 40ft container for loading one set machine with manual decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
Company Information
Our company has been built over 15 years,it is located in north of China,near from Tianjin port,we have strong selling team and exquisite technology
We are manufacturer of metal sheet roll forming machine for more than 15 years. We supply roll forming machine according to your products and requests.OEM and ODM
are acceptable. Color steel cold roll forming machine,CZU purlin making machine and
sandwich panel roll forming machine are our hot sell products.
We have CE,ISO,BV certificate, and strict control in the production line.
