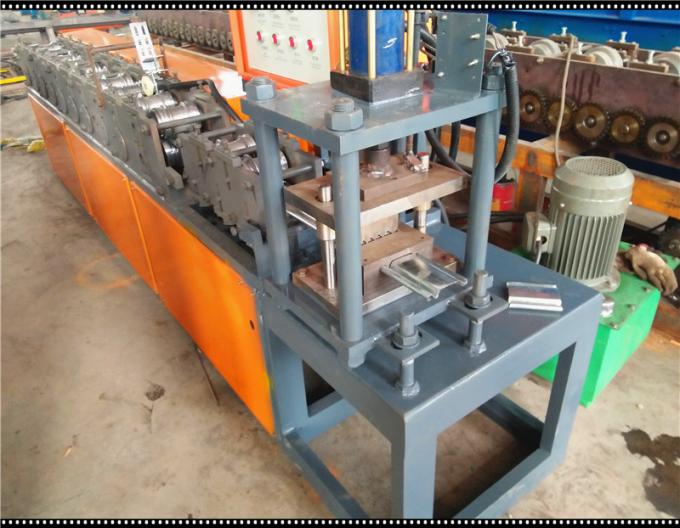

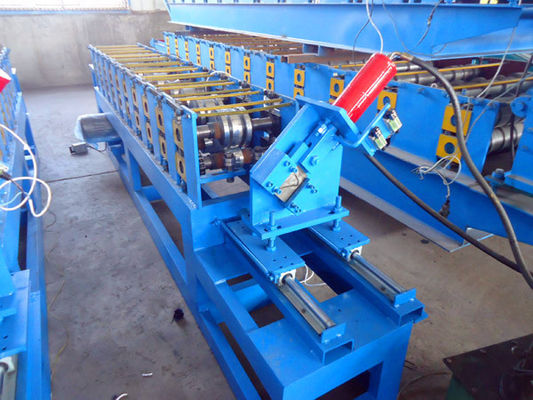

Steel Sheet Roll Forming Making Machine Shutter Door Frame
1. Main Components
Decoiler -------------------------------------------------- 1 Unit
Feeding guide ------------------------------------------ 1 Unit
Main roll forming machine --------------------------- 1 Unit
Hydraulic cutting device ------------------------------ 1 Unit
Hydraulic Station --------------------------------------- 1 Unit
PLC computer control -------------------------------- 1 Unit
Output table ---------------------------------------------- 1 Unit

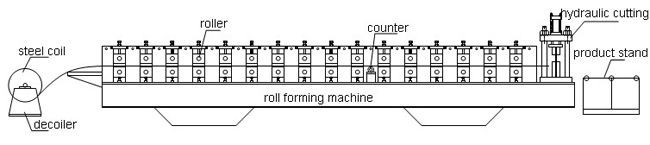

2. Technological process
Uncoiler-Feeding-Leveling-hydraulic punching-Hydraulic cutting-Roll forming-Output table
3. Technical drawing
4. Main Technical Parameters
| 1. Suitable material | Color steel sheet , galvanized steel sheet,aluminum sheet |
| 2. Installation Dimension (L*W*H): | 6.5m*1.5m*1.4m |
| 3. Main motor power | 4KW with Cycloidal reducer |
| 4. Hydraulic station power | 4KW |
| 5. Hydraulic oil pump | CB-E 310 |
| 6. Thickness of material | 0.3mm~1.0mm |
| 7. Diameter of principal axis | Φ70-90mm |
| 8. Material expand width | 1000-1250mm |
| 9. Electric tension | 380V 3phase 50HZ or as the customer's requirements |
| 10. Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 11. Controlling system | PLC |
| 12. Processing speed | 8-12m/min(glazed tile is 2-3m/min) |
| 13. Processing precision within | 1.00mm (depend on design) |
| 14. Material of cutting blade | Cr12 mould steel with quenched treatment |
| 15. Kind of drive | 0.6 inch chain link bearing model 6210 |
| 16. Roller station | 11-20 Rollers |
| 17. Roller material | high grade 45#steel; Cr12 quenching |
| 18. Leak frame load-bearing | 4.6T |
Packaging & Shipping
Packaging: Important Components Wiped Anti Rust Oil, Rollers and Shafters covered by foam film, Hydraulic station, PLC control Box, Spare parts and some small parts
Packed in plywood box. All Components Fixed by steel wire with Container.
Payment Terms: 30%T/T after signed the contract,balanced before delivery
