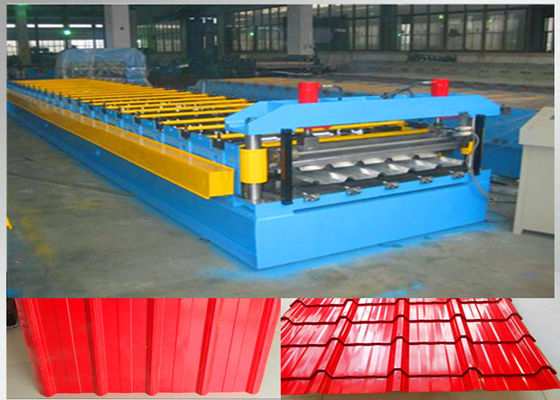

1100 Type Color Steel Roof Roll Forming Machine Used For Roof
1. what is the description of step tile roll forming machine
| Machine description | Quantity | Delivery time | Container type |
| step tile roll forming machine china | 1 SET | 40working days after deposit | 40GP |
2. what is the production process of step tile roll forming machine
Uncoiling--->Feeding material into machine-->Roll forming --->Measuring length --->Step formed--->Auto cutting--->Pruducts receving.
3. what is the specification of step tile roll forming machine
| Name | step tile roll forming machine |
| Material | Color steel sheet |
| Thickness | 0.3-0.8mm |
| Coil inner diameter | 450-550mm |
| Max coil out diameter | 1300-1600mm |
| Max coil width | 1250mm |
| Carrying capacity | 5T |
| Forming steps | 13rollers |
| Shaft diameter | 80 mm |

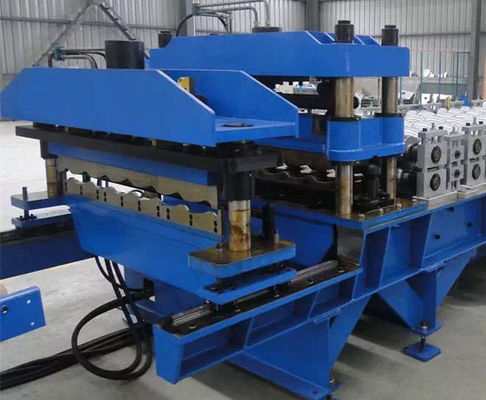

| Design type | pillar structure |
| Roller material | 45 # steel chrome plating chromium |
| Shaft material | 40Cr steel |
| Work speed | 4-12m/min |
| Transpor | by chain |
| Type of cutting | hydraulic |
| Cutting tolerance | whthin 1mm |
| Cutter | Gcr12 |
| Material of blades | Cr12 quenched |
| PLC | Delta |
| Counter | Omion |
| Voltage | as required |
| Dimension | 7000x1500x1910mm |
| Weight | About 5 T |
| Workers | 1-2 only |
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank , the pump drive the cutter machine to begin the cutting job.
Power: 4 kw
Hydraulic oil: 46#
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, four hydraulic pipes and two sets of electromagnetism valves.
