Glasswool / Rock Wool Sandwich Panel Production Line EPS Board
Working flow
Down side rigid board feed----Rolling rack----glue drop onto rigid board----glue sweep----EPS sheet load----- Rolling rack and lamination-----glue drop onto EPS Sheet----glue sweep----up rigid board feed ---Rolling lamination----finished product
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Laminating Machine | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
| 7. | Saw cutting device | 1 Set |
Parameter

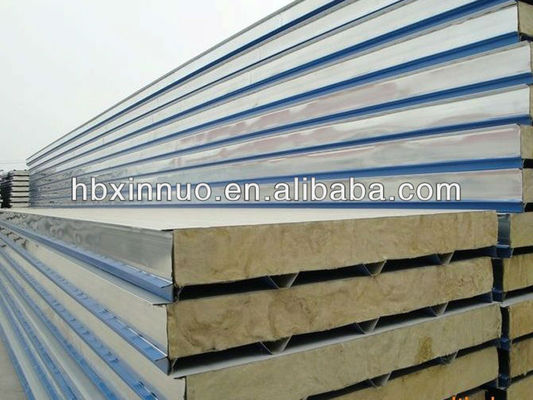

The fully automatic sandwich panel roll forming machine is the best machine which can produce the color steel and EPS or rock wool composite board, which is also named sandwich panel machine. It is special machinery equipment using the pneumatic, electric and mechanical as a whole to produce the color steel heat preservation, sandwich panel.
The working speed uses the frequency conversion stepless speed regulation, and can composite the corrugated sandwich panel one-time.
The fully automatic sandwich panel roll forming machine use the full automatic control system with high integrated network, to achieve production information management, so as to make the automation system more advantageous, with the operation, maintenance, maintenance and mechanical debugging, mold replacement easily and so on.
Technique parameters of the processing line
(1) Coil material: EPS, rock wool, glass silk floss and so on
(2) Thickness of the plate: 0.3-0.8mm
(3) Core thickness: 20-300mm
(4) Production capacity (according to your glue):
4-4.5m/min (the fastest), 2-2.5m/min(the slowest)
(5) Total power: about 30KW
(6) Weight: 25ton
(7) PLC control systerm, easy to operate, high precision and work stably.
(8) Dimensions of whole production line:
About Length45000mm × Width3600mm × Height3300mm

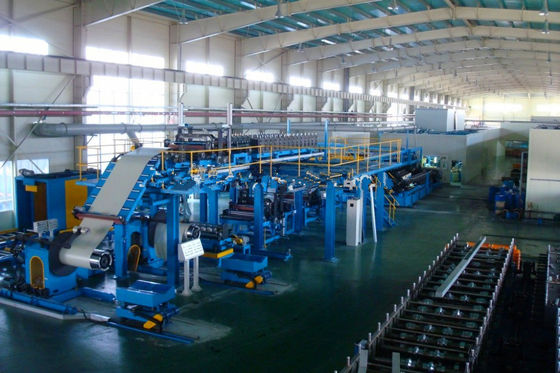

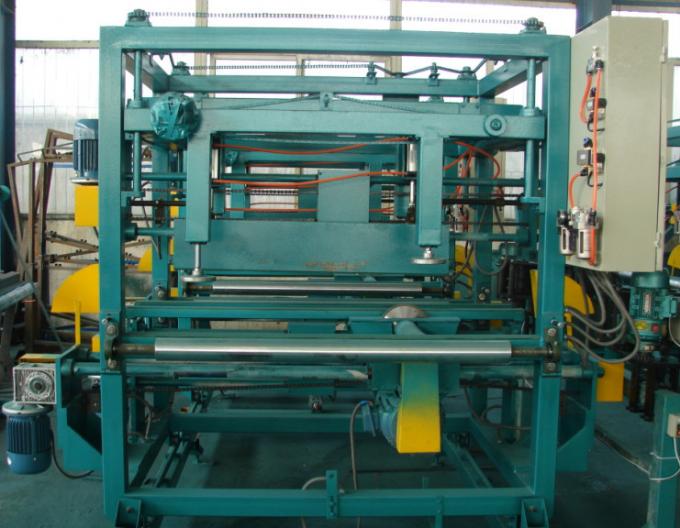

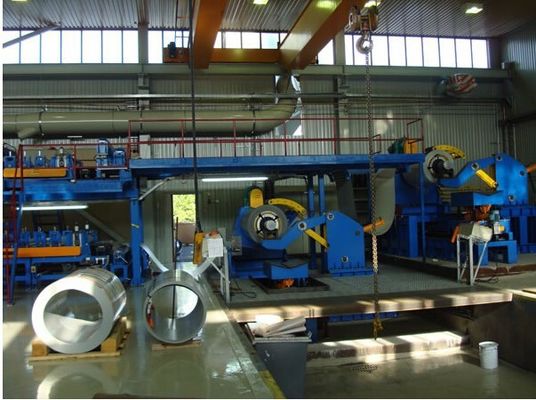

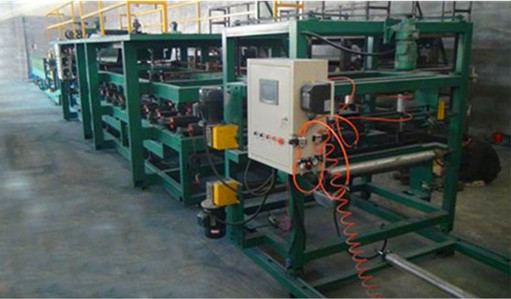

Machine Photos
