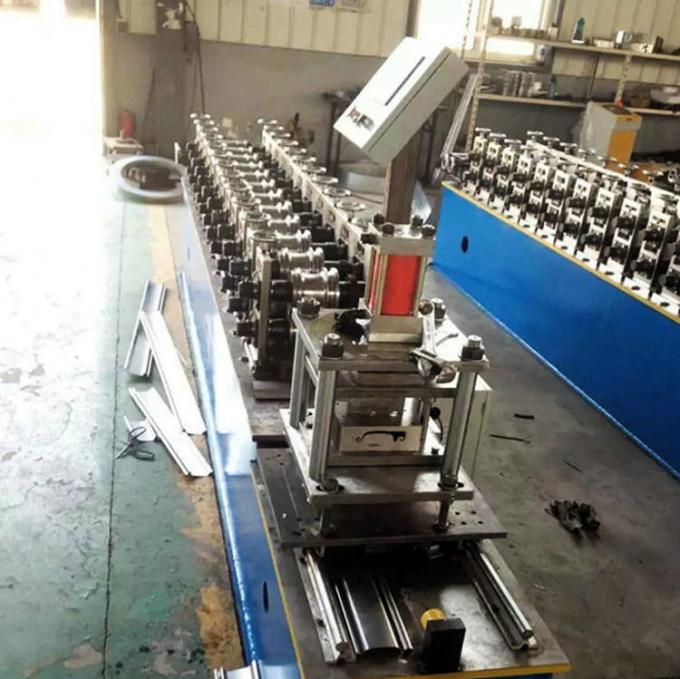

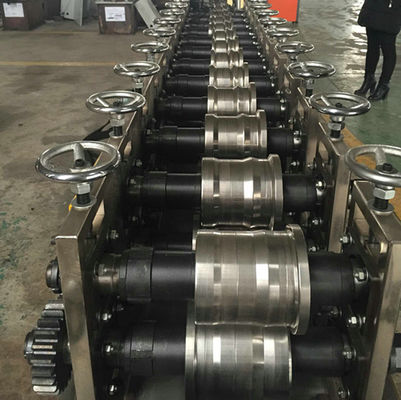

Roller shutter roll forming machine garage doors panels 8-15M/Min
Product Description
|
3T Manual decoiler |
|
| Coil weight (Max) | 3000kg |
| Inter diameter | 420mm-510mm |
| Maximal out diameter | 1300mm |
| Oil cylinder dia | 100mm |
| Coil width (Max.) | 500mm |
| Working speed | 0-15m/min adjustable |
| Hydraulic power | 3kw |
|
Main motor power |
4KW AC motor |
| Frequency converter brand | Yaskawa |
| Feeding | |
| Profile steel thickness | between 0.8mm and 1.5mm |
| Feeding system | adjustable by hand wheel |
| Feeding width range | 150-300mm |
| Feeding roller | diameter is ï¿ 56mm, material is ASTM52100, HRC58-62egeree |
| rectify device | |
| Function | for revise the end product up and down/ left and right to straightness |
| Roller material | Roller material: GCR15 quenched 58°-62°finishing turning CNC |
| Post cutting system | |
| Cutting after forming | Cut the sheet after roll forming to required length |
| Material of blade | Cr12, 58-62 HRC hardness |
| Cutting power by hydraulic | 7.5KW with Storage tank |
| Working pressure | 12Mpa adjustable |
| Length measuring | Automatic encoder length measuring |
| Working pressure | 10-20Mpa adjustable |
| Tolerance of length | 3000mm+/- 1.5mm
|
| out-table | |||
| Size | 2.0m long*0.3mwide*0.9mhigh | ||
| Supporter roller | ASTM 1045 with chrome | ||
| Diameter of rollers | 55mm | ||
| Quantity | 2 units | ||
| Hydraulic station | |||
| Hydraulic power | 7.5kw | ||
| Working pressure | 12-20Mp adjustable | ||
| Solenoid valve | 6 groups (one for cutting) | ||
| Hydraulic oil | 46# hydraulic oil | ||
| Quantity | 1 | ||
| Control desk | |||
| Operating system language | English and Chinese | ||
| Voltage, Frequency, Phase | 380 V, 50 Hz, 3Phase | ||
| Control panel | Button-type switch and touch screen | ||
| Unit of length | millimeter (switched on the control panel) | ||
| PLC brand | Panasonic | ||
| Frequency converter brand | Yaskawa | ||
| Touch screen | Taiwan Weinview | ||
Our machines have been exported to many regions and win high requtation because of the high quality and reasonable price.
Warmly welcome to visit our factory!
any question call me free!
