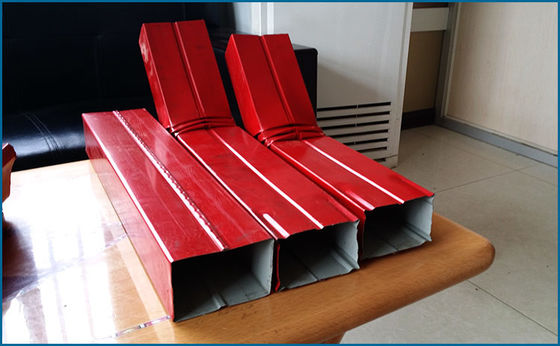

Double Screw Water Drain Round Pipe Roll Forming Machine 8-12 M / Min

Downspout elbow machine, water down pipe elbow machine, down pipe bending machine, water down spout bending machne. downspout Roll Forming Machine Line. The water down pipe roll forming machine or water down spout roll forming machine are used to provide the water system for PEB buildings. It consists of a downpipe, downspout roll forming machine and a bending machine and a narrowing machine for the joint of the pipes in PEB projects
Main Parameter
1) Steel Material: Color Steel or Prepainted Coil
2) thickness of material: 0.4-0.6mm
3) Feeding Width Max: 330mm
4) Capacity of Decoiler: 5000 kg
5) Inner Diameter of the Coiler: 500-600mm
6) Outer Diameter of the Coiler: 1800mm
7) Forming steps: 20 steps
8) Driving System: Chain Transmission
9) Power of main motor: 2.2kw
10) Reducer: Cycloid Pin
11) Power of Hydraulic cutting Machine: 3kw
12) Forming Speed Max: 15m/min
Flow Chart
Uncoiling – Infeed Guiding– Roll forming – Tighten – Hydraulic cutting – Run-out table

Specification of Components


No   Technical Specification & Remark
1

Hydraulic Uncoiler




  • Capability: 3 Ton
  • Mode of expand &fight: inner expand &fight by Hydraulic
  • Way of feeding: electrical
  • main power; 4kw
2

Main Roll Forming Machine


  • Roller material:ASTM1045 chrome plated surface with chrome
  • Shaft diameter: 65mm material: SAE1045 with tempering
3

Machine structure

  • Main frame by 350H beam welding
  • Machine structure: wall board panel
4

Hydraulic cutting system

  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,5.5KW
5

Hydraulic System






  • Hydraulic power: 5.5kw
  • Working pressure: 12-16Mpa adjustable



6

Computer Control Cabinet




  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • PLC: Panasonic
7

Out table

  • Size: 2 meters
  • Quantity: 2 units
  • manual out table
8

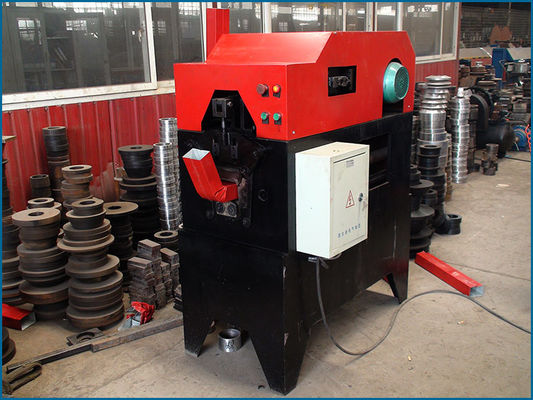

Bending machine




  • Max bend angle: 90°
  • Function: bend and fasten at the same time
  • power; 2.2kw



Application

The rain water down pipe profile machine is a narrow channel, or trough, forming the component of a roof system which collects and diverts rainwater shed by the roof. This roll forming machine is the essential for its production.
