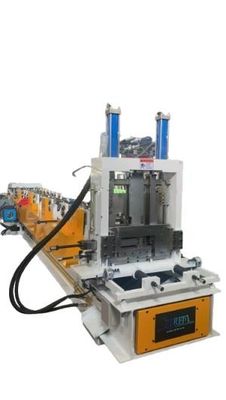

NLT-400 Computer Input Digital Transformation+Electric Button Transformation Roll Forming Equipment
Equipment model: NLT-400
Intelligent version servo motor: totally power 68KW drive
Speed: 30 meters per minute, comprehensive speed of 12 meters per minute to 15 meters per minute (depending on the number of holes drilled);
1. C width (80~350) mm, Z width (120~350mm) can be freely transformed;
2. Small edge (8-20mm) and small edge ≤ 0.8 * (waist height -20);
3. Waist height (30-100) mm and waist height ≤ 0.95 * (bottom width - small edge -30);
4. Adjustable plate thickness t (1.0~3.5) mm;
Length and hole position accuracy ± 1mm

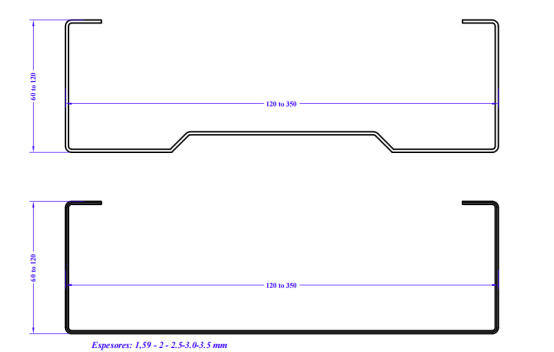

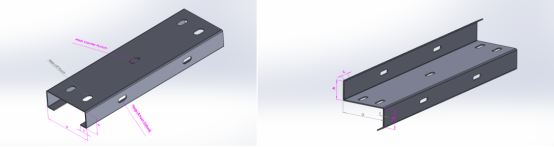

Here are some profiles for your reference:
Configuration requirements :
1.Material thickness :1.5-3.5 mm
2.Material yield strength: 235/345 Mpa ( if use 550 MPA material the thickness can’t more than 3mm )
3.Size : 100-300mm (it can be adjusted automatically )
4.Speed: max 15m/min ( If punching holes the speed will be 15-22m/min )
5.C and Z purlin changed by manual
6.Manual receiving table

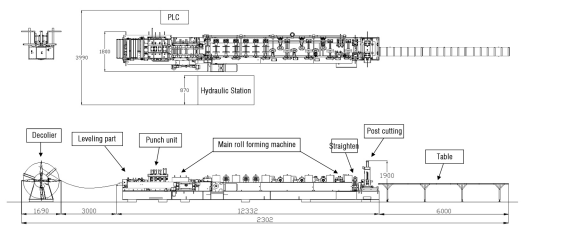

Working flow
Uncoiling → Feeding material into machine →Leveling → punching and pre-shearing →roll forming →Products receiving table
NLT-400 Computer Input Digital Transformation+Electric Button Transformation Roll Forming Equipment
| Main components | |||
| Item | Description of Item | Unit | Quantity |
| 1 | 6 ton decoiler | set | 1 |
| 2 | Main roll forming machine | set | 1 |
| 3 | Intelligent control system | set | 1 |
| 4 | Hydraulic station | set | 1 |
| 5 | Received table | set | 1 |
| 6 | Spare part | set | 1 |

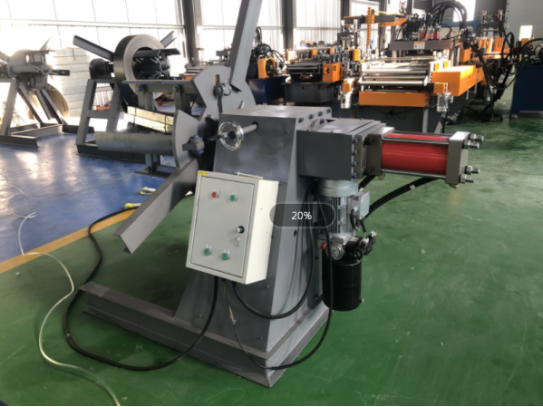

8 ton hydraulic decoiler
Capacity:6 tons hydraulic is optional
Coil inner diameter:450-550mm
Feeding width: max 500mm
Structure: welded by the steel plates and profiled bar.
The shrink and expand of coil is automatic , Drive by Hydraulic power.

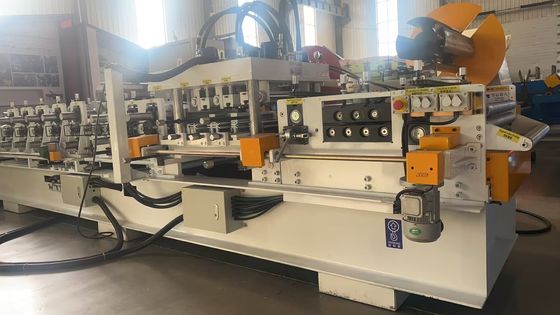

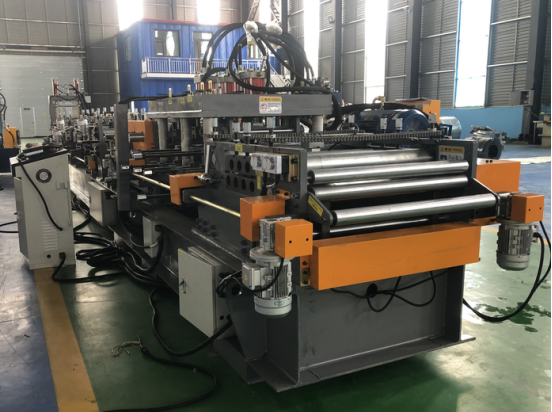

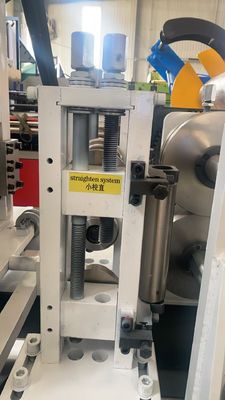

Feeding and leveling part

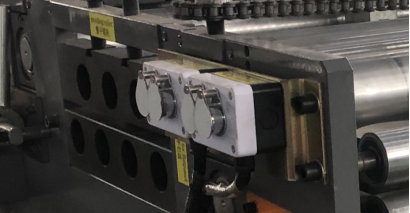

There is an electric button here, which can automatically adjust the feeding width
Leveling rollers: 3 up 4 down
Roller material: Cr15
Roller diameter: 75mm
Feeding width adjustment: automatic by button
Make sure inputted steel sheet straight and neat and then roll forming process could be made accurate

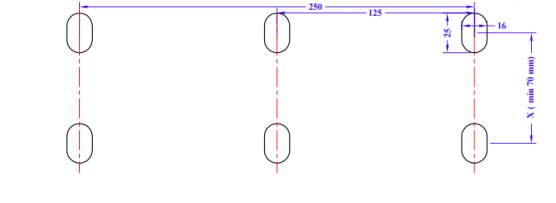

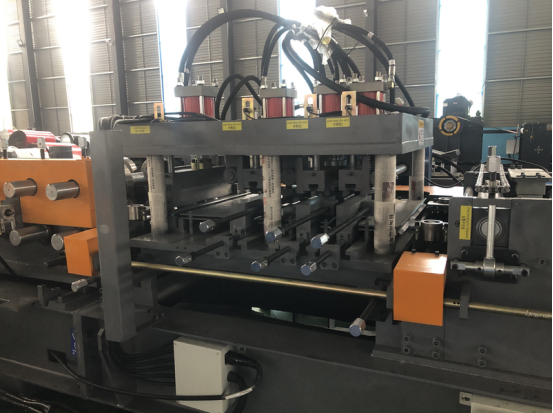

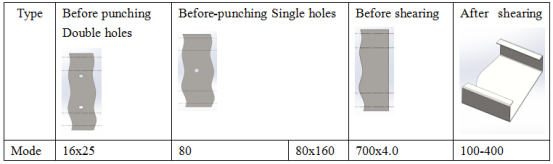

Punching and pre shearing part
Punching unit with hydraulic system;
One punching station
Punching mold:Gcr12 quenched treatment
Station 1: Bottom center holes punching
Station 4: Pre-Hydraulic shearing

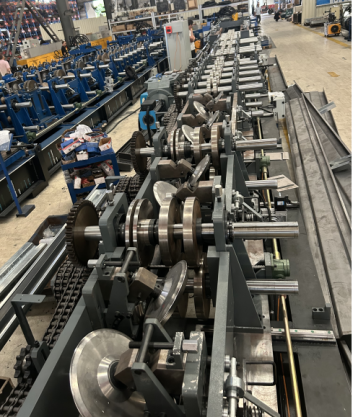

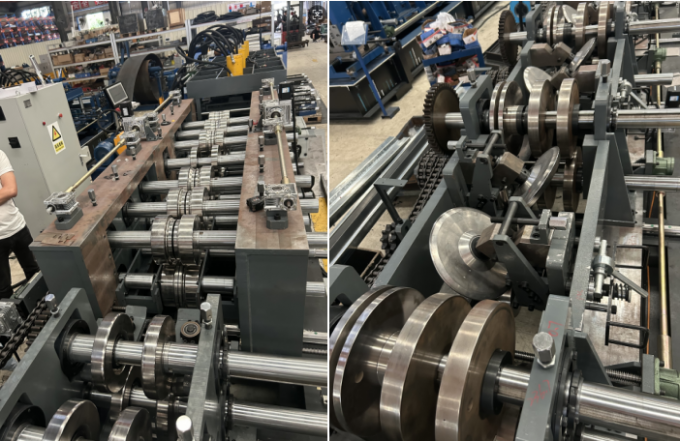

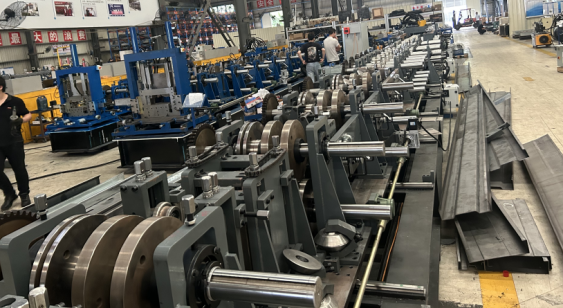

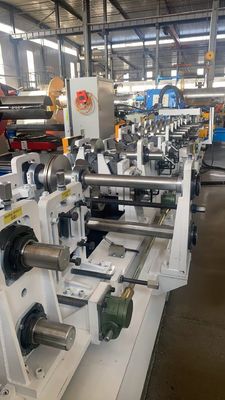

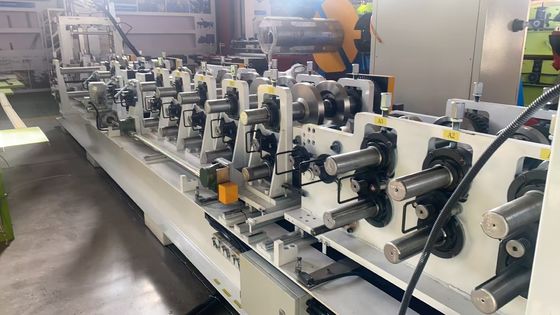

Main roll forming part
Roller stations :34 rows= One of them is the waist height forming 87-95 degree arbitrary adjustable roller group
Equipped with 12 sets of CZ exchange modules, the switch can be completed by rotating 180 degrees, and the linear guide rail can be changed
Anti concave arc roller device
Diameter of shafts:Φ90 mm solid
Double row chain for transmission+shaft end support
Material of shafts:
40 Cr CNC processing HRC28-32 ,finish turning and electroplate
Forming speed: max 15m/min
Voltage: 380V/60HZ/3P (as requested)
Transmission way :
Double chains + shaft end support
Sizes changing: Automatically by PLC
C and Z purling change : By manual
Roll material: Cr12, precision machined inner hole after vacuum heat treatment
Processing technology: CNC machining followed by heat treatment to HRC58-60, precision machining
Shaft material: 40Cr (diameter 90/diameter 75)
Processing technology: quenching and tempering treatment HRC28-32 after CNC processing, and then fine turning and electroplating

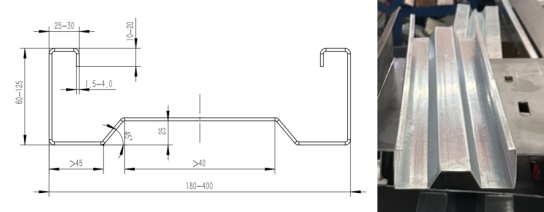

This part for ribs making of M purline
Width and height adjustable.

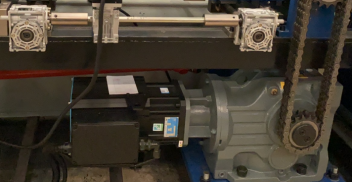

Drive the main drive servo motor 68KW

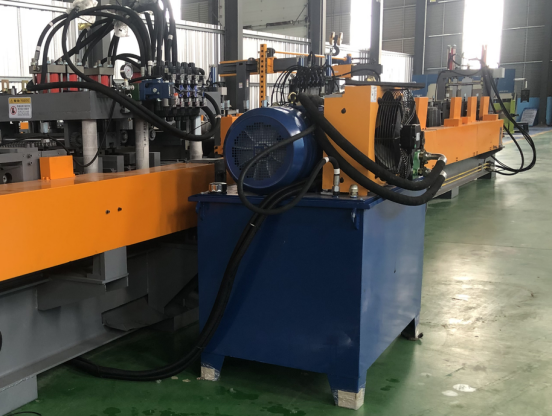

Punching and shearing hydraulic station power 15KW+air cooler
Fuel tank capacity 300 liters
Welding cylinder for punching and shearing
Main component origin solenoid valve oil research Yuci

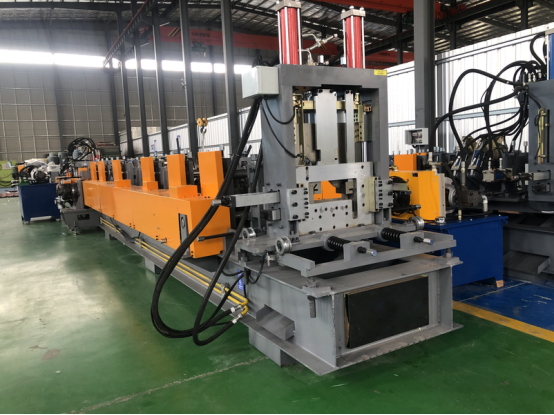

Hydraulic cutting system
Material of blade: Cr12mov quench treatment
Length measuring: automatic encoder measuring, tolerance of length is 1mm/3m

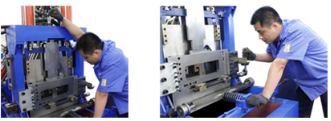

You can manually adjust the cutter to cut different sizes of c/z purlin. You do not need to change new blade and this cutter is easy to operate.
Punching and shearing use the same one hydraulic tank.
Tank volume: 300 liters
Hydraulic oil: 46#
Hydraulic station power: 15KW + air cooler
PLC Control system
Control system main control cabinet

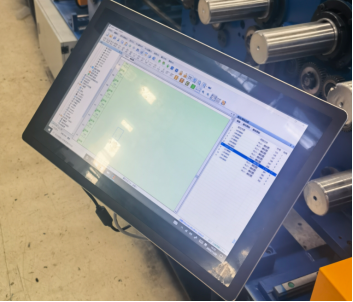

1 computer control+intelligent control system+production fast input software can quickly import production data from USB flash drive or remotely transfer genuine WINDOWS system
Replacement distribution box: 1 (installed in the middle of the rack)
External controller: 1 (can easily control forward and backward during production and debugging processes)
Origin of main accessories: PLC (Panasonic, Japan), computer control, relay (Couton), proximity switch (Autonex, South Korea), length encoder (Omron, Japan)

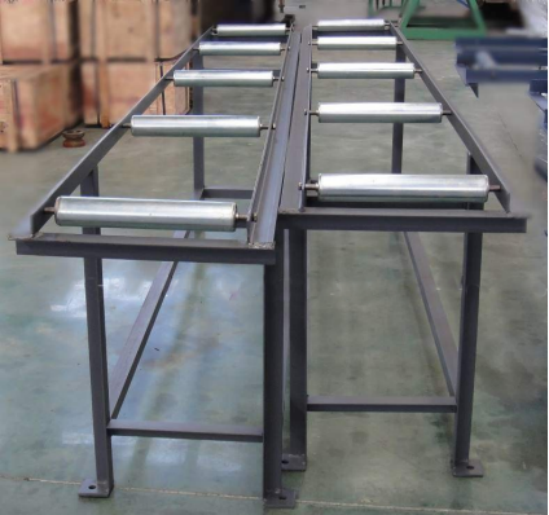

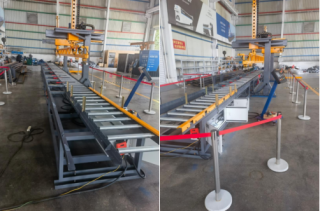

Received table
Length: 6 meters
The frame body is welded with channel steel and angle steel, and the roller is installed on the surface
Related suggestion:
If the local labor cost is high, you can also choose automatic palatalizing
Spare parts
| Spare parts | ||
| Item | Quantity | Pictures |
| Gears | 2 set |
|
| Chains | 2 set | |
| Bearings | 4 set | |
| Cutting blade | 1 set | |
| Punching mould | 2 set | |
| Relays | 2 set | |
| Limit switch | 2 set | |
| Encoder | 1 set | |
| Screws and bolts | 1 Pocket | |
| Tool box | 1 set | |
| Manual | 1 set | |
