Highway W Beam Metal Guardrail C Post Rolling Forming Machine

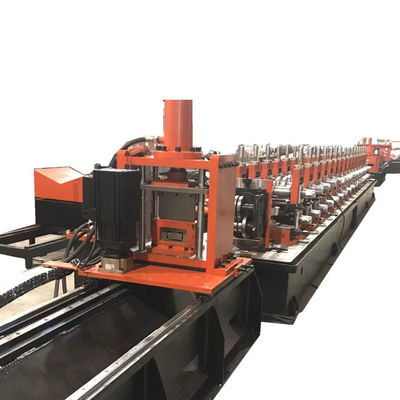

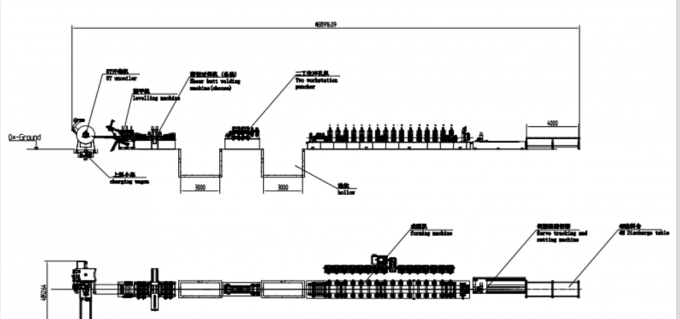

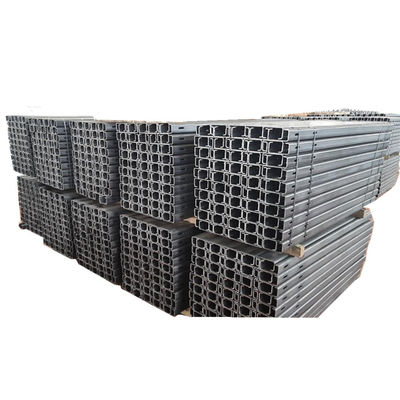

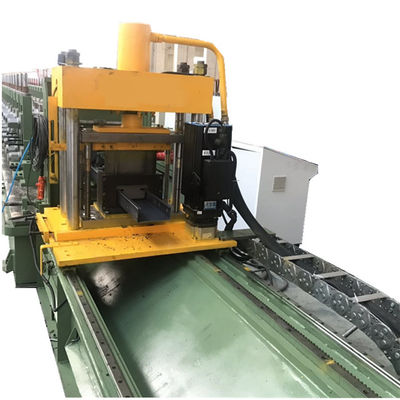

Highway guardrail C post is a popular type because of its advantage of low cost, higher security, environmental protection. This type of post is the most common applied post in the highway guardrail projects and can be hammered by different types of hammers. Highway W Beam Metal Guardrail C Post Rolling Forming Machine is designed to make the C post in batch fully automatically. Here we take the following drawing profile for your reference:

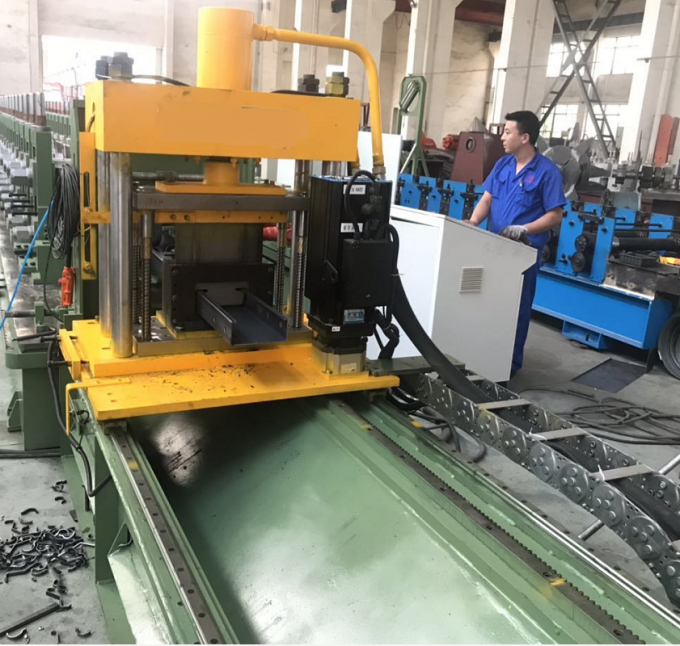

| Main elements for your reference | ||||
| No | Item Name | Type | Qty | (KW) |
| 1 | Hydraulic decoiler | 5 T | 1 SET | 5.5KW |
| 2 | Main rolling machine Molding frame+ gearbox with before punching one station (18.5kw) | 1 SET | 55KW | |
| 3 | Servo flying tracking saw | 80 MPM | 1 SET | |
| 4 | Receiving table | 40 meter | 1 SET | |
| 5 | PLC control system | PLC | 1 SET | |
| Main parameters of the rolling forming machine | |
| Supported material thickness | 3.8-5.0mm |
| Main power of the machine | 55 kw inverter motor. |
| Roller station | 16 |
| Roller material | Cr12Mov quenching, hardness HRC 60-62 degrees. |
| Main machine frame | Closed-integrated frame, cold-formed arch structure |
| Transmission method | Gearbox drive, spiral bevel gear |
| Main shaft diameter | 100mm, 40Cr quenching and tempering treatment |
| With cooling system | To protect the roller as working, roller will be very hot |
| Cooling method | Roller spray cooling. |
| Bearing brand | Heavy-duty Harbin bearing. |
| Inverter | Siemens |
| Encoder | High precision Omron |
| Main machine frame | Q235B, High temperature tempering to stress |

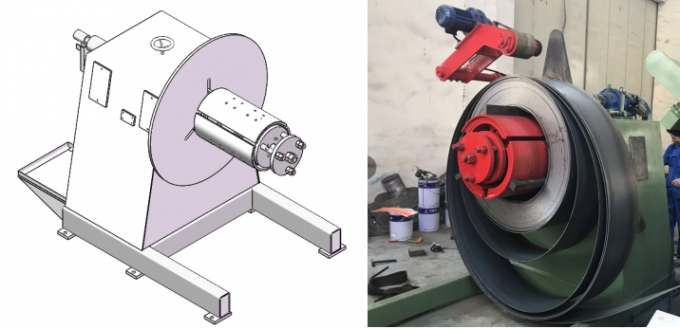

As to the decoiler, it is optional, we recommend the hydraulic decoiler with pressing arm and support table.

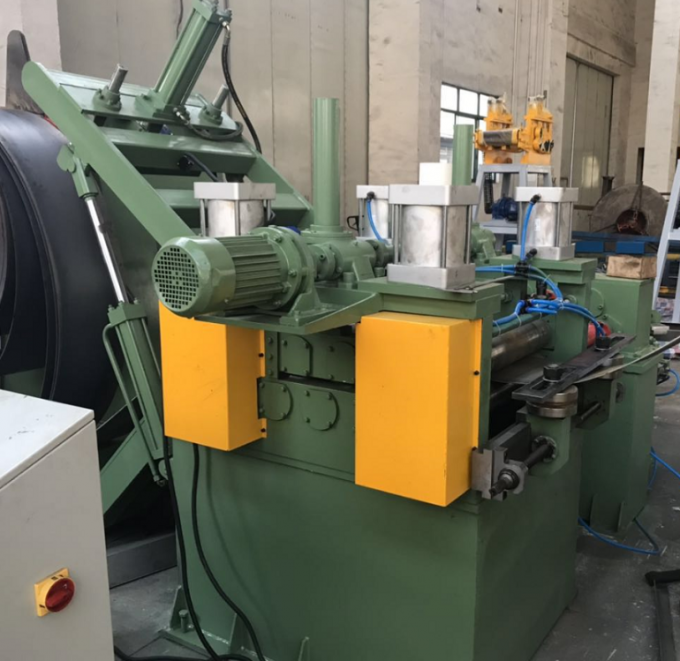

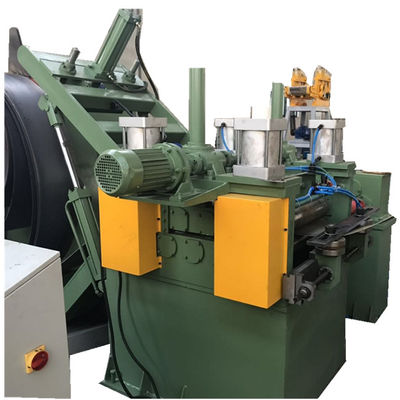

For the leveling part, we can make the leveling, shearing and welding together to make it more automatically
Rolling Forming Machine Part:
As to the stacker part, you can weld locally. Now let us check the machine working video to know more about this machine.
