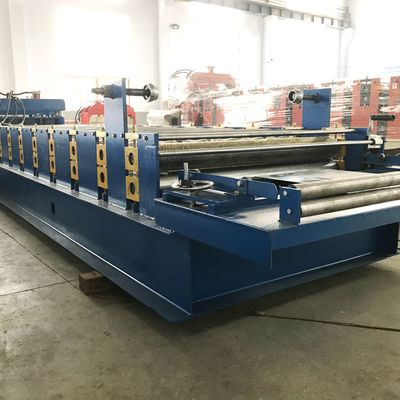

Building Material 800 Aluminum Roof Glazed Tile Making Machine Floor Sheet

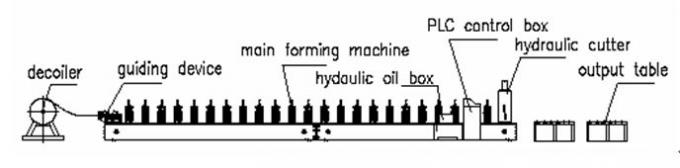

Working flow
Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Pressing Device | 1 Set |
| 4. | Hydraulic Cutting Device | 1 Set |
| 5. | PLC Control Box | 1 Set |
| 6. | Hydraulic Pump | 1 Set |
| 7. | Stacker | 1 Set |
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 1250mm | 1500mm |
| Capacity | Max 5tons | From 5-15 tons |
| Inner diameter | φ508-610mm | φ508-610mm |
| Outer diameter | φ1500mm | φ1800mm |

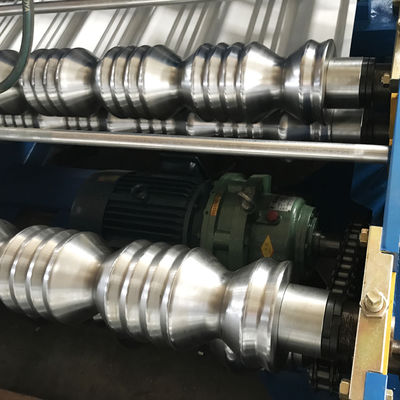

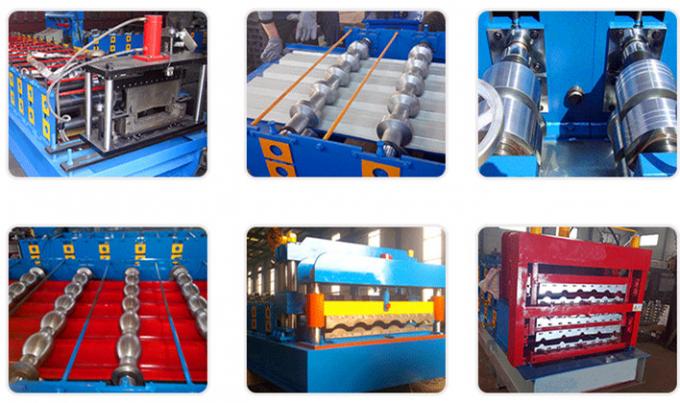

roll forming
(1) Suitable material: color steel
(2) Thickness of the plate : 0.3-0.8mm
(3) Input width of the plate: 1250/1000mm
(4)Width of the plate after forming: 1035/828mm
(5) Productivity :4-6m/min
(6) Roller steps :11rows
(7) Roller material: 45# steel Rolling chromium thickness:0.05 mm
(8) Diameter of active shaft: 70mm
(9) Wall thickness of the main forming machine:16mm steel plate
(10) Main forming machine body : 360mmH steel
(11) Transmission chain is1’’
Reducer is 5.5kw which works stably and no noise
(12) Cutting hydraulic systerm adpats CDF-10 gear pump,the motor power is 4kw,
no noise, work stably, long life expentancy.
(13) PLC control systerm, easy to operate, high precision and work stably.
(14) Dimensions of major structure:4600mm*850mm*800mm

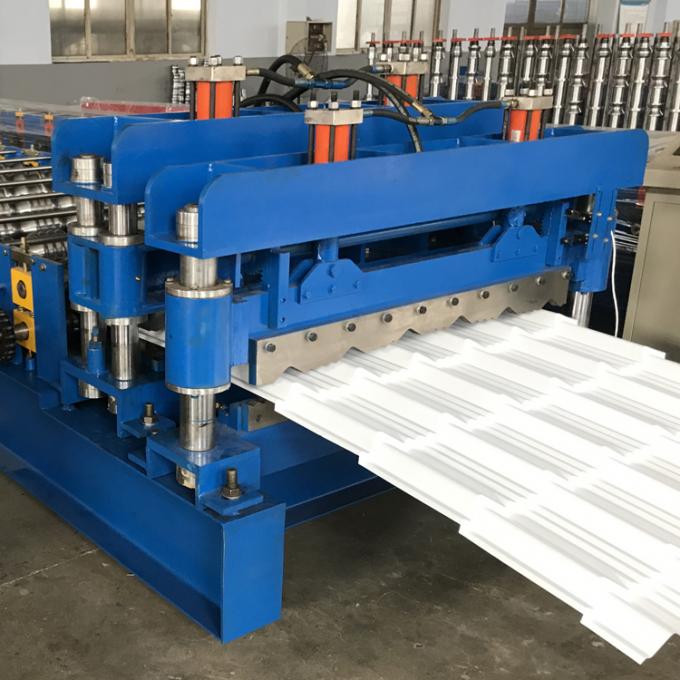

Pressing and cutting device
| Type | bearing sliding type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing | the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Stacker
| Type | Manual | Auto(option) |
| Length | 1.5m-2m | 6m or 12m |
PLC
| Main item | Parameter detail |
| PLC | Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor | 3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |
