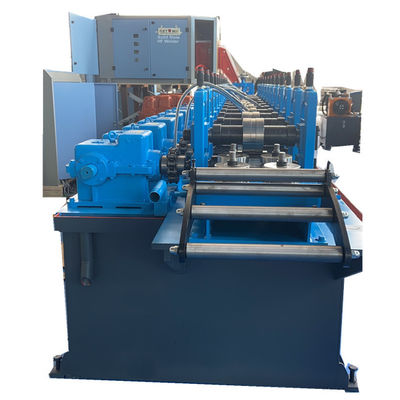

Automatic Laser Welding Shutter Shaft Tube Maker
Our Automatic Laser Welding Shutter Shaft Tube Roll Forming Machine is designed for high-quality batch tube production, combining advanced technology with strict quality control for exceptional performance in tube manufacturing.
Uncompromising Quality for Shutter Shaft Tubes
Engineered to meet the highest straightness criteria for both locked seams and entire tube length. Specialized packaging solutions ensure protection during transportation with custom-made cartons and skids.
Flexible Welding Options
- Laser Welding: 7-13 meters per minute - ideal for precision applications
- HF Welding: 70-120 meters per minute - perfect for high-volume production
Core Components
- Main Roll Forming Structure: 7 horizontal stands with 40Cr steel shafts
- Vertical Stands: 7+2 sets with HT200 cast iron bodies
- Drive System: 3 ZhuJiang Brand gear boxes (1:30 ratio)
- Electrical Protection: Schneider MCB for overload protection
Advanced Laser Welding System (Model LV-Z3000)
| Feature | Specification |
|---|---|
| Laser Power | 3000W |
| Wavelength | 1080±5nm |
| Spot Size | φ0.2-1.8mm |
| Welding Depth | 2-5mm |
| Power Adjustment | 10-100% |
Custom Solutions Available
We offer customized shutter tube machines based on your specific drawing profiles, including adjustments to tube dimensions, material compatibility, and special functions.
See the Machine in Action
Contact us to request access to our detailed working video showcasing the entire production process from raw material feeding to finished tube output.
Contact Us for a Personalized Quote and Technical Support
