Three Profiles. One Powerful Production Line.
Trapezoidal Roofing Sheet
A practical solution for industrial buildings, warehouses, and commercial roofing applications.
Corrugated Roofing Sheet
A classic roofing profile known for its strength, durability, and wide application range.
Metal Tile Roofing Sheet
A decorative roofing solution combining traditional tile appearance with modern lightweight metal technology.
With three production modes integrated into one machine, manufacturers can easily switch between different roofing styles according to customer requirements.
Designed for Reliable Industrial Production
Strong Machine Structure for Long-Term Performance
The machine frame adopts a 400mm H-beam structure with an 18mm welded steel middle support plate, providing excellent rigidity and stability during continuous operation. Additional diagonal braces strengthen the frame structure and reduce deformation risks.
After welding, the frame undergoes vibration stress relief treatment and precision machining to ensure better horizontal accuracy and long-term durability.

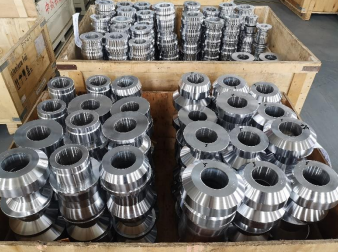

Precision Roll Forming System
The forming rollers are manufactured from high-grade 45# forged steel with chrome surface treatment.
The chrome-plated rollers provide:
✓ Smoother surface finish
✓ Higher hardness
✓ Better wear resistance
✓ Improved corrosion protection
✓ Longer service life
Each profile uses 13 forming stations, ensuring accurate shaping for Trapezoidal, Corrugated, and Metal Tile roofing sheets.
Separate Rolling Design for Better Sheet Quality
Unlike conventional forming methods, this machine adopts a separate rolling design concept.
This structure helps release internal stress from the metal sheet during forming, allowing finished panels to achieve:
- Better shape consistency
- Higher forming accuracy
- Improved surface quality

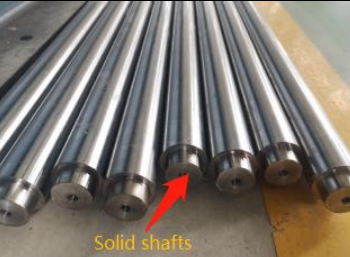

Stable Transmission System
The machine uses:
- Φ70mm solid shafts
- Heat-treated 45# steel shafts
- 3/4 double-strand chain transmission
The solid shaft structure provides stronger load capacity and more stable operation compared with lightweight shaft designs.
The hardened helical gear reducer with a 5.5KW main motor ensures smooth and reliable power transmission.

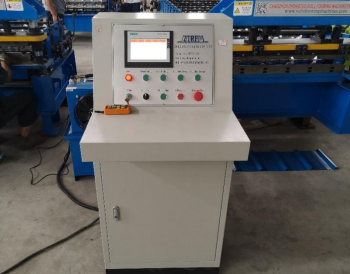

Smart PLC Control, Simple Operation
The control system is equipped with:
- Delta PLC
- Delta touchscreen
- Delta inverter
- Omron encoder

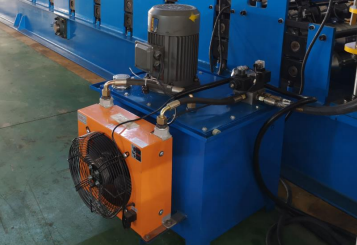

- Yuken hydraulic components
Operators can easily set:
✓ Product length
✓ Production quantity
✓ Operating parameters
The aviation plug connection design also makes installation faster and maintenance easier.
Surface Protection Starts From Feeding
The feeding section is designed to protect every coil surface.
It includes:
- Adjustable feeding width by hand wheels
- Stainless steel guide rollers
- Plastic guide rollers
These components help the material enter smoothly while reducing scratches on coated steel sheets.
Key Product Advantages
1. Three Machines in One Investment
Produce:
✓ Trapezoidal Roofing Sheet
✓ Corrugated Roofing Sheet
✓ Metal Tile Roofing Sheet
with one integrated production solution.
2. Reduced Factory Space Requirement
Instead of installing multiple production lines, one triple-layer machine provides multiple roofing profile capabilities, helping optimize workshop space.
3. Flexible Production for Changing Markets
Roofing demand varies by region and project.
With three profile options available, manufacturers can quickly adapt to residential, commercial, and industrial roofing requirements.
Technical Highlights
Machine Type: Triple-Layer Roll Forming Machine
Production Profiles:
- Trapezoial 840
- Corrugated 836
- Metal Tiles 840
Material Thickness: 0.3–0.6mm
Coil Width: 1000mm
Material: PPGI, PPGL, Q195-Q235
Forming Stations:
13 rows for each profile
Forming Speed:
- Trapezoidal & Corrugated: 0–10 m/min
- Metal Tile: 0–3 m/min
Transmission: 3/4 Double-Strand Chain Drive
A Smarter Choice for Roofing Manufacturers
A successful roofing business needs the ability to produce more products with less investment.
The Triple-Layer Roll Forming Machine gives manufacturers the freedom to serve different markets while maintaining reliable quality, efficient production, and lower equipment costs.
One machine. Three roofing solutions. Unlimited possibilities.
