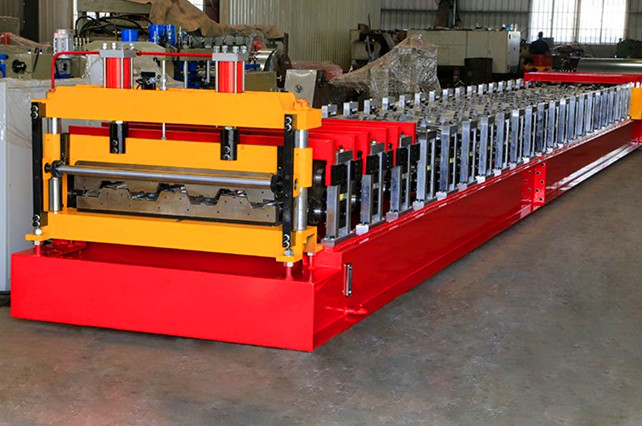

380V / 220V 50Hz Floor Deck Roll Forming Machine With Water Cooling System
1. Technological process
Uncoiler—Feeding—Leveling—hydraulic punching—Hydraulic cutting—Roll forming—Output table
2. Main parameters
| ModelJK | JK-1050 |
| Forming size | 6000mm*1600mmx1700mm |
| weight | 4.5T |
| Material of the machine | |
| Made board | 16mm |
| Big frame | 350H steel welding |
| Drive | By chain |
| Chain | 1 inch inside |
| Wheel | Gr12 |
| Molding shaft dimension | 70 |
| Axis | 45# steel |
| molding number rows | 13row |
| Main motor power | 5.5kw |
| Hydraulic unit power | 4kw |
| Working speed | 8-10m/min |
| Rolling material thickness | 0.3-0.8mm |
| Molding plate | |
| Cover width | 988mm |
| Coil width | 1200mm |
| wave height | 25mm |
| Wave length | 78mm |
3. Components of line,work flow
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main machine(roll forming machine) | set | 1 |
| 3 | PLC Control system | set | 1 |
| 4 | Hydraulic system | set | 1 |
| 5 | Automatic cutting | set | 1 |
| 6 | Production table | set |
1
|
Our Services
Before sale service: You can contact us ask any questions you want to know about our machine, we will provide perfect answer to solve all your doubt.
On sale service: Once the business begin, we will provide the pictures and videos to let you understand the situation of your machine during our production.
After sale service: We can teach and train your worker/ technician how to install and operate the machine face to face; if can’t, our user manual and video also can let you learn how to install and operate easily. If necessary, we also can arrange our engineer to customer’s factory to provide technical support.
