8-15M/Min Speed Guardrail Roll Forming Machine Shaft Dia 90MM 10Mpa
Technique parameters of the processing line
1. Main size:14000*2400*1300MM(L*W*H)
2. Total weight:about 20 ton
3. Main power:30KW
4. Reducer:use PM650 type,radio:1:31.75
5. Main frame:400MM H steel
6. Gear box base: use steel welding, planing above

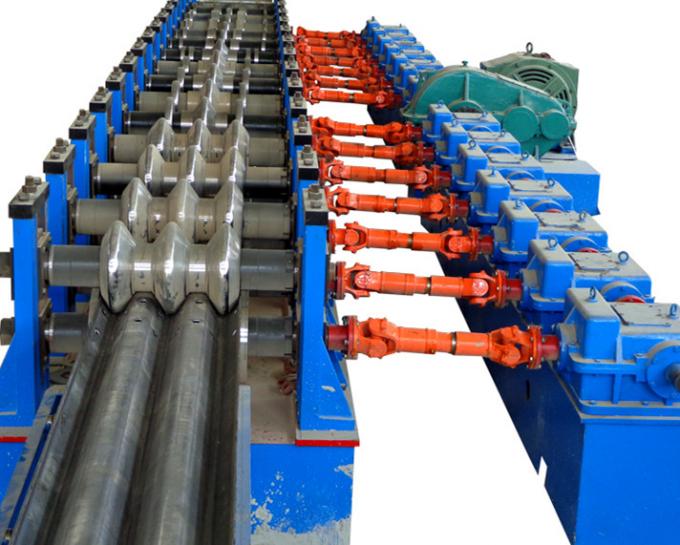

7. The gear box and the spindle are connected by universal joint
8. Medium plate thickness: 20MM
9. Main shaft: GB 45 # steel, quenched and tempered, shaft diameter 80MM
10. Bearing: Harbin Bearing, Model 6215
11. Roll mold: GB bearing steel, rough machining by ordinary lathe, CNC finishing, quenching, surface polishing, hard chrome plating.
12. Roll row number: 16 steps
13. Roller thickness: 2-4MM
14. Plate speed: 3 to 5 m / min
Processing technique and deployment
Processes: Man-made un-coiler—Roll forming machine—PLC system—Hydraulic system—Receiving table
Components of line:
(1). Man-made un-coiler set
(2). Main machine for roll forming set
(3). Control system set
(4). Hydraulic system set
(5). Receiving table Set
| No. | Name | Unit | Qty |
| 1 | decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Electric motor | set | 1 |
| 7 | Output table | set |
1
|
Technology We have technical centers and innovative designing teams for different kinds of production lines.
After Sale Service Warranty period 1 year , after this period , we are willing to give help if customer needs accessory . The real cooperation will not end at the delivery . we believe that satisfied after sale service means a lot.
Inspected by the Sellers After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop.
Inspected by the Buyers After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the production lines in our factories.
