Forged Steel Metal Embossing Machine CNC Engraving 15m/ Min Wood Pattern

Forged Steel Metal Embossing Machine CNC Engraving 15m/ Min Wood Pattern
Forged Steel Metal Embossing Machine CNC Engraving 15m/ Min Wood Pattern Forged Steel Metal Embossing Machine CNC Engraving 15m/ Min Wood Pattern Forged Steel Metal Embossing Machine CNC Engraving 15m/ Min Wood Pattern

Large Image :  Forged Steel Metal Embossing Machine CNC Engraving 15m/ Min Wood Pattern

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE, SGS
Model Number: 002
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude with anti-rusting coil
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 SETS/MONTH

Forged Steel Metal Embossing Machine CNC Engraving 15m/ Min Wood Pattern

Description
Embossing Roller Material: Forged Steel Thickness: 1~2mm
Width Of Pressed Material: 1000mm Speed: 15m/min
Pattern: Wood Grain Pressed Material: 304 Mirror Stainless Steel
Roll Hardness: ≧HRC55-58; Roll Pattern: CNC Engraving
Center Height: 850mm
High Light:

Forged Steel Metal Embossing Machine

,

CNC Engraving Metal Embossing Machine

,

15m/ Min Steel Embossing Machine

                                               Wood Pattern Metal Embossing Machine

Wood Pattern Metal Embossing Machine is designed to make the wood pattern embossing in batch fully automatically. The wood pattern metal embossing mainly is used in the production line of metal carved exterior wall panels which is a new type of environmentally friendly lightweight building materials that are currently popular in the world, and decorative wall panels mainly based on polyurethane foam. It can produce fire-retardant and flame-retardant thermal insulation decorative wall panels whose surface is steel plate, the middle is polyurethane, and the bottom surface is aluminum foil or steel plate. Polyurethane foam insulation board continuous production line main unwinder-→embossing machine-+leveling→side forming machine-heating platform-→AB material foaming machine injection-laminating machine-→saw board cutting-+painting -Packaging and other components. Take following wood pattern metal embossing for your reference:

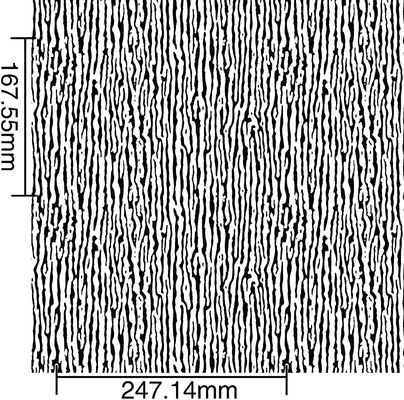

Drawing profile of the wood pattern

Main parameters of Wood Pattern Metal Embossing Machine for your reference:

1. Embossing roller material: forged steel

2. The thickness of the pressed material: 1~2mm

3. Width of pressed material: 1000mm

4. Speed: 15m/min

5. Pattern: wood grain

6. Pressed material: 304 mirror stainless steel

7. Pattern depth: 1mm, adjustable pattern depth (according to sample depth)

8. Embossing roll specification: ø410*1100mm

9. Roll structure: integral forging;

10. Heat treatment of rolls: finishing of forgings and intermediate frequency quenching of rolls;

11. Roll hardness: ≧HRC55-58;

12. Roll pattern: According to drawing requirements: CNC engraving;

13. Rolling mill stand; steel plate combined structure

14. Rolling mill drive; adopts frequency conversion speed regulation

15. Embossing method; turbine and scroll pressure regulation (electric pressure regulation)

16. Center height (between the ground and the two rollers): 850mm

17. Electric control part; independent control cabinet

18. The gap between the rolls can be adjusted

19. Flower roller: detachable to change the roller.

21. Cycloidal pinwheel reducer: XWD7-11

22. Frequency conversion motor power: 11KW/380V(50Hz)

22. Inverter brand: Shenzhen Ouke

23. Three-phase asynchronous motor: Nanjing Shunbai Motor Co., Ltd.



Wood patten metal embossing machine

Overall dimensions of a single unit:

3200mm*1000mm*1600mm (take the actual product as the standard)

Single embossing machine: 6500Kg (based on the actual weight)

The following is the supporting table of metal embossing machine.

Supporting table of metal embossing

The following is the supporting table:

Leveling machine of metal embossing

The samples of wood pattern metal embossing sheet:

Wood pattern metal embossing sheet
