IBR Metal Roofing Sheet Rolling Machine 7.5kw PPGI To EGYPT

IBR Metal Roofing Sheet Rolling Machine 7.5kw PPGI To EGYPT
IBR Metal Roofing Sheet Rolling Machine 7.5kw PPGI To EGYPT IBR Metal Roofing Sheet Rolling Machine 7.5kw PPGI To EGYPT IBR Metal Roofing Sheet Rolling Machine 7.5kw PPGI To EGYPT IBR Metal Roofing Sheet Rolling Machine 7.5kw PPGI To EGYPT

Large Image :  IBR Metal Roofing Sheet Rolling Machine 7.5kw PPGI To EGYPT

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE, SGS
Model Number: 002
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude with anti-rusting coil
Delivery Time: 45 WORKING DAYS
Payment Terms: D/P, L/C

IBR Metal Roofing Sheet Rolling Machine 7.5kw PPGI To EGYPT

Description
For Market: Egypt Material: PPGI Or GI
Speed: 15 To 20 Meter Per Minute Shaft Diameter: 80mm
Decoiler: Manual Or Hydraulic Stacker: Manual One Or Hydraulic One
Color: Customize Motor Power: 7.5kw
High Light:

IBR Metal Roofing Sheet Rolling Machine

,

7.5kw Metal Roofing Sheet Rolling Machine

,

PPGI Sheet Metal Forming Machine

                             IBR METAL ROOFING SHEET ROLLING MACHINE TO EGYPT

Roofing sheets are an effective, modern solution for any roofing requirements. They can be used as a standalone roofing material or as cladding for an existing structure. Our expertise and dedication to providing you with a great product is apparent with our roofing sheets by our rolling forming machines. Here we will take some popular design of IBR for Egypt for your reference:

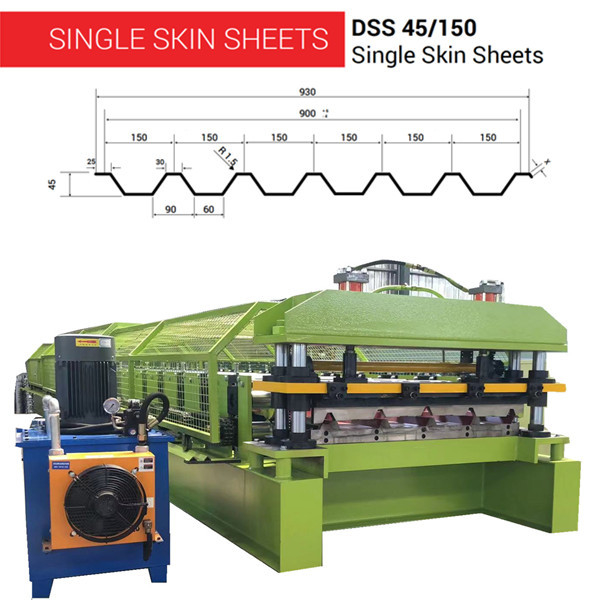

IBR Metal Roofing Sheet Rolling Machine 7.5kw PPGI To EGYPT 0

Finished products of metal roofing sheet:

IBR Metal Roofing Sheet Rolling Machine 7.5kw PPGI To EGYPT 1

IBR METAL ROOFING SHEET ROLLING MACHINE TO EGYPT machine design:

IBR Metal Roofing Sheet Rolling Machine 7.5kw PPGI To EGYPT 2

Here are some parameters of metal roofing for your reference:





Roll

forming

machine



Feeding device

One set guiding roller
Steel plate welded platform to carry the sheet and feed into roll forming system
Feeding width is adjustable with the handle wheels



Rolling shaft



Roller

Shaft material:45# STEEL
Shaft diameter: 75 mm
Tempering treatment to prevent deformed and improve hardness
45# steel
Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life
Rolling station 20 rolling stations
Work speed 20 m/min
Machine structure Steel plate welded structure
Machine basic frame 350# H steel welded
Work power 5.5 kw
Rolling spacer Anti rusty treatment
Pull rod Anti rusty treatment
Transmission By Chains with cover
Noted: please fill the lube in case the chains getting dry





For making sure the machine quality, we use the strong base frame with slop.

Base frame of metal roofing

About the roller parts

Roller parts of metal roofing

Advantages: We make grooves to inset two nuts and cushion on the shaft. To avoid shafts loosing when machine works. Due to this design, shafts will be fixed more and more firm when it is working.



HERE IBR METAL ROOFING SHEET ROLLING MACHINE TO EGYPT WORKING VIDEO FOR YOUR REFERENCE:



As to the decoiler, you can choose hydraulic 5 ton 7 ton or others, if you do not need, we can give you the manual one free. As to the stacker, you can choose 6 meter or 12 meter, if you do not need, we can also give you manual one free.

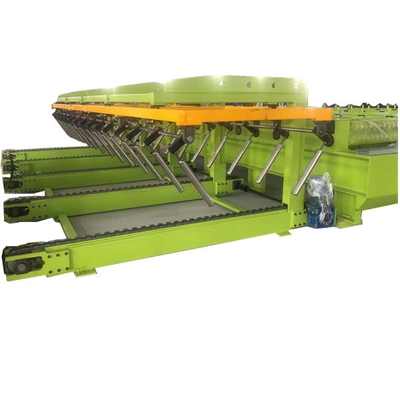

stacker



Here are more popular drawing profile for your reference:

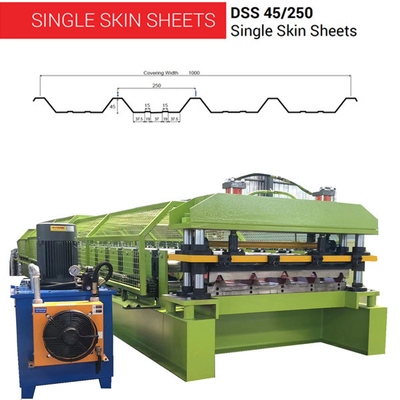

Popular drawing profile of Egypt

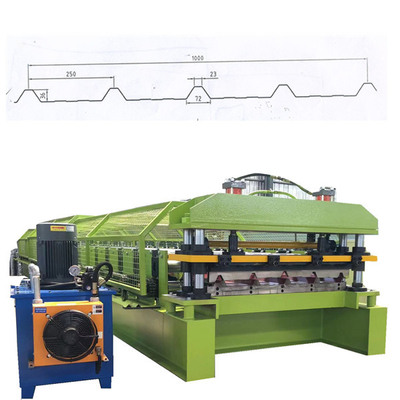

Popular drawing profile of Egypt
