Automatic Corrugated Roof Panel Roll Forming Machine With PLC Control System

China Automatic Corrugated Roof Panel Roll Forming Machine With PLC Control System supplier
Automatic Corrugated Roof Panel Roll Forming Machine With PLC Control System supplier Automatic Corrugated Roof Panel Roll Forming Machine With PLC Control System supplier Automatic Corrugated Roof Panel Roll Forming Machine With PLC Control System supplier

Large Image :  Automatic Corrugated Roof Panel Roll Forming Machine With PLC Control System

Product Details:

Place of Origin: HEBEI
Brand Name: JK
Certification: CE
Model Number: double layer

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: negotiated
Packaging Details: 1.Tighten to container with steel wire rope and welded angel iron. 2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic) 3.PLC control system and moter pump are packed with water-proof plastic coverage.
Delivery Time: within30 days after receiving deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 SETS PER MONTH
Contact Now
Detailed Product Description
Roof Tile And Wall Roll Forming Machine Tile Type: Colored Steel Dimension(L*W*H): 6500*1500*1500
Weight: About: 3.5 T Voltage: 380V.50HZ.3Phase
Roll Material:: 45# High Grade Steel Production Capacity:: 8-12M/Min
Control System: Totally Automatic PLC Cutting System:: Automatic Hydyaulic Cutting

Double Layer Roofing Sheet Roll Forming Machine Galvanized Trapezoidal Shape

Work Flow


Manual feeding→Feeding guide→roll forming →straightening→Track to cut off→Automatic material pallet


Machine Components

Decoiler-----------------------1set
Roll Forming Machine------1set
Cutting Device---------------1set
Hydraulic Pump--------------1set
Control System--------------1set
Output Table-----------------1set

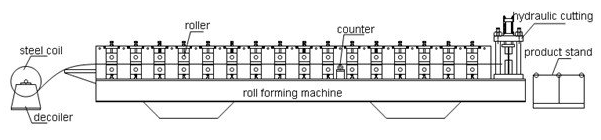

Working Flow
Double Layer Roofing Sheet Roll Forming Machine Galvanized Trapezoidal Shape
Decoiler--Feeding--Roll Forming--Cutting--Output Table

Main Parameter


Shaft MaterialNo.45 steel with treatment
Roller Station

up 16 steps
down 18 steps

Main Shaft Dimension70mm
Material Thickness0.3-0.8mm
Roller MaterialNo.45 steel with treatment
Working Speed8-12m/min
MaterialPPGI/GI


Decoiler

Capacity: 5000kg
Width: 1250mm
Type: Hydraulic Or Manual (Optional)
Inner Diameter: 450-550mm
Outter Diameter: 1500mm

Roll Forming Machine

Power: 3kw
Frame panel thickness: 14mm
Bottom Frame: 360H steel
Weight: 5t

Cutting Device

Type: Hydraulic
Driven; 1 inch chain
Power; 3kw
Cutting Blade: Cr12 steel
Hardness for Heat Treatment:HRC55 – 60°

Control System

Type: PLC Frequency Control System with touch screen
PLC Brand:Delta
Encoder Brand: Omron

Length Error: ±2mm
Language: English and Chinese

Hydraulic Pump

Power: 3kw
Oil Type: 46# hydraulic oil
Pump Brand: China Brand

Output Table

Length: 6m
It is simple and used to load finished product.


Packing Detall



1. one 40ft container for loading one set machine with manual decoiler;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.




Our Service


Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30days after receving advance payment.
Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.

If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
