Product Details:
|
| Type:: | Tile Forming Machine | Production Capacity:: | 8-20m/min |
|---|---|---|---|
| Dimension(L*W*H):: | 8m*1.5m*1.2m | Power(W):: | 5.5kw |
| Operation Style:: | Full Automatic | Control System:: | PLC Control |
| Equipment Base:: | 360H Steel Frame | After-sales Service Provided:: | Engineers Available To Service Machinery Overseas |
| High Light: | sheet roll forming machine,roofing sheet making machine |
||

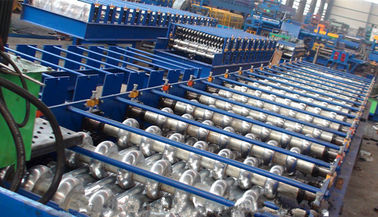

Building Material Corrugated Sheet Roll Forming Machine 13-16 Stations Roller
Product Application
This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type
roofing sheets.
The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.
|
TECHNICAL PARAMETERS FOR CORRUGATED PANEL ROLL FORMING MACHINE
|
|||
|
Serial Number
|
Item
|
Parameters
|
Remark
|
|
Applicable material
|
Type
|
GI/PPGI
|
|
|
Thickness
|
0.25-0.6MM
|
|
|
|
Yield strength(Mpa)
|
G245-G550
|
|
|
|
Main performance parameters
|
Forming speed(M/MIN)
|
12-20M/MIN
|
|
|
Machine size(L×W×H)
|
9*1.5*2
|
Refer to the machine
|
|
|
Power supply(KW)
|
7.5+3.0
|
Motor and Hydraulic Motor
|
|
|
MACHINE COMPONENTS FOR CORRUGATED PANEL ROLL FORMING MACHINE
|
|||
|
Name
|
Model/name
|
Quantity
|
Technical description
|
|
|
|
|
Capacity: Max. 5Ton,hydraulic control steel coil inner bore expanding, shrinkage and stop.
|
|
|
Material Guiding System
|
1 set
|
For feeding in a right position no Deviation.
|
|
Precutting Device
|
1 set
|
Prevent the profile being unbeautiful because of the rough material.
|
|
|
Main Roll Forming Machine
|
1 set
|
About 22 steps, motor driving and chain transmission. Wall plate structure.
|
|
|
3.Cutting system
|
Hydraulic Cutting Device
|
|
Precutting and postcutting both.
|
|
4.Hydraulic system
|
Hydraulic Station
|
1 set
|
Providing the power of cutting.
|
|
|
PLC Control System
|
|
PLC control system, encoder positioning and cut-to-length automatically, touch screen operating.
|
|
6.Racking system
|
Exit rack
|
3 PC
|
no power.
|
