Aluminum Galvanized Floor Deck Roll Forming Machine Width With Pre - Cutting

Aluminum Galvanized Floor Deck Roll Forming Machine Width With Pre - Cutting
Aluminum Galvanized Floor Deck Roll Forming Machine Width With Pre - Cutting Aluminum Galvanized Floor Deck Roll Forming Machine Width With Pre - Cutting

Large Image :  Aluminum Galvanized Floor Deck Roll Forming Machine Width With Pre - Cutting

Product Details:
Certification: ce
Model Number: JK 76-320-960
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: 1. 20/40 feet container 2.PVC film package 3. according to customer requirement
Delivery Time: 30 days after received the deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 sets per month

Aluminum Galvanized Floor Deck Roll Forming Machine Width With Pre - Cutting

Description
Type:: Tile Forming Machine Production Capacity:: 8-12m/min
Dimension(L*W*H):: 6800mm*800mm*1200mm Power(W):: 3KW-20.5KW
Roller Material:: 45#steel Chrome Plated Cutting Blade Material:: Cr12 Frequency Quenching
Control System:: PLC(imported Brand) Thickness:: 0.8-1.2mm
Warranty:: 12 Months
High Light:

iron sheet making machine

,

floor deck making machine

Aluminum Galvanized Floor Decking Roll Forming Machine Width With Pre - Cutting



material:

High Quality ZT688 720 Metal Floor Decking Roll Forming Machine

Processing material: colored steel plate, galvanized plate, or aluminum plate



Material thickness: 0.8---1.2mm



Material hardness: 195 mpa---350 mpa



Material width: 1250mm



Formed width: 914mm



Wavelength: 305 mm



Step height: 75mm



Step length: 150mm---380mm(adjustable)



Forming speed: 8-10m/min



Uncoiler

Usage:It is used to support the steel coil and uncoil it in a turnable way.

Passive uncoil pulled by roll forming system



Loading capacity: 5T



Uncoiling width: 1250mm



Inner diameter: 450-550mm



Entry Beach



Length of the main part:about 1800*1450*1500mm



Weight of main part: 8.5T



Voltage: 380V/50HZ 3Phase



Roller fixer: middle plate



Frame: 350H steel



Drive mode: chain



Material of rollers: 45#steel, surface hard chromium plating.



Material of shafts: 45#steel



Diameter of shafts: φ 90mm



Number of rollers: 28 rollers



Main power: 2*11kw



Material of mould:Cr12 quenched





Power supply:hydraulic power

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12 quenched

Power supply : hydraulic power

Components:It contains one set of blade, one hydraulic tank and one cutter machine.

Power:5.5kw





4. Our after-sale service:

Our products are widely used in various industrial factory ,beauty spot, holiday village building, hotel,exhibition ,easy steel building manufacturing ,and have features such as nice appearance and durable.

Within in one year if any parts go broken we will send new ones to replace for free,after the warranty period,we will help you repair the machine ,you only responsible for the labour and parts if the machine have some problems.

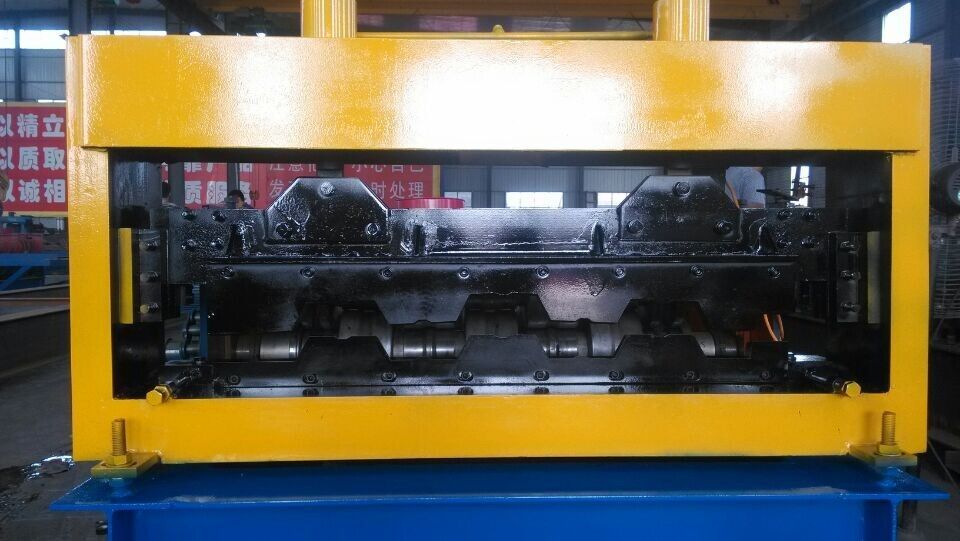

Aluminum Galvanized Floor Deck Roll Forming Machine Width With Pre - Cutting 1
